3. Unit information display

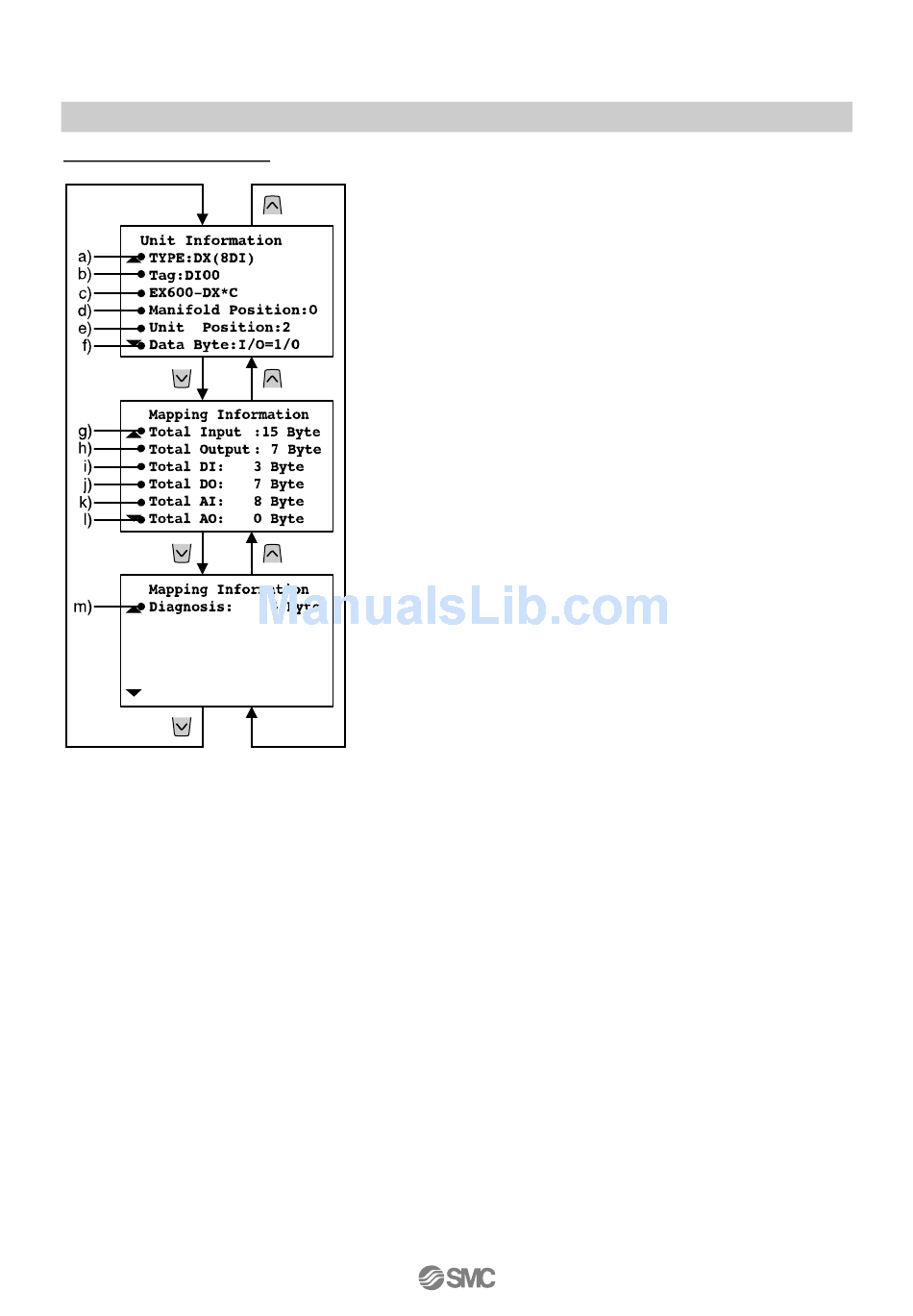

♦Explanation of screen
a) Displayed unit symbol (Refer to page 52)
b) Tag name (Refer to page 28)
c) Part number (Refer to page 52)
d) Manifold number (Refer to page 16)
e) Unit number (Refer to page 16)
f) Number of bytes that SI unit occupies (Input/Output)
g) Number of total input bytes
(Digital input + Analog input + Diagnostic data)
h) Number of total output bytes
(Digital output + Analog output)
i) Number of total digital input bytes
j) Number of total digital output bytes
k) Number of total analog input bytes
l) Number of total analog output bytes
m) Number of diagnostic information data bytes
