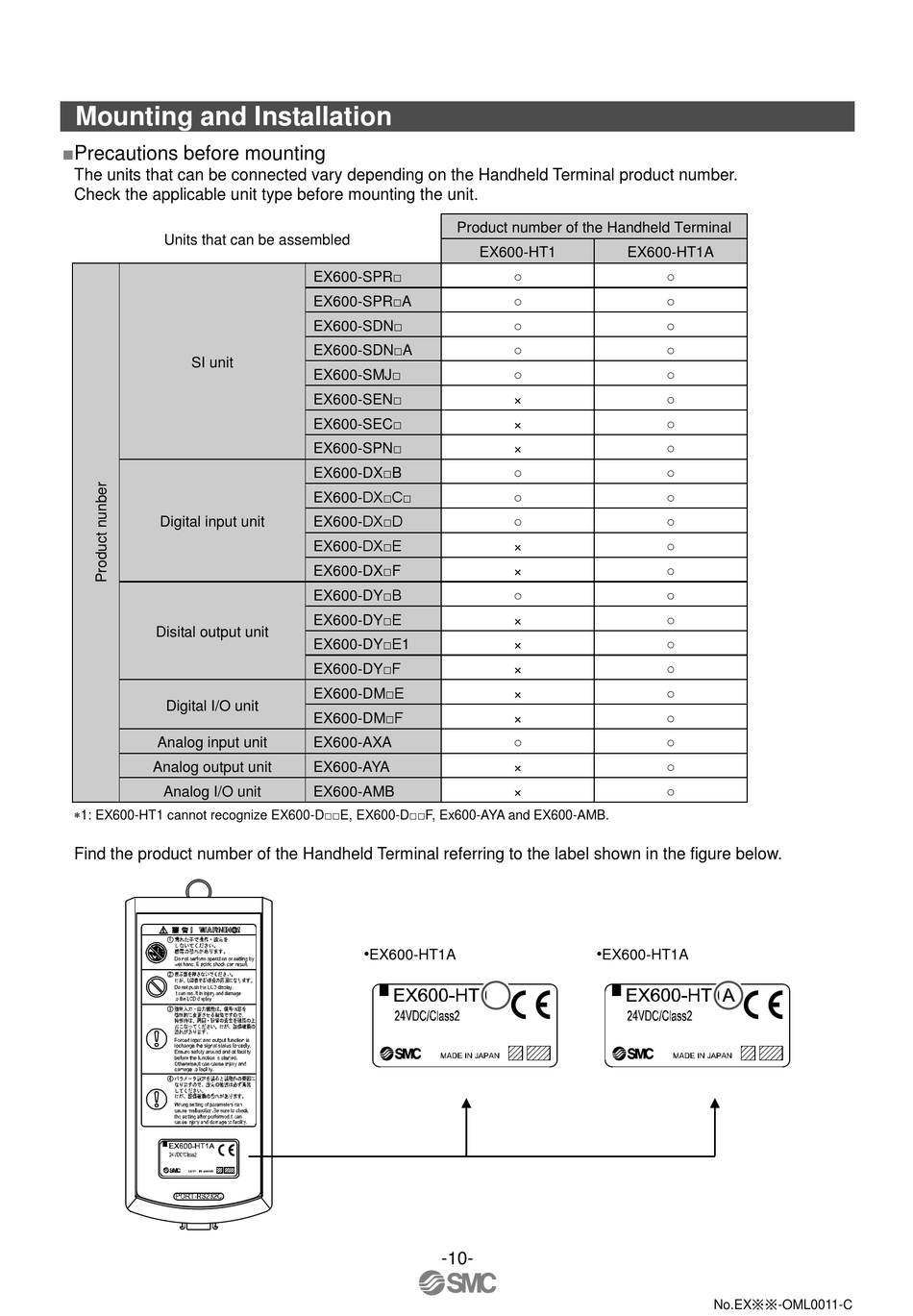

Mounting and Installation

■Precautions before mounting

The units that can be connected vary depending on the Handheld Terminal product number.
Check the applicable unit type before mounting the unit.
Units that can be assembled
SI unit
Digital input unit
Disital output unit
Digital I/O unit
Analog input unit
Analog output unit
Analog I/O unit
1: EX600-HT1 cannot recognize EX600-D□□E, EX600-D□□F, Ex600-AYA and EX600-AMB.
Find the product number of the Handheld Terminal referring to the label shown in the figure below.
Product number of the Handheld Terminal
EX600-HT1
EX600-SPR□
EX600-SPR□A
EX600-SDN□
EX600-SDN□A
EX600-SMJ□
EX600-SEN□
EX600-SEC□
EX600-SPN□
EX600-DX□B
EX600-DX□C□
EX600-DX□D
EX600-DX□E
EX600-DX□F
EX600-DY□B
EX600-DY□E
EX600-DY□E1
EX600-DY□F
EX600-DM□E
EX600-DM□F
EX600-AXA
EX600-AYA
EX600-AMB
•
EX600-HT1A
-10-
EX600-HT1A
○ ○
○ ○
○ ○
○ ○
○ ○
○
×
○
×
○
×
○ ○
○ ○
○ ○
○
×
○
×
○ ○
○
×
○
×
○
×
○
×
○
×
○ ○
○
×
○
×
•
EX600-HT1A
No.EX※※-OML0011-C
