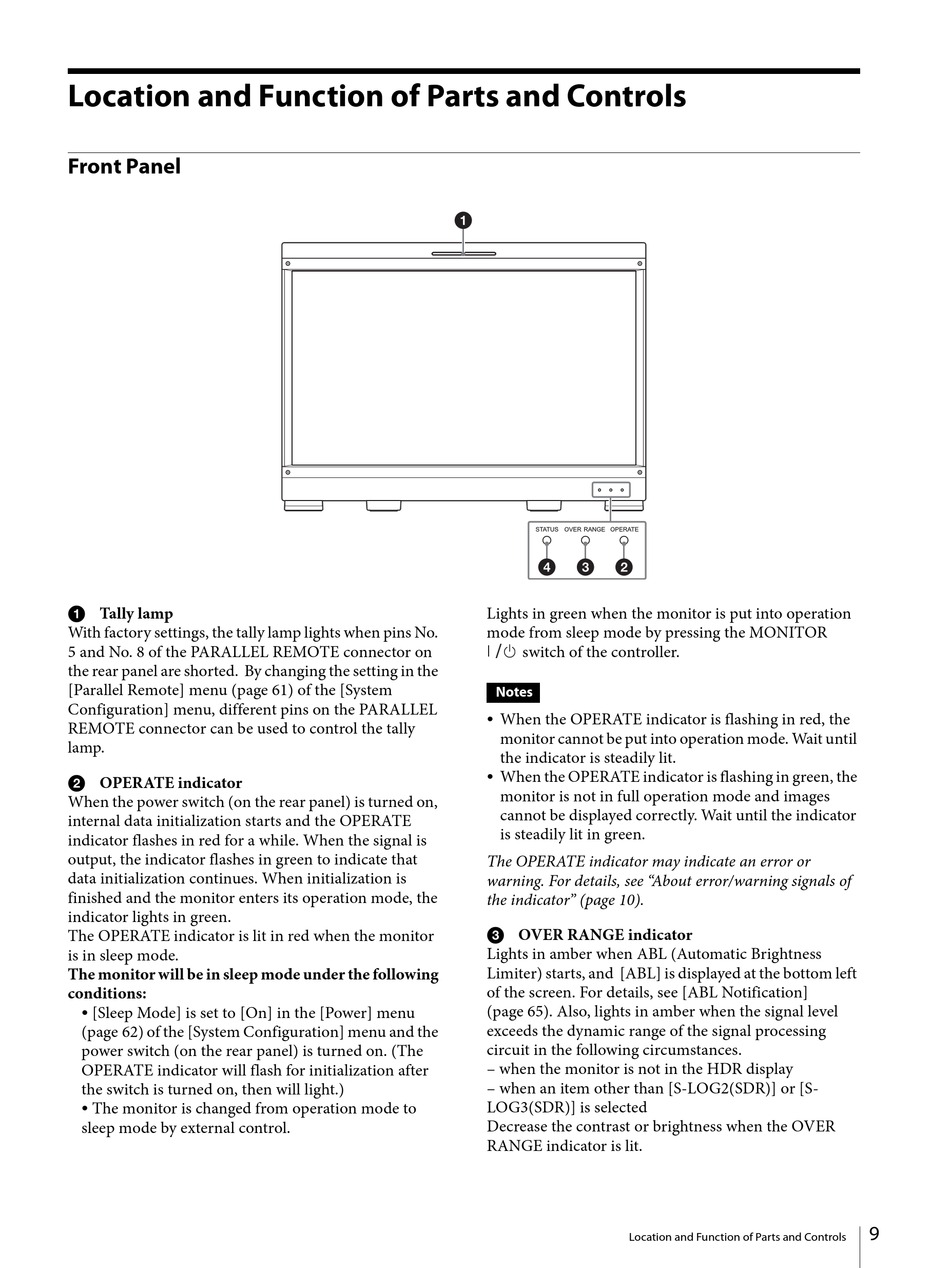

Location and Function of Parts and Controls

Front Panel

 Tally lamp
With factory settings, the tally lamp lights when pins No.
5 and No. 8 of the PARALLEL REMOTE connector on
the rear panel are shorted. By changing the setting in the
[Parallel Remote] menu (page 61) of the [System
Configuration] menu, different pins on the PARALLEL
REMOTE connector can be used to control the tally
lamp.
 OPERATE indicator
When the power switch (on the rear panel) is turned on,
internal data initialization starts and the OPERATE
indicator flashes in red for a while. When the signal is
output, the indicator flashes in green to indicate that
data initialization continues. When initialization is
finished and the monitor enters its operation mode, the
indicator lights in green.
The OPERATE indicator is lit in red when the monitor
is in sleep mode.
The monitor will be in sleep mode under the following
conditions:
[Sleep Mode] is set to [On] in the [Power] menu
(page 62) of the [System Configuration] menu and the
power switch (on the rear panel) is turned on. (The
OPERATE indicator will flash for initialization after
the switch is turned on, then will light.)
The monitor is changed from operation mode to
sleep mode by external control.
Lights in green when the monitor is put into operation
mode from sleep mode by pressing the MONITOR
switch of the controller.
Notes
When the OPERATE indicator is flashing in red, the
monitor cannot be put into operation mode. Wait until
the indicator is steadily lit.
When the OPERATE indicator is flashing in green, the
monitor is not in full operation mode and images
cannot be displayed correctly. Wait until the indicator
is steadily lit in green.
The OPERATE indicator may indicate an error or
warning. For details, see "About error/warning signals of
the indicator" (page 10).
 OVER RANGE indicator
Lights in amber when ABL (Automatic Brightness
Limiter) starts, and [ABL] is displayed at the bottom left
of the screen. For details, see [ABL Notification]
(page 65). Also, lights in amber when the signal level
exceeds the dynamic range of the signal processing
circuit in the following circumstances.
– when the monitor is not in the HDR display
– when an item other than [S-LOG2(SDR)] or [S-
LOG3(SDR)] is selected
Decrease the contrast or brightness when the OVER
RANGE indicator is lit.
Location and Function of Parts and Controls
9
