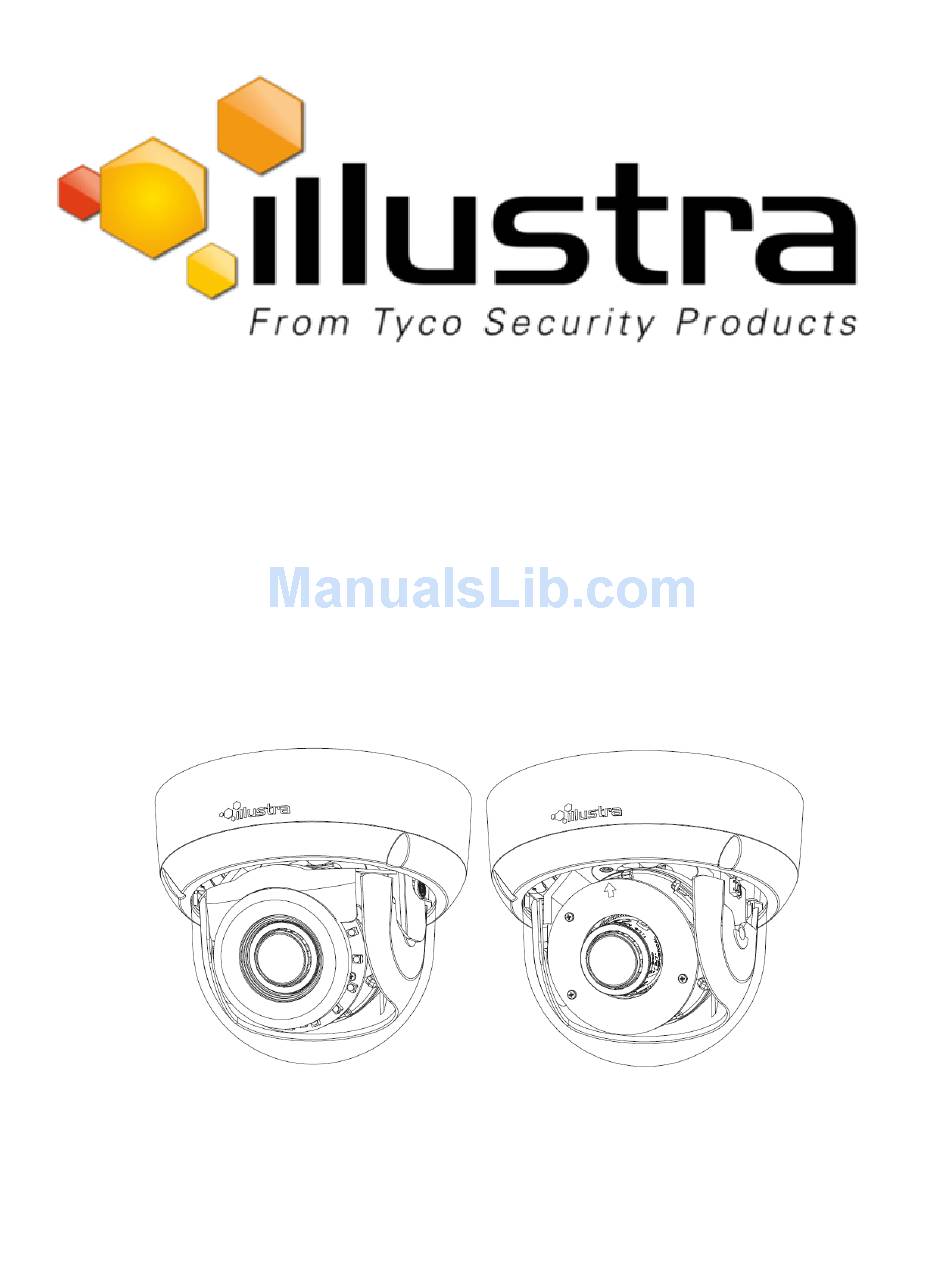

- Page 1 Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide...
- Page 2 Notice Please read this manual thoroughly and save it for future use before attempting to connect or operate this unit. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without notice. Copyright Under copyright laws, the contents of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine-readable form, in whole or in part, without...
-
Page 3: Table Of Contents
Table of Contents Illustra Flex Series 3MP Indoor Dome Camera Product features Product overview Installation Illustra Flex Series 3MP Outdoor Dome Camera Product features Product overview Installation System Requirements Network Connection Default IP Address DHCP Managing cameras with the Illustra Connect tool... - Page 4 Warning • These units operate at AC 24V/ PoE. • Installation and service should be performed only by qualified and experienced technicians and comply with all local codes and rules to maintain your warranty. • To reduce the risk of fire or electric shock, do not expose the product to rain or moisture. •...
-
Page 5: Illustra Flex Series 3Mp Indoor Dome Camera
Downloads and search for Bubble Handling and Cleaning Procedure. Product overview This chapter explains the features and installation of the Flex Indoor Dome camera. Product code and description of the camera is provided in the table below. Table 1 Product code and description of the Flex Indoor Dome camera... - Page 6 Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Figure 3 Physical dimensions of the Indoor Dome camera Figure 4 Pictorial index of the camera 8200-1456-02 E0...
-
Page 7: Loosen The Screw To Take Off Camera Housing
Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Table 5 Pictorial index descriptions Index number Description Camera bottom case Tilt adjustment bracket Loosen the screw to take off camera housing Camera housing Dome cover Figure 6 Pin definitions of the unit... - Page 8 Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Table 7 Interior button descriptions Interior button Description Resets to factory default by pressing and holding the button for five seconds. Reboots the unit. Analog out port. Power over Ethernet (PoE) port.
-
Page 9: Installation
Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Installation In the box Check everything in the packing box matches to the order form and the packing slip. In addition to this guide, items below are included in the packing box: •... -
Page 10: Camera Housing
Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Checking appearance When first unboxing, check whether if there is any visible damage to the appearance of the unit and its accessories. The protective materials used for the packaging should be able to protect the unit from most types of accidents during transportation. - Page 11 Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Connect the RJ-45 jack to a PoE compatible network device that supplied power through the Ethernet cable. Insert Audio cable and alarm cable to the unit, and connect the network cable to the RJ-45 terminal of a switch.
-
Page 12: Dome Cover
Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Limitation for three axes position: • Pan range: 375° CAUTION • Tilt range: 90° • Rotate range: Motorize Lens 356° Figure 11 Adjusting the position of the camera - End - Procedure 5 Locking the Camera Step Action... -
Page 13: Illustra Flex Series 3Mp Outdoor Dome Camera
Downloads and search for Bubble Handling and Cleaning Procedure. Product overview This chapter explains the features and installation of the Flex Outdoor Dome camera. Product code and description of the camera is provided in the table below. Table 12 Product code and description of the Flex Outdoor camera... - Page 14 Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Figure 14 Physical dimensions of the Outdoor Dome camera Figure 15 Pictorial index of the Outdoor Dome camera 8200-1456-02 E0...
- Page 15 Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Table 16 Pictorial index descriptions Index number Description Camera bottom case IR board Tilt adjustment bracket Camera top case Loosen the screw to take off camera housing Dome cover...
- Page 16 Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Table 18 Interior button descriptions Interior button Description Resets to factory default by pressing and holding the button for five seconds. Reboots the unit. Analog out port. Power over Ethernet (PoE) port.
-
Page 17: Installation
Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Installation In the box Check everything in the packing box matches to the order form and the packing slip. In addition to this guide, items below are included in the packing box. - Page 18 Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Checking appearance When first unboxing, check whether if there is any visible damage to the appearance of the unit and its accessories. The protective materials used for the packaging should be able to protect the unit from most types of accidents during transportation.
- Page 19 Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Connect the RJ-45 jack to a PoE compatible network device that supplies power through the Ethernet cable. Note:The power source needs to be NEC Class 2 or LPS. The PoE connection should be provided by a UL Listed product and the connections shall be made in accordance with Article 800 of the NEC or local regulations.
- Page 20 Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Figure 22 Mounting the camera with the junction box The mounting kit called out in Figure 22 on page 16 is not supplied with the unit. NOTE Keeping tilt angle over 25 degrees is recommended when IR-LED light is used. If tilt angel is below 25 degrees from the horizontal, the image would be flashed by the reflection of IR-LED light.
- Page 21 Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Figure 23 Adjusting the position of the camera For outdoor Dome camera series: NOTE Users can adjust zoom level and focus level using the Illustra Connect Web User Interface. - End - Procedure 11 Locking the Camera Step Action...
-
Page 22: System Requirements
Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide System Requirements The below table lists the minimum requirements to implement and operate Illustra Flex 3MP Indoor and Outdoor Dome cameras. Table 25 System Requirements System hardware Intel Pentium 4 2.4GHz or equivalent... -
Page 23: Network Connection
Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Network Connection Default IP Address Since this is a network-based unit, an IP address must be assigned at the very first bootup. The default IP address of the unit is 192.168.1.168 and sub mask is 255.255.255.0. -
Page 24: Dhcp
Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Procedure 13 Connecting from a computer Step Action Ensure the camera and your computer are in the same subnet. Check whether if the network is available between the unit and the computer by pinging the default IP address. -
Page 25: Managing Cameras With The Illustra Connect Tool
In addition to using the IE browser to access your camera, you can alternatively use the provided tool, Illustra Connect. Illustra Connect is a management tool designed to manage your network cameras on the LAN. It can: • help you find multiple network cameras •... - Page 26 Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Procedure 17 Connecting to the camera using the static IP address Step Action The camera attempts to obtain an IP Address from the DHCP Server. When no DHCP Server is available the camera is assigned a Static IP address of 192.168.1.168.
-
Page 27: Network Topology
Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Network Topology The Illustra Flex cameras deliver video images and audio in real-time using the Internet and Intranet. It is equipped with an Ethernet RJ-45 network interface. The following images illustrate the network topologies of the cameras. -
Page 28: Appendix A: Technical Specifications
Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Appendix A: Technical Specifications The table below lists technical specifications of the Flex 3MP Indoor and Outdoor Dome camera. General Features Model Type Indoor Mini-dome camera Outdoor Mini-Dome camera Model No. - Page 29 Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Aperture Range F/1.4(W) ~ F/2.7(T) F/1.4(W) ~ F/2.7(T) Focal Length 2.8-12 mm 2.8-12 mm Range Focal Means Motorized Motorized Focal Type Varifocal Varifocal Focus Type Motorized Motorized Auto Focus...
- Page 30 Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Dynamic Range True WDR True WDR Method Noise 2D and 3D NR Noise Reduction Reduction Audio Sampling Bits 16-BIT 16-BIT Input Type SE/Line/MIC SE/Line/MIC Input 20K/Attenuation = 0 dB...
- Page 31 Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Hungarian, Italian, Korean, Japanese, Japanese, Netherlands, Polish, Portuguese, Netherlands, Polish, Portuguese, Swedish, Turkish, Chinese Traditional, Chinese Swedish, Turkish, Chinese Traditional, Simplified. Chinese Simplified. Ethernet 10/100Base-T 10/100Base-T TCP/IP, IPv4, IPv6, TCP, UDP, HTTP,...
- Page 32 Illustra Flex 3MP Indoor and Outdoor Dome Cameras Quick Start Guide Indoor and Outdoor Dome camera resolutions Stream 1 Stream 2 Stream 3 (1920x1080) 1080p 16:9 (1024x576) PAL+ 16:9 (384x288) 4:3 (1664x936) 16:9 (640x360) nHD 16:9 (1280x720) 720p 16:9 (480x360) 480 4:3...
