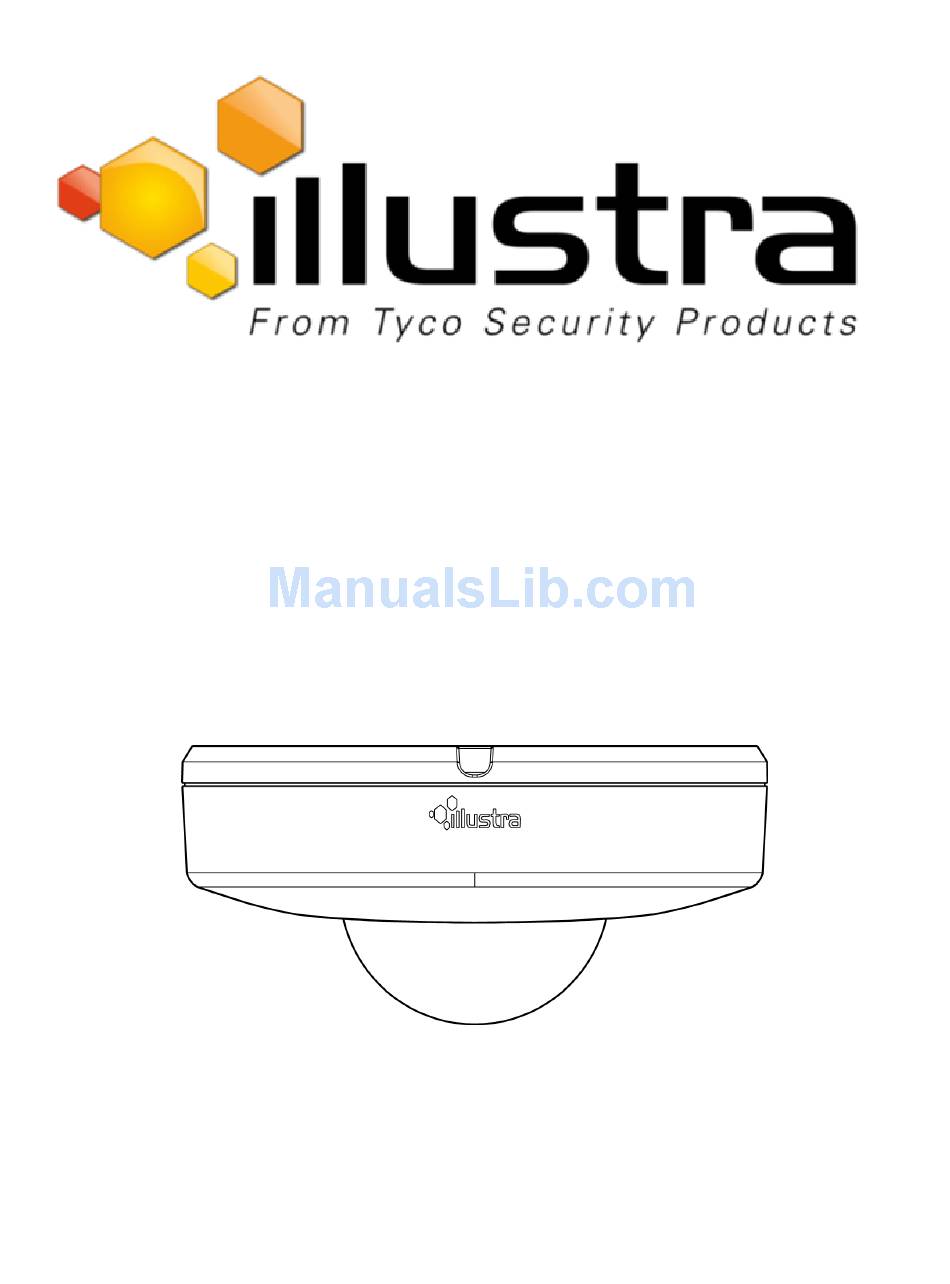

- Page 1 Illustra Flex 3MP Outdoor Compact Mini Dome Camera Quick Start Guide...
- Page 2 Notice Please read this manual thoroughly and save it for future use before attempting to connect or operate this unit. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without notice. Copyright Under copyright laws, the contents of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine-readable form, in whole or in part, without...
-
Page 3: Table Of Contents
Table of Contents Illustra Flex 3MP Outdoor Compact Mini Dome Camera Product features Product overview Installation System Requirements Network Connection Default IP Address DHCP Managing cameras with the Illustra Connect tool Network Topology Appendix A: Technical Specifications Appendix B: Stream Resolutions... - Page 4 Warning • These units operate at PoE. • Installation and service should be performed only by qualified and experienced technicians and comply with all local codes and rules to maintain your warranty. • To avoid damage to the unit, never connect more than one type of power supply (PoE IEEE802.3 Ethernet Class 0) at the same time.
-
Page 5: Illustra Flex 3Mp Outdoor Compact Mini Dome Camera
Table 1 Product code and description of the Compact Mini Dome camera Product Code Description IFS03CFOCWST Illustra Flex 3MP Compact Dome, 2.8mm, outdoor, vandal, clear, white, SDN, TWDR Figure 2 Physical dimensions of the Compact Mini Dome camera (mm) 8200-1456-06 B0... - Page 6 Illustra Flex 3MP Compact Mini Dome Quick Start Guide Figure 3 Physical dimensions of the Compact Mini Dome camera (mm) Figure 4 Pictorial index of the Compact Mini Dome camera 8200-1456-06 B0...
-
Page 7: Camera Top Case
Illustra Flex 3MP Compact Mini Dome Quick Start Guide Table 5 Pictorial index descriptions Index number Description Camera base Lens Unit Camera top case Screw casing (Loosen the screws to take off the top cover) Dome cover Figure 6 Interior view and buttons of the unit... -
Page 8: Installation
Illustra Flex 3MP Compact Mini Dome Quick Start Guide Table 7 Interior button descriptions Interior button Description Resets to factory default by pressing and holding the button for five seconds. Reboots the unit. Note:The connector cable of the Compact Mini Dome camera should be contained in a conduit... - Page 9 Illustra Flex 3MP Compact Mini Dome Quick Start Guide Procedure 1 Disassembling the Camera Step Action Remove the bungs from the camera base and remove the screws from the top of the camera with a safety screwdriver (4). Gently remove the top cover (3).
- Page 10 Illustra Flex 3MP Compact Mini Dome Quick Start Guide Ensure that the top cover safety wire is connected and securely fit the top cover. Figure 9 Mounting the camera Depending on the material of your mounting surface, you may require different screws and anchors than those as supplied.
- Page 11 Illustra Flex 3MP Compact Mini Dome Quick Start Guide Procedure 3 Adjusting the Position The unit has three axes for positioning, refer to Figure 10 on page 7. While monitoring, adjust the position as below. Step Action Pan Adjustment (A) For Wall Mount and Tilted Ceilings: Rotate the lens base (maximum 140°) until you are satisfied with the field of view.
- Page 12 Illustra Flex 3MP Compact Mini Dome Quick Start Guide Figure 11 Adjusting the position of the camera For Compact Mini Dome camera series: NOTE The zoom level and focus are manually set in the factory. - End - Procedure 4 Installing the desiccant Step Action...
-
Page 13: Dome Cover
Illustra Flex 3MP Compact Mini Dome Quick Start Guide Figure 12 Location for desiccant application - End - Procedure 5 Locking the Camera Step Action Use a soft, lint-free cloth to wipe the dome cover and remove fingerprints. Ensure that the top cover safety wire is connected and attach the inner liner and top cover. -
Page 14: System Requirements
Illustra Flex 3MP Compact Mini Dome Quick Start Guide System Requirements The below table lists the minimum requirements to implement and operate Illustra Flex 3MP Compact Mini Dome cameras. Table 13 System Requirements System hardware Intel Pentium 4 2.4GHz or equivalent... -
Page 15: Network Connection
Illustra Flex 3MP Compact Mini Dome Quick Start Guide Network Connection Default IP Address Since this is a network-based unit, an IP address must be assigned at the very first bootup. The default IP address of the unit is 192.168.1.168 and sub mask is 255.255.255.0. -
Page 16: Dhcp
Illustra Flex 3MP Compact Mini Dome Quick Start Guide Procedure 7 Connecting from a computer Step Action Ensure the camera and your computer are in the same subnet. Check whether if the network is available between the unit and the computer by pinging the default IP address. -
Page 17: Managing Cameras With The Illustra Connect Tool
In addition to using the IE browser to access your camera, you can alternatively use the provided tool, Illustra Connect. Illustra Connect is a management tool designed to manage your network cameras on the LAN. It can: • help you find multiple network cameras •... - Page 18 Illustra Flex 3MP Compact Mini Dome Quick Start Guide Procedure 11 Connecting to the camera using the static IP address Step Action The camera attempts to obtain an IP Address from the DHCP Server. When no DHCP Server is available the camera is assigned a Static IP address of 192.168.1.168.
-
Page 19: Network Topology
Illustra Flex 3MP Compact Mini Dome Quick Start Guide Network Topology The Compact Mini Dome camera delivers video images in real-time using the Internet and Intranet. It is equipped with an Ethernet RJ-45 network interface. The following images illustrate the network topologies of the cameras. -
Page 20: Appendix A: Technical Specifications
Illustra Flex 3MP Compact Mini Dome Quick Start Guide Appendix A: Technical Specifications The table below lists technical specifications of the Flex 3MP Compact Mini Dome camera. General Features Model Type Outdoor Compact Mini Dome Camera Model No. IFS03CFOCWST Camera Body Color... - Page 21 Illustra Flex 3MP Compact Mini Dome Quick Start Guide Focus Type Factory Focused Auto Focus Factory Focused IR Correction coated Day/Night Horizontal Angle of View 102ﾟ Vertical Angle of View 77ﾟ Format Illuminator Wavelength IR Distance Smart IR Adaptive IR...
- Page 22 Illustra Flex 3MP Compact Mini Dome Quick Start Guide Maximum Output None I/O Interfaces SD Card SDXC slot up to 128GB Alarm Inputs Auxiliary Outputs Video Output IP Connector RJ-45 IP66/IP67 pigtail LED Indicators 1 x Red LED(on board) Reset Buttons...
- Page 23 Illustra Flex 3MP Compact Mini Dome Quick Start Guide 1 minute poll rate SMTP - RFC5321 E-mail Authenticated SMTP - RFC4954 TLS - RFC5246 v1.2, HTTPS (HTTP over TLS) - RFC2818, WS-Security, Multi-level password Authentication and Security protection, IP address filtering, HTTPS encryp- tion, User access log, IEEE 802.1x, PEAP...
-
Page 24: Appendix B: Stream Resolutions
Appendix B: Stream Resolutions Compact Mini Dome Streaming Combinations Table 17 on page 20 and Table 18 on page 21 provide information for the stream resolutions of the Compact Mini Dome cameras herein. Table 17 Stream Set A (all resolution, codes and frame rate combinations of Stream 1, 2 and 3 are valid) Frame Frame Frame... - Page 25 Table 18 Stream Set B (all resolution, codes and frame rate combinations of Stream 1, 2 and 3 are valid) Frame Frame Frame Stream Stream Stream TWDR Codecs Rates (fps) Codecs Rates (fps) Codecs Rates (fps) Resolution Support Resolution Resolution Stream 1 Stream 2 Stream 3...
