Illustra IPR20-M12-OIA4 Quick Start Manual

Quick Start Guide
(8200-2088-01_E)
Illustra Pro Gen4 20MP and 32MP Outdoor Multisensor Dome camera
(P/N IPR20-M12-OIA4 & IPR32-M13-OIA4)
In the box
• 1 x Camera
• 1 x Rubber grommet
• 4 x Plastic screw anchors
• 1 x T20 Torx Wrench
• 4 x TP4 Self-tapping screws
• 1 x Side Cover
• 1 x RJ45 Insert Tool
• 2 x T20 Screw for side cover
• 1 x Mounting Template
• 1 x 12-pin Terminal connector for I/O function
• 1 x 2-pin Terminal block
• 1 x Printed Quick Start Guide
• 1 x Printed Regulatory Document
Installation tools
• 1 x T20 Torx wrench
• 1 x Drill
• 1 x Wire cutters

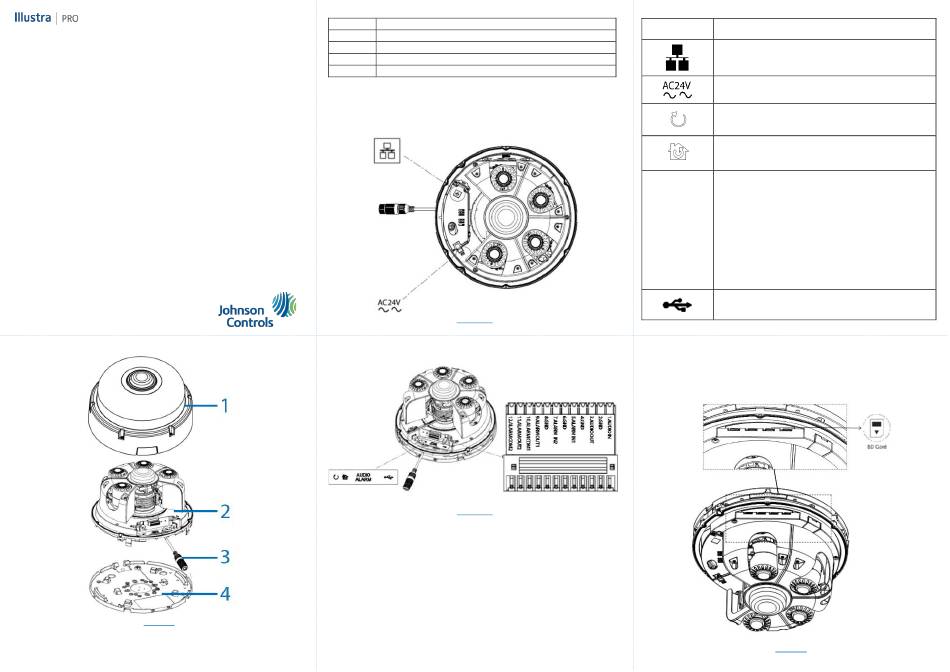

Figure 1: PG4 Multisensor Dome camera parts
Figure 1
Table 1: PG4 Multisensor Dome camera parts descriptions
Number
Security
1
2
3
4
Quick reference
• Default IP: 192.168.1.168 (DHCP enabled)
• Default Username / Password: admin / admin
• Power: POE 802.3bt Type 4 (90w) Class 8 (71.3W / 0.96A) or 24V AC (81W /
3.54A)
Figure 2a: Camera interior buttons / connections
Figure 2b: Camera interior buttons / connections
Note: The pre-fitted ethernet cable that comes with the camera can be removed if
the installation requires the use of an existing network cable, or if additional cables
are required. You must use the supplied rubber grommet with the cable to maintain
the IP rating.
Description
Camera Top Cover with Bubble
Camera Lens Module
Pre-Fitted RJ45 cable
Mount Plate
Figure 2a
Figure 2b
Table 2: Camera interior buttons / connections descriptions
Buttons /
Description
Connectors
PoE Ethernet port
AC24V Power connector
Reboots the camera (Press for 1 second)
Reset to Factory default but preserve IP Address (Hold for 5
seconds) / Reset to factory default (Hold for 20 seconds)
DI/DO (Digital Input/Output) ports are equipped for external
devices, e.g., smoke detector, siren, microphone.
Alarm In: Via "GND" and "Alarm In" ports, connect to
external device that can trigger alarm input signals.
Alarm Out: Via "COM" and "Alarm Out" ports, connect to
AUDIO
external device to be triggered through alarm output signals.
Audio In: Via "GND" and "Audio In" ports, connect to
ALARM
external device such as microphone that receives sound for
camera.
Audio Out: Via "GND" and "Audio Out" ports, connect to
device such as speaker to be triggered through alarm
output signals.
Micro USB port
Inserting or removing the SD card
Disassemble the camera as per steps 1 to 2 in 'Disassembling the
1.
camera' procedure and carefully insert or remove the micro-SD card
(Figure 3) into or from the camera.
Note: It is advised that you reboot the camera after inserting the micro-SD
card.
Figure 3
