Page 1: Quick Start Guide

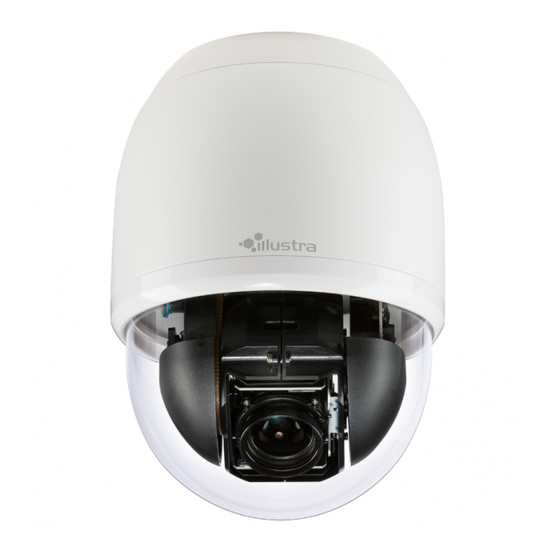

Illustra Flex 2MP PTZ 20x Indoor llustra Flex 2MP PTZ 20x Outdoor Quick Start Guide 8200-1486-01 B0... -
Page 2: Customer Service
Customer Service Thank you for using Illustra products. We support our products through an extensive worldwide network of dealers. The dealer through whom you originally purchased this product is your point of contact if you need service or support. Our dealers are empowered to provide the very best in customer service and support. - Page 3 Safety Notice The recessed indoor camera models are rated as suitable for use in environmental air handling spaces, except inside air ducts or furnace plenums. CAUTION: Risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. ESD Precautions: With the covers removed during installation and allignment this product is sensitive to electrostatic discharge.
-
Page 4: Table Of Contents
Illustra Connect Key functions of Illustra Connect Discovering the Illustra Camera lllustra Connect Configuring the Illustra Camera using a Static IP Address Physical Reset of the Camera Resetting the Camera to Factory Default Settings Using the Reset Button Technical Specifications... - Page 5 Network Name Resolution Email Authentication and Security Firewall Discovery UPnP Discovery Illustra API Version ONVIF Video and Control Interface Interface Technical Specifications ONVIF Functions Supported microSD Card Environmental Power PoE+ Regulatory Compliance Appendix A: Camera Defaults for PTZ Flex Camera...
-
Page 6: Product Features
Product Features Features • Mega pixel HD 1080p Resolution 30fps, 20x Optical zoom with 10x Digital Zoom • Supports three independently configurable streams • Unicast and Multicast Streaming capability • Motion detection analytics & metadata event generation • Supports setup of Privacy Zones •... -
Page 7: Dimensions
Dimensions Figure 1 Indoor Model Figure 2 Outdoor Model Illustra Flex 2MP PTZ Quick Start Guide... -
Page 8: What's In The Box
CD containing User Manual and Quick Start Guide Illustra Connect discovery tool Figure 3 Indoor Model The package should also contain the following items: Security Torx Driver (x1), M3 security screw for trim ring (x1), Audio Terminal Block (x1), AC Terminal Block (x1),... - Page 9 M3 Standard Screw for Trim Ring (x2), M3 Standard Screw for Trim Ring (x2), M5 Standard Screw (x2), Audio Terminal Block (x1), AC Terminal Block (x1), IO Terminal Block (x1), NPT Outdoor Pendant Cap (x1), Regulatory document (x1). Illustra Flex 2MP PTZ Quick Start Guide...
-
Page 10: Mounting The Camera
Mounting the Camera Select the type of mounting required and refer to the relevant procedure. Use the mounting template provided below to guide you. Mounting the camera using the Hard Ceiling Mount Figure 5 Hard Ceiling Mount Installation Template Note: •... -
Page 11: Mounting The Camera Using The Hard Ceiling Mount
After installing the camera on the hard ceiling mount, put the dome cover back on. Then fasten the screw on the side of the dome cover. - End - Illustra Flex 2MP PTZ Quick Start Guide... -
Page 12: Mounting The Camera Using The Npt Pendant Cap
After installing the camera on the NPT pendant cap, put the dome cover back on. Then fasten the screw on the side of the dome cover. Note: The Illustra Flex PTZ outdoor adaptor (IFPTZORECADTR) may be used for mounting an outdoor PTZ camera into a recessed mount (IFPTZWRECMT). - End -... -
Page 13: Connecting The Camera
Insert the microSD card into the card slot to store videos and snapshots. Note: If you are using a switch, note that the switch will need to support 60 watt PoE+ to power the outdoor model of the camera. Illustra Flex 2MP PTZ Quick Start Guide... -
Page 14: Powering The Camera
Powering the Camera To power up the camera, connect an AC 24V power adaptor to the power connector of the camera and the power outlet. Refer to the diagram and the pin definition table below for connection. Alternatively, users can use an Ethernet cable and connect it to the RJ-45 connector of the camera and an IEEE 802.3 at 60W PoE+ switch. -
Page 15: Alarm I/O Connection
Alarm In 4 Alarm In 3 Alarm In 2 Alarm In 1 Audio I/O Connection Refer to the diagram and the pin definition table below for audio I/0 connection. Definition Audio Out Audio In Illustra Flex 2MP PTZ Quick Start Guide... -
Page 16: Accessing The Camera For The First Time
IP addresses, or naming cameras without seeing where they are pointed, often results in longer installations. Illustra Connect eliminates all of these issues with a unique feature set that includes a one-touch IP conflict resolver and snapshot tool . Simply bring up all of the cameras out of the box, enter the IP range provided by the customer's IT department and click OK. -
Page 17: Discovering The Illustra Camera
The following information states how to install and access the camera. lllustra Connect The following information states how to install and access the camera on your network using the Illustra Connect discovery tool. Illustra Connect enables automatic discovery of compliant devices on IP networks and is the recommended method for installation and detection of the camera on the network. -
Page 18: Configuring The Illustra Camera Using A Static Ip Address
• We recommend that once you are logged into the Web Configuration pages you change the Static IP Address of the camera so that conflicts can be avoided when using the same Static IP Address to setup additional cameras. • In a situation where IP address conflicts arise, Illustra Connect can be used to discover the device. -
Page 19: Physical Reset Of The Camera
Physical Reset of the Camera It is possible to perform a physical reset to factory defaults using the reset button located on the underside of the camera. Resetting the Camera to Factory Default Settings Using the Reset Button The reset button can be used to restore the camera to the factory default settings. Note: It is not possible to retain network settings, presets, patterns or sequences when using this procedure. -
Page 20: Technical Specifications
Illustra Flex 2MP 20x PTZ, oudoor, white, TDN, WDR IFS02P5OCWTY Please refer to the Illustra Cameras website (www.illustracameras.com) to ensure that you have the most current version of this Configuration and User Guide. Release Notes are also available on the website for each software release to document any known limitations not covered in this user guide. -
Page 21: Video Compression
GOP Length 1-255 Rate Control CVBR Frame Skip Slow shutter mode Bit Rate (CBR) Selectable 64 - 20480Kbps Quality (VBR and CVBR) Highest, High, Medium, Low, Lowest. Constrained Variable Bit Rate Selectable 64-20480Kbps (CVBR) Illustra Flex 2MP PTZ Quick Start Guide... -
Page 22: Resolution
(384x216) 16:9 Stream 1 & 2 can be H264 or MJPEG Stream 3 is always MJPEG and can be used simultaneously at selected resolution forSnapshot for Illustra Connect and ONVIF A further stream is supplied by the camera under analogue video BNC output - which is enabled by default. Its availability can be managed via the web GUI. -
Page 23: Base Protocol And Underlying Layers
This option is not user configurable. The cameras hostname matches the configurable parameter “camera name” on the web GUI. Any DHCP request will contain the cameras hostname for use of the DHCP server to forward to an appropriate DNS server. Illustra Flex 2MP PTZ Quick Start Guide... -
Page 24: Network Name Resolution
Network Name Resolution The camera uses DNS protocol to resolve network names. DNS server address will be acquired via DHCP or manually set for static IP configuration. Camera configuration supports symbolic names for all remote end-points (except DNS servers) but in this mode will depend on a working and correctly configured remote DNS server. Email The camera can send email alerts via SMTP to one specified mailbox using a specified SMTP server. -
Page 25: Illustra Api Version
WSDL Web Services Specification DPWS Web Services Tool Kit WS4D Web Services Protocol SOAP Message Format Discovery WS-Discovery Security WS-Security Video Transport RTP/RTSP Audio Transport RTP/RTSP WS-Eventing Event Handling (alarms) WS-Base Notification WS-Topics Illustra Flex 2MP PTZ Quick Start Guide... -
Page 26: Onvif Functions Supported
Category Details Service Connection WS-Addressing Security Permissions WS-Policy Data Object Exchange WS-Transfer Specification ONVIF Functions Supported The following ONVIF functions are supported on the camera: • Quality priority and maximum AGC settings adjustable via user GUI, IAP13, or and ONVIF •... -
Page 27: Power
If you are using a switch, note that the switch will need to support 60 watt PoE+ to power the outdoor model of the camera. The indoor camera requires the use of 30 watt PoE. Regulatory Compliance The Illustra Flex PTZ Camera meets the following regulatory requirements: Category Details. USA (FCC): CFR 47 Part 15... -
Page 28: Appendix A: Camera Defaults For Ptz Flex Camera
Appendix A: Camera Defaults for PTZ Flex Camera Image Settings Codec H.264 Resolution 1920X1080 max Frame Rate 25 fps max GOP Length 25 fps Primary Stream Rate Control CVBR High Bit Rate 8192 Kbps Max Bit Rate (CVBR) 8192 Kbps Image quality (QP Settings) High Codec... - Page 29 SNMP Port # SNMP TRAPS Port # Enabled SMTP Server Requires Authorization Disabled SMTP Server IP Address 0.0.0.0 Server Port User Name Null SMTP User Authentication Password Null Sender Null Receiver Null CIFS Enabled Illustra Flex 2MP PTZ Quick Start Guide...
- Page 30 Network Settings Network Path Null Domain Null Username Null Password Null NTP Server IP Address pool.ntp.org Time Zone GMT-5:00 Eastern Time (US & Canada) Date and Time Date and Time Manual rtsp://CAMERAIP/videoStreamId=1&audioStreamID=1 Primary Video Stream Port RTSP Secondary Video Stream Port rtsp://CAMERAIP/VideoStreamId=2&audioStreamId=1 Tertiary Video Stream Port rtsp://CAMERAIP//videoStreamId=3&audioStreamId=1...
- Page 31 Picture Settings Brightness Picture Adjustment Sharpness Saturation Enabled Auto Mode Max Gain 24dB P-Iris Max Exposure 1/30s Exposure Manual Mode Gain Iris PTZ Settings Left Scan Limits Right Flip Automatic Flip Illustra Flex 2MP PTZ Quick Start Guide...
