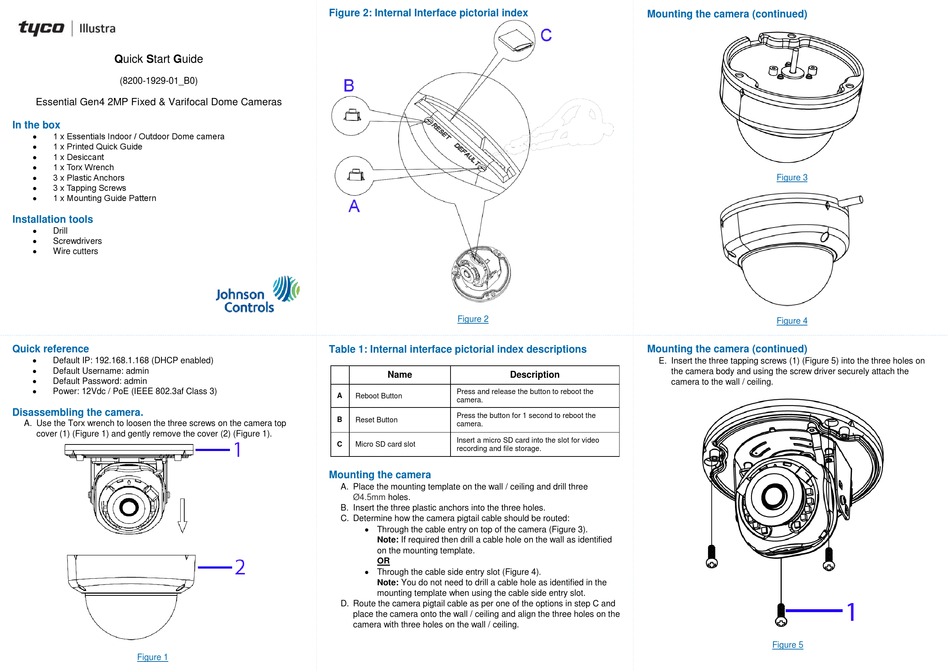

Illustra Essential Gen4 Quick Start Manual

Quick Start Guide
(8200-1929-01_B0)
Essential Gen4 2MP Fixed & Varifocal Dome Cameras
In the box

1 x Essentials Indoor / Outdoor Dome camera

1 x Printed Quick Guide

1 x Desiccant

1 x Torx Wrench
 3 x Plastic Anchors

3 x Tapping Screws

1 x Mounting Guide Pattern
Installation tools

Drill

Screwdrivers

Wire cutters
Quick reference

Default IP: 192.168.1.168 (DHCP enabled)

Default Username: admin

Default Password: admin

Power: 12Vdc / PoE (IEEE 802.3af Class 3)
Disassembling the camera.
A. Use the Torx wrench to loosen the three screws on the camera top
cover (1) (Figure 1) and gently remove the cover (2) (Figure 1).
Figure 1
Figure 2: Internal Interface pictorial index
Security
Table 1: Internal interface pictorial index descriptions
Name
A
Reboot Button
B
Reset Button
C Micro SD card slot
Mounting the camera
A. Place the mounting template on the wall / ceiling and drill three
Ø4.5mm holes.
B. Insert the three plastic anchors into the three holes.
C. Determine how the camera pigtail cable should be routed:
 Through the cable entry on top of the camera (Figure 3).
Note: If required then drill a cable hole on the wall as identified
on the mounting template.
OR
 Through the cable side entry slot (Figure 4).
Note: You do not need to drill a cable hole as identified in the
mounting template when using the cable side entry slot.
D. Route the camera pigtail cable as per one of the options in step C and
place the camera onto the wall / ceiling and align the three holes on the
camera with three holes on the wall / ceiling.
Figure 2
Description
Press and release the button to reboot the
camera.
Press the button for 1 second to reboot the
camera.
Insert a micro SD card into the slot for video
recording and file storage.
Mounting the camera (continued)
Figure 3
Figure 4
Mounting the camera (continued)
E. Insert the three tapping screws (1) (Figure 5) into the three holes on
the camera body and using the screw driver securely attach the
camera to the wall / ceiling.
Figure 5
