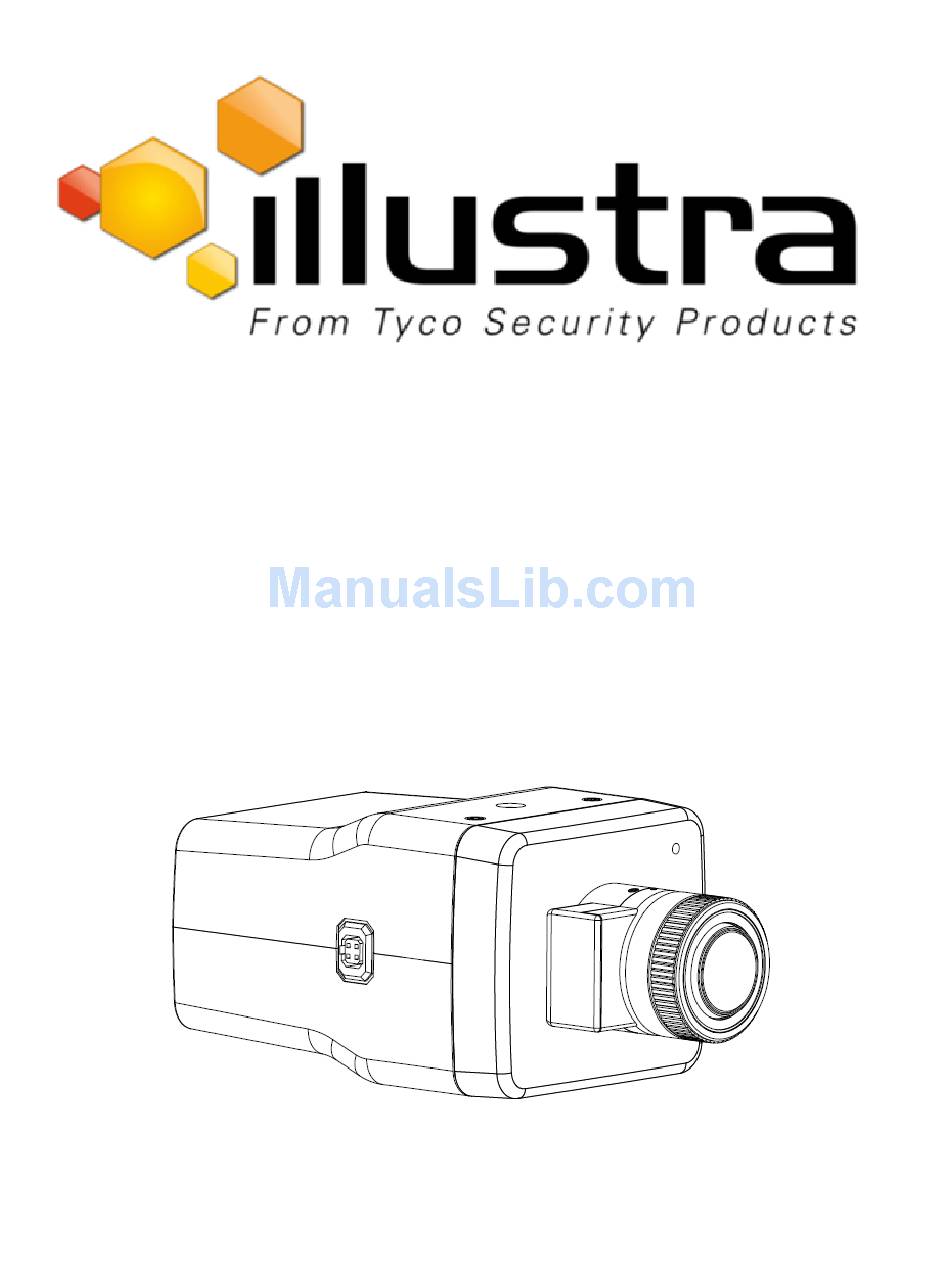

- Page 1 Illustra Flex Series 3MP Indoor Box Camera Quick Start Guide...
- Page 2 FL 33487 U.S.A. Customer Service Thank you for using Illustra products. We support our products through an extensive worldwide network of dealers. The dealer through whom you originally purchased this product is your point of contact if you need service or support. Our dealers are empowered to provide the very best in customer service and support.
-
Page 3: Table Of Contents
Table of Contents Illustra Flex 3MP Indoor Box Camera Product Features Product overview Installation System Requirements Network Connection Default IP Address DHCP Managing cameras with the Illustra Connect tool Network Topology Appendix A: Technical Specifications... - Page 4 Warning • This unit operates at DC 12V/ AC 24V/ PoE. • Installation and service should be performed only by qualified and experienced technicians and comply with all local codes and rules to maintain your warranty. • To reduce the risk of fire or electric shock, do not expose the product to rain or moisture. •...
-
Page 5: Illustra Flex 3Mp Indoor Box Camera
8200-1174-01 Bubble Clearing Procedure Application Note. Go to http://www.illustracameras.com/Products/illustra-flex-minidomes.aspx From the Products page, select Illustra Flex Mini-Domes, select Documents, select Application Notes, and select Bubble Handling and Cleaning Procedures. Product overview This chapter explains the features and installation of the Flex Indoor Box camera. Product code and description of the camera is provided in the table below. -
Page 6: Camera Connectors
Illustra Flex 3MP Indoor Box Quick Start Guide Camera connectors Figure 3 on page 2 and "Connector descriptions" describe the connectors of the camera and their designations. Figure 3 Camera connectors 8200-1456-04 D0... - Page 7 Illustra Flex 3MP Indoor Box Quick Start Guide Table 4 Connector descriptions Inde Name Description RJ-45 Ethernet To insert the RJ-45 cable for network connection as well as Power over Connector/PoE Ethernet (PoE) AC/DC To use AC/DC power. Video Out Connection Analog out.
-
Page 8: Installation
Illustra Flex 3MP Indoor Box Quick Start Guide Icon Description Audio input Audio output Installation In the box Check everything in the box matches the order form and the packing slip. In addition to his manual, the items below are included in the box. - Page 9 Illustra Flex 3MP Indoor Box Quick Start Guide Insert the audio cable and alarm cable to the unit, and connect the network cable to the RJ- 45 terminal of a switch. Note:The power source needs to be NEC Class 2 or LPS. The PoE connection should be provided by a UL Listed product and the connections shall be made in accordance with Article 800 of the NEC or local regulations.
-
Page 10: System Requirements
Illustra Flex 3MP Indoor Box Quick Start Guide System Requirements The table below lists the minimum requirements to implement and operate an Illustra Flex 3MP Box Camera. Table 7 System Requirements System Hardware Intel Pentium 4 2.4GHz or equivalent 1 GB or above... -
Page 11: Network Connection
Illustra Flex 3MP Indoor Box Quick Start Guide Network Connection Default IP Address Since this is a network-based unit, an IP address must be assigned at the very first bootup. The default IP address of the unit is 192.168.1.168 and sub mask is 255.255.255.0. -
Page 12: Dhcp
Illustra Flex 3MP Indoor Box Quick Start Guide Procedure 3 Connecting from a computer Step Action Ensure the camera and your computer are in the same subnet. Check whether if the network is available between the unit and the computer by pinging the default IP address. -
Page 13: Managing Cameras With The Illustra Connect Tool
In addition to using the IE browser to access your camera, you can alternatively use the provided tool, Illustra Connect. Illustra Connect is a management tool designed to manage your network cameras on the LAN. It can: • help you find multiple network cameras •... - Page 14 Illustra Flex 3MP Indoor Box Quick Start Guide Procedure 7 Connecting to the camera using the static IP address Step Action The camera attempts to obtain an IP Address from the DHCP Server. When no DHCP Server is available the camera is assigned a Static IP address of 192.168.1.168.
-
Page 15: Network Topology
Illustra Flex 3MP Indoor Box Quick Start Guide Network Topology The Illustra Flex cameras deliver video images and audio in real-time using the Internet and Intranet. It is equipped with an Ethernet RJ-45 network interface. The following images illustrate the network topology of the cameras. -
Page 16: Appendix A: Technical Specifications
Illustra Flex 3MP Indoor Box Quick Start Guide Appendix A: Technical Specifications The table below lists technical specifications of the Flex 3MP Indoor Box camera. General Features Model Type Indoor Box Camera Model No. IFS03XNANWTT Camera Body Color White Vandal Resistant Rating... - Page 17 Illustra Flex 3MP Indoor Box Quick Start Guide Audio Sampling Bits 16-BIT Input Type SE/Line/MIC Input Impedance 20K/Attenuation = 0 dB Maximum Input Level 2Vp-p Input connector Terminal Block Output Type Impedance Hi impedance Maximum Output 2Vp-p I/O Interfaces SD Card...
- Page 18 Illustra Flex 3MP Indoor Box Quick Start Guide TCP - RFC973 Transport Layer UDP - RFC768 HTTP/HTTPS - RFC2616 Data Transmission FTP - RFC959 SFTP DHCP - RFC2131 Zeroconf - RFC3927 Static IP Network Address Configuration address LLDP NTP - RFC1305...
