8.2.3 Copy Actual Transformer

Imagine you are a manufacturer of transformers or you are doing service and support. In
both cases, you will often check identical objects. In this case we recommend you to use the
"Copy Actual Transformer" option.
After tapping this button, TR-MARK III will copy the actual transformer basics, or lets say
those things which don not change on transformers of the same type. In other words, a new
transformer is created with the same number of winding systems, taps, winding types, and so
on.
You will automatically be asked, if you would like to save the actual measurement if you did
not yet do so. Afterwards you have to enter a new transformer name, serial number and if
necessary new primary and secondary voltage. Or let's say those things that change if you
produce a further transformer of the same type.

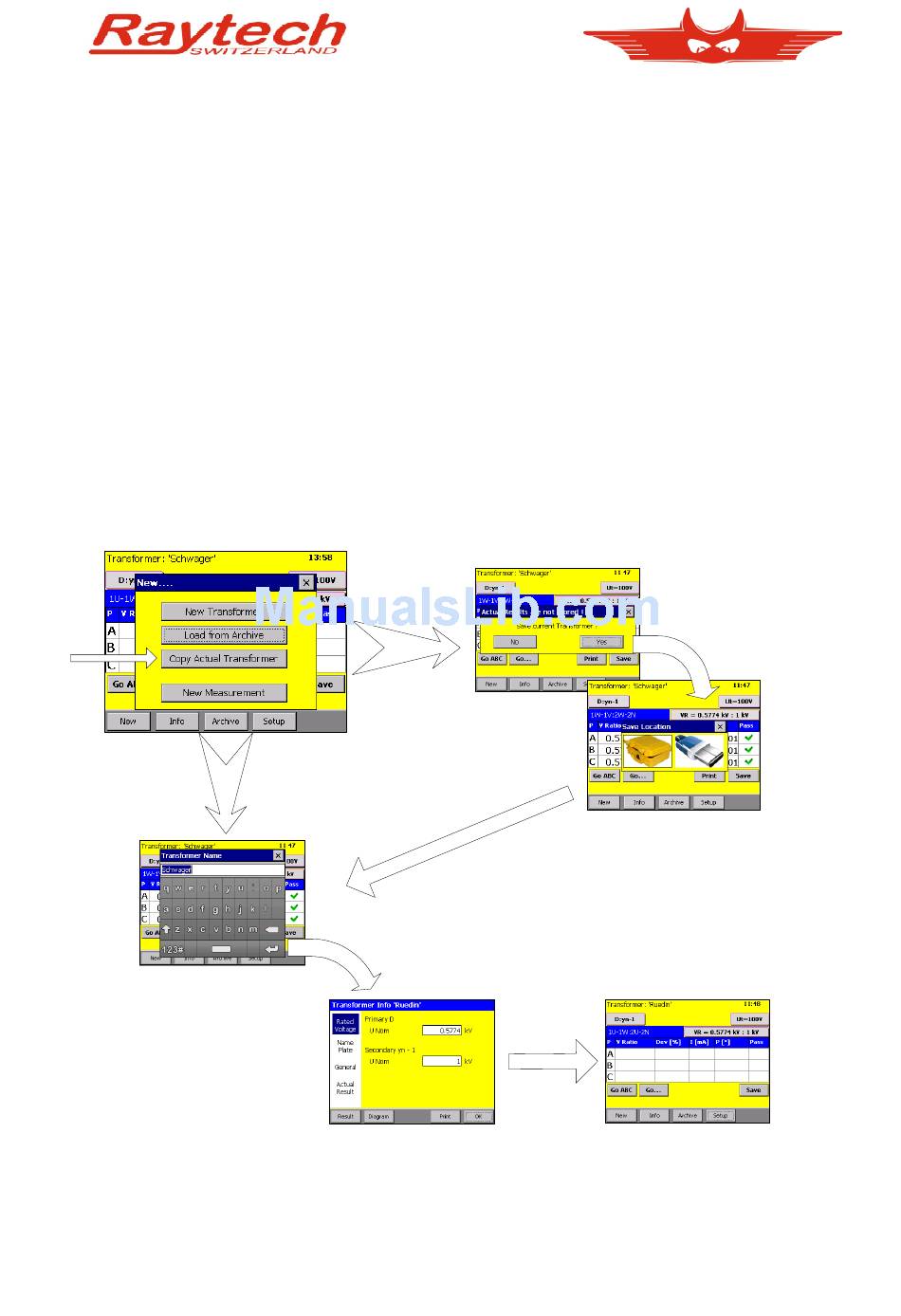

If you are still a bit confused about it, have a look to the following screens and graphics
including MK III screens.
Enter Transformer Name...
... and Serial Number
For new Transformer
90100.1.02 Instruction Manual TR-MARK III
If actual Meas. or
Transf. not safed
yet...
If actual Meas. Or
Transf is safed..
Change Voltages if necessary
Would you like to safe?
Where would you like to safe it?
Get your new Transformer
