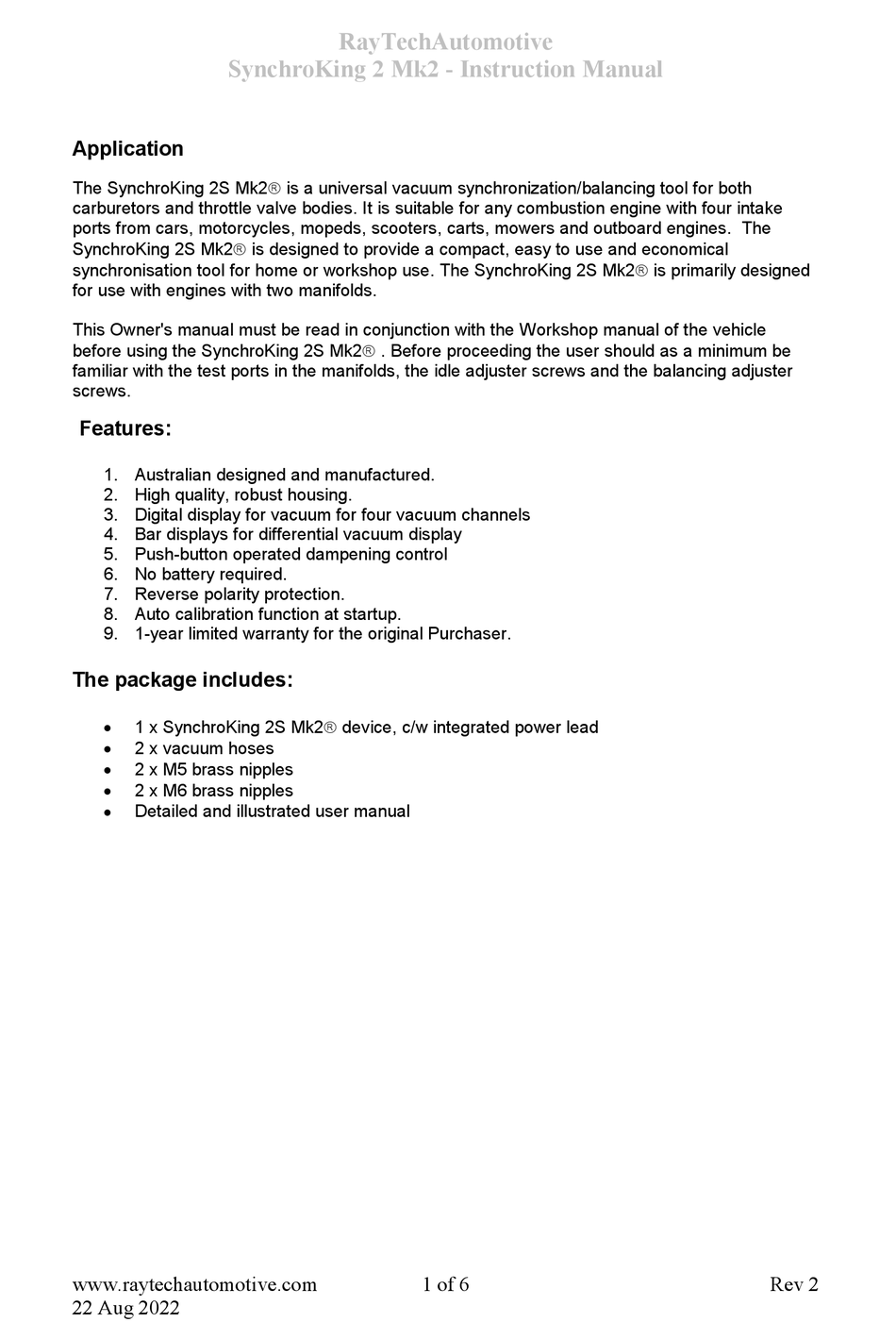

SynchroKing 2 Mk2 - Instruction Manual

Application

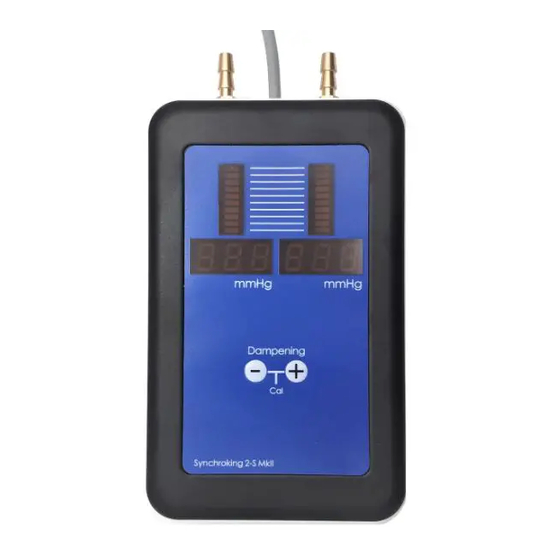

The SynchroKing 2S Mk2 is a universal vacuum synchronization/balancing tool for both
carburetors and throttle valve bodies. It is suitable for any combustion engine with four intake
ports from cars, motorcycles, mopeds, scooters, carts, mowers and outboard engines. The
SynchroKing 2S Mk2 is designed to provide a compact, easy to use and economical
synchronisation tool for home or workshop use. The SynchroKing 2S Mk2 is primarily designed
for use with engines with two manifolds.
This Owner's manual must be read in conjunction with the Workshop manual of the vehicle
before using the SynchroKing 2S Mk2 . Before proceeding the user should as a minimum be
familiar with the test ports in the manifolds, the idle adjuster screws and the balancing adjuster
screws.

Features:

1. Australian designed and manufactured.
2. High quality, robust housing.
3. Digital display for vacuum for four vacuum channels
4. Bar displays for differential vacuum display
5. Push-button operated dampening control
6. No battery required.
7. Reverse polarity protection.
8. Auto calibration function at startup.
9. 1-year limited warranty for the original Purchaser.

The package includes:


1 x SynchroKing 2S Mk2 device, c/w integrated power lead

2 x vacuum hoses

2 x M5 brass nipples

2 x M6 brass nipples

Detailed and illustrated user manual
www.raytechautomotive.com
22 Aug 2022
RayTechAutomotive
1 of 6 Rev 2
