8.1 Main Screen

8.1.1 Operating on a simple screen, no Transformer Data entered

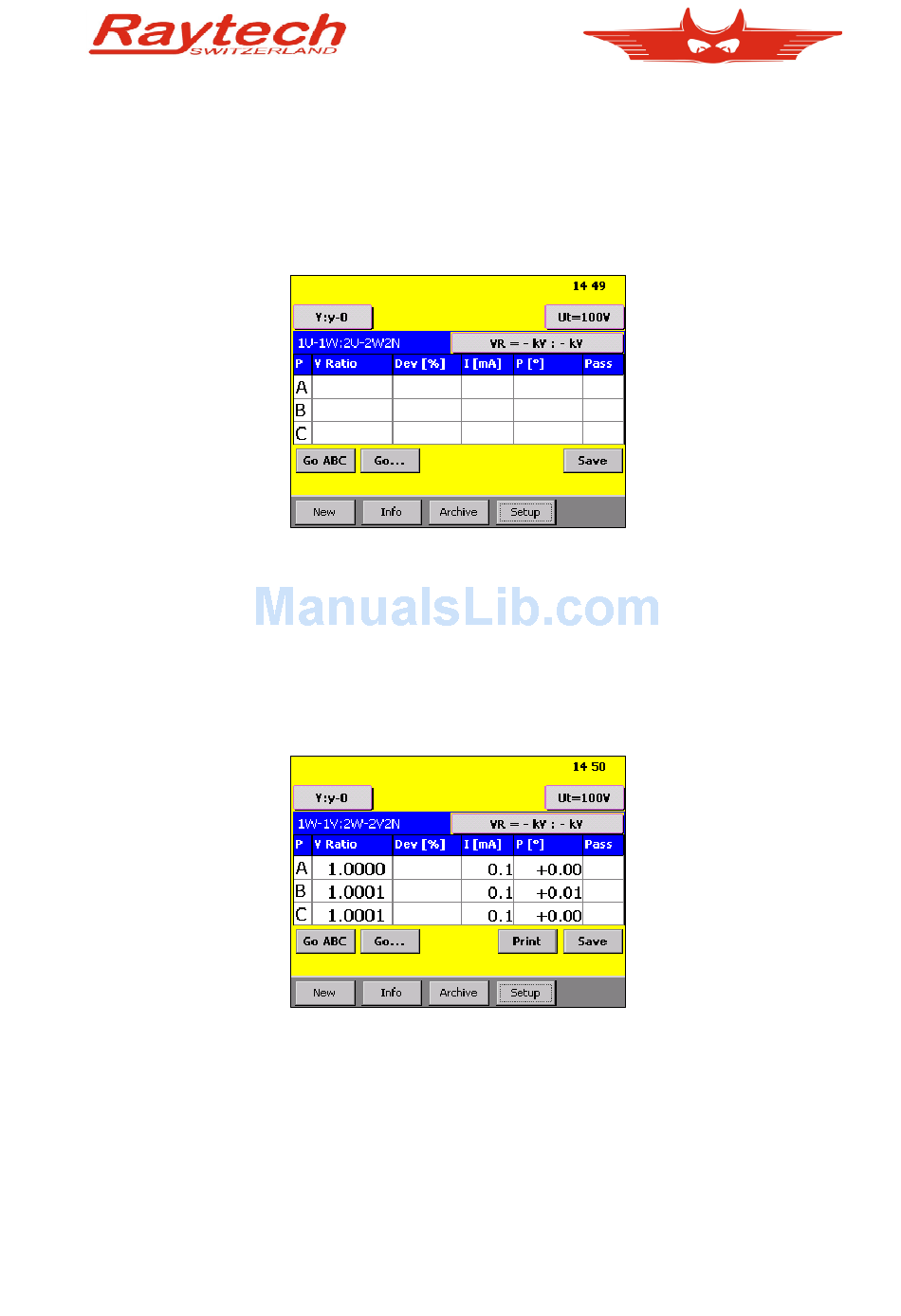

If a new Transformer is entered to TR-MARK III, the main screen appears as followed:
Main Screen is the basic platform of TR-MARK III operation. On this screen, you will find
buttons, indications and results.
Now lets start with the 'Go' buttons. Press 'Go ABC' to measure all three phases A, B and C
in one cycle. TR-MARK III will display automatically any complete result. Finally main screen
will appear as followed:
This is also the display you will find after switching on the instrument, if a measurement was
finished before it was switched off.
90100.1.02 Instruction Manual TR-MARK III Page 21 of 70
