8.2.1 New Transformer

This button will start the procedure of creating a new transformer. If the last used
Transformer or measurement is not saved yet, you will be asked if you like to do so.
8.2.1.1 Simple Transformer, no taps

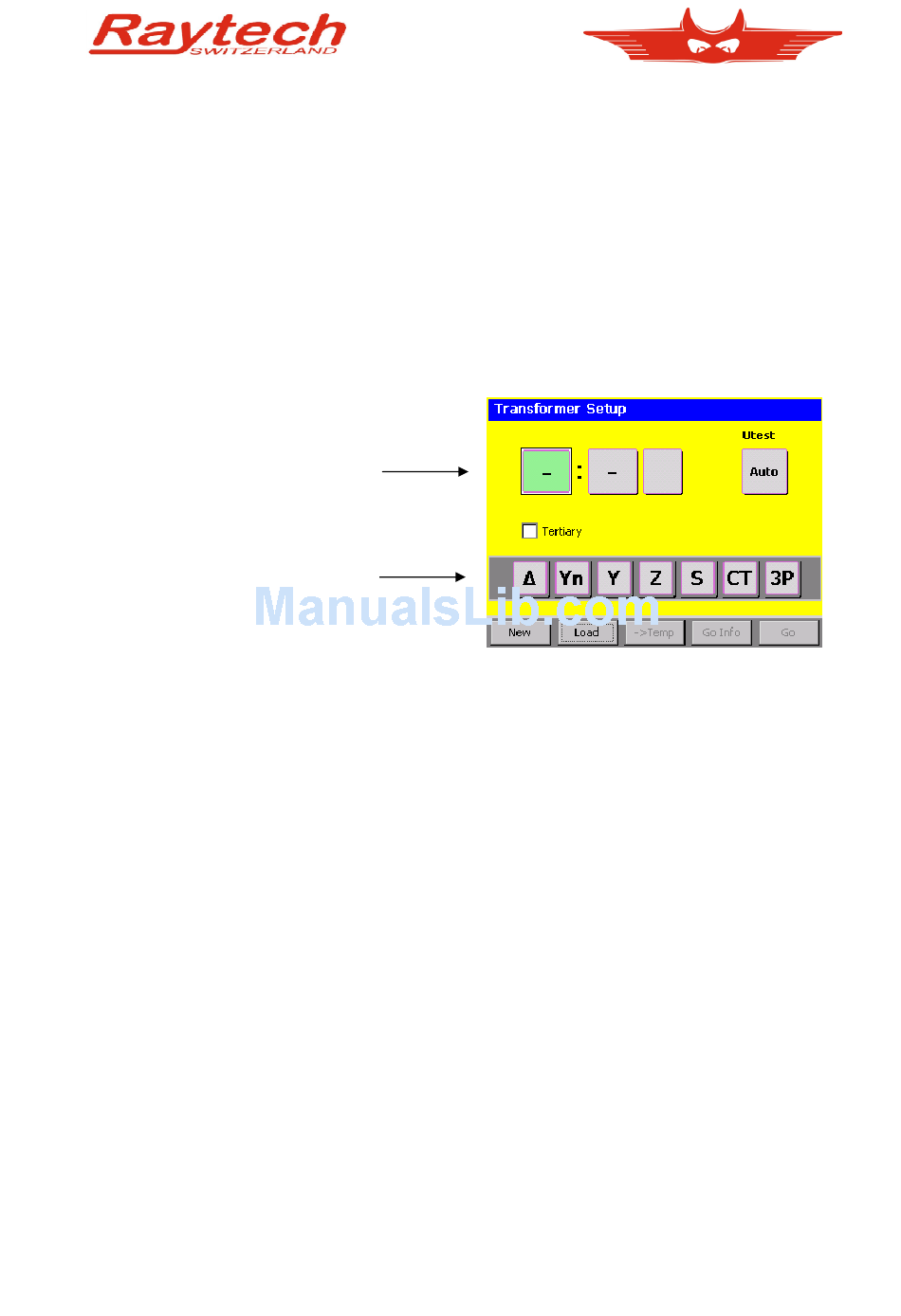

Then MARK-III sets the focus on the first winding system. Choose the type corresponding to
your transformer from the menu shown below. MARK-III will accept it and set the focus
automatically to the next input button.
Focus can be set here
Touch the button below 'Utest' to choose your test voltage.
Finally, touch 'GO' to get to main screen and start measurement.
Touch 'Go Info' to get to main screen via Info menu, if you like to enter transformer details.
'-> Temp' will store the new transformer as a template. Please see chapter '8.2.5 Working
with Templates' for detailed information.
