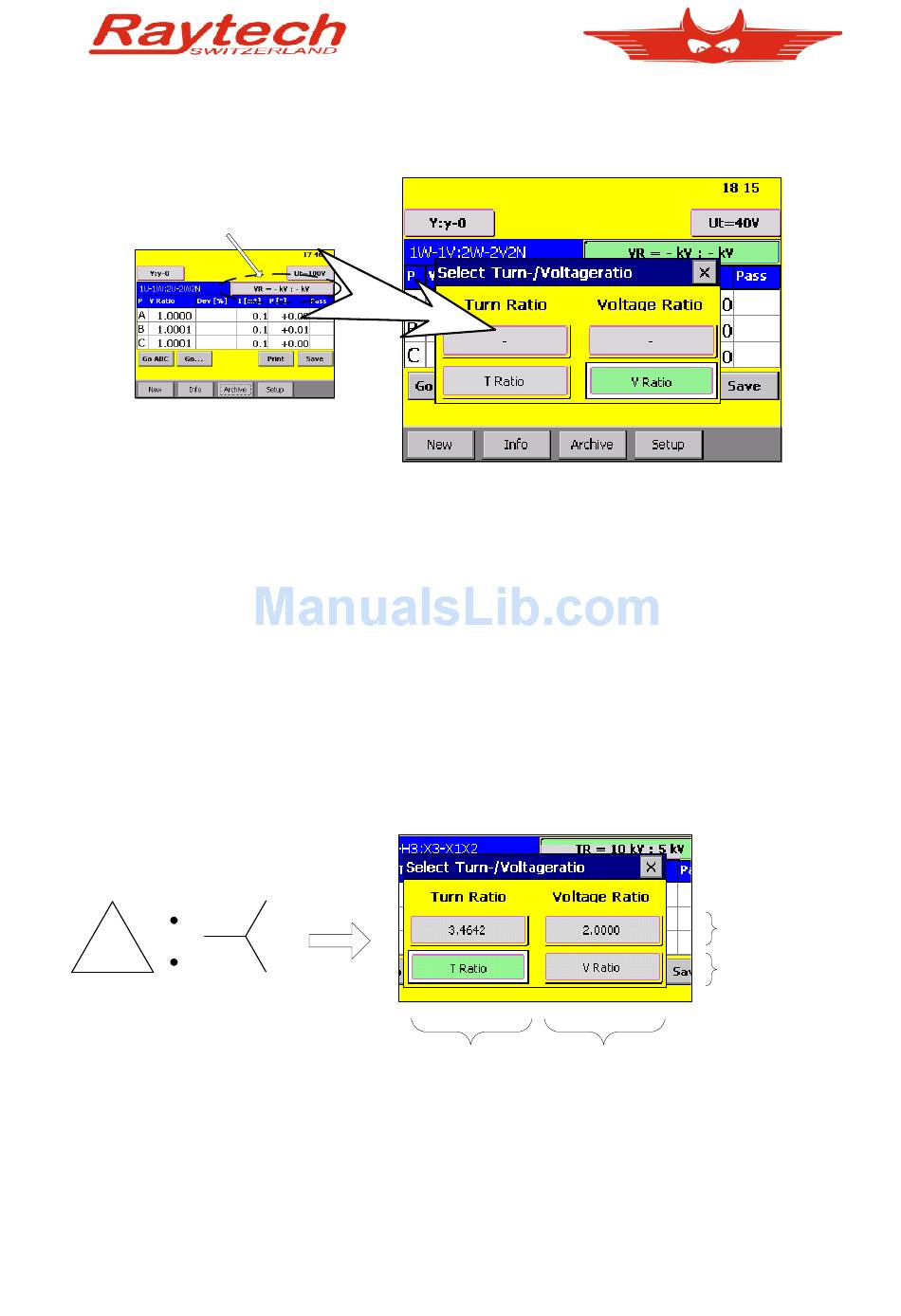

8.1.3.2 Turn Ratio and Voltage Ratio
Tip here
(Nominal Ratio Display)
To simplify your work, we provide up to four display options for the entered transformer data.
There are two criteria important for your display. Do you need a Voltage or a Turns Ratio?
And do you prefer a calculated nominal ratio, based on the voltages in the info fileld, or do
you prefer to see the nominal ratio as "primary voltage : secondary voltage"?
If you change between Turn and Voltage Ratio, nominal and measured Ratio will be
displayed in the format of your choice. Calculated or not calculated value affects only
nominal ratio display.
The following example shows a D:y Transformer and what display options TR-Mark III
provides:
3464 : 1000 turns
10kV : 5kV
90100.1.02 Instruction Manual TR-MARK III
nominal
Show Turns Ratio
Show Voltage Ratio
As number
As Ratio
(10kV : 2kV)
