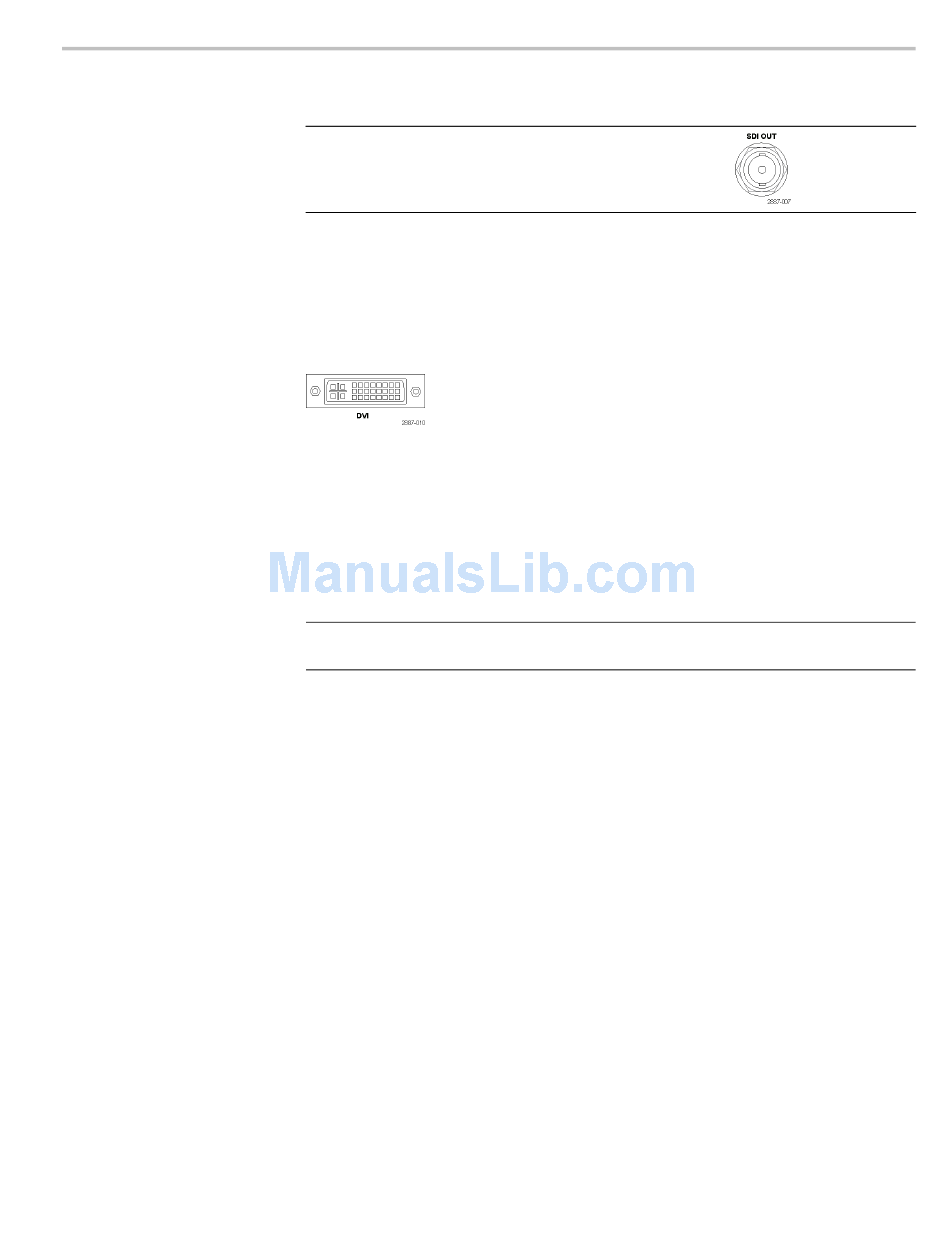

Rear-Panel Connectors
Output Connector
SDI Out. Select to output Loop Out or Test Signals (with Option
GEN installed) for SD-SDI, HD-SDI, or 3G-SDI (Level A or level
B) 1 .
1
3G-SDI Test Signals are available with Option 3G installed.
EXT DISPLAY Connector This is the external display monitor output. The display resolution is 1024 x
768. The output supports DVI monitors directly and analog PC (RGB) monitors
Pin Assignment
with the use of a DVI-I to VGA adapter. The EXT DISPLAY connector is a
DVI-I connector with socket contacts.
EXT DISPLAY connector
REMOTE Connector Pin The REMOTE connector interface uses ground closures for remote control and
indicating to external equipment when alarms have occurred. The input of LTC is
Assignment
through the REMOTE connector. The REMOTE connector is a 15-pin D-type
connector with socket contacts
NOTE.
For more information on Preset recall, refer to the user manual on the
Product Documentation CD that was shipped with your instrument.
