Basic Installation Procedure

Installing in a Video System

For Monitoring the Video
Bit Stream of a Serial
Receiver
16
The instrument can operate almost anywhere in the distribution system where
serial digital system monitoring is needed.

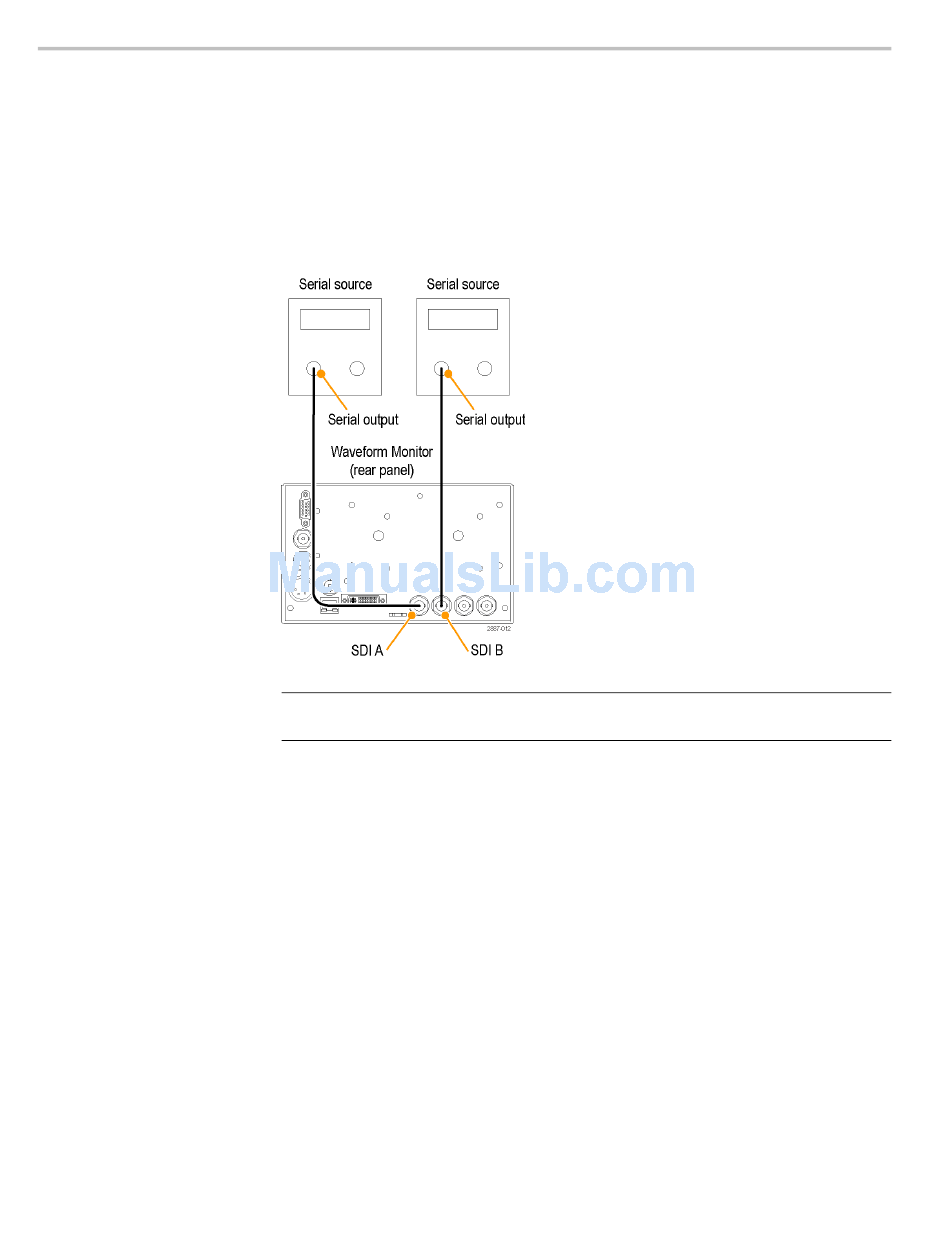

Route one or more incoming serial signals into the SDI inputs on the rear-panel
of the instrument.
NOTE.
See the Specifications and Performance Verification manual on the
Product Documentation CD for maximum-allowed cable lengths.
WFM5200 Installation and Safety Instructions
