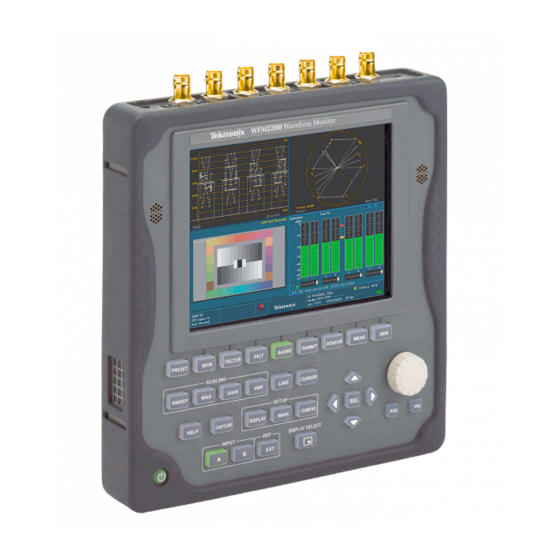

Multiformat multistandart portable waveform monitor
Hide thumbs Also See for WFM2300:

Advertisement

WFM2300 and WFM2200A
xx
Multiformat Multistandard Portable Waveform Monitors
ZZZ
Release Notes
This document supports software version 2.11.5.
www.tek.com
*P077087004*
077-0870-04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WFM2300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tektronix WFM2300

  • Page 1 WFM2300 and WFM2200A Multiformat Multistandard Portable Waveform Monitors Release Notes This document supports software version 2.11.5. www.tek.com *P077087004* 077-0870-04...
  • Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
  • Page 3: New Features

    This release of the WFM2300 and WFM2200A software introduces the following new features: ASI signal monitoring For the WFM2300 only, a new software option (ASI) is available which allows you to monitor ASI video signal inputs as follows: (WFM2300 Option ASI...
  • Page 4 The Moving Circle feature has been reinstated in this software release. You can use this feature as a method of identifying the signal source. The Moving Circle feature can be configured to use a horizontal, vertical, or random motion. WFM2300 and WFM2200A Release Notes...
  • Page 5 The instrument is capable of showing only two of the following displays at a time: Waveform, Vector, Lightning, Arrowhead, Diamond, Split Diamond, Bowtie, Datalist, Eye, and Timing Measure. A warning messages appears when you try to open more than two of these displays. WFM2300 and WFM2200A Release Notes...
  • Page 6 3G Level A format. Input timing to external The Input Timing to External Reference measurement display may be unstable when a 3G-SDI Level A input is being selected with a tri-level external reference measurement reference signal. WFM2300 and WFM2200A Release Notes...
  • Page 7 When set to LTC, the instrument switches to using the LTC timecode on the input signal. When the MULTI IN input is then set to AES, SDI, or SDI/ASI (Option ASI only), the instrument then changes back to the previous time-of-day source. WFM2300 and WFM2200A Release Notes...
  • Page 8 files saved on the USB device if you do not use the “Unmount” feature. It is recommended that you use a well known brand to prevent a slow instrument boot-up and/or response. Web browser We recommend using Java Runtime Engine (JRE) version 1.6 or above. WFM2300 and WFM2200A Release Notes...
