Electrical Installation
NOTICE
EMC INTERFERENCE
Use screened cables for motor and control wiring, and
separate cables for input power, motor wiring, and
control wiring. Failure to isolate power, motor, and
control cables can result in unintended behaviour or
reduced performance. Minimum 200 mm (7.9 in)
clearance between power, motor, and control cables is
4 4
required.

4.5 Access

•

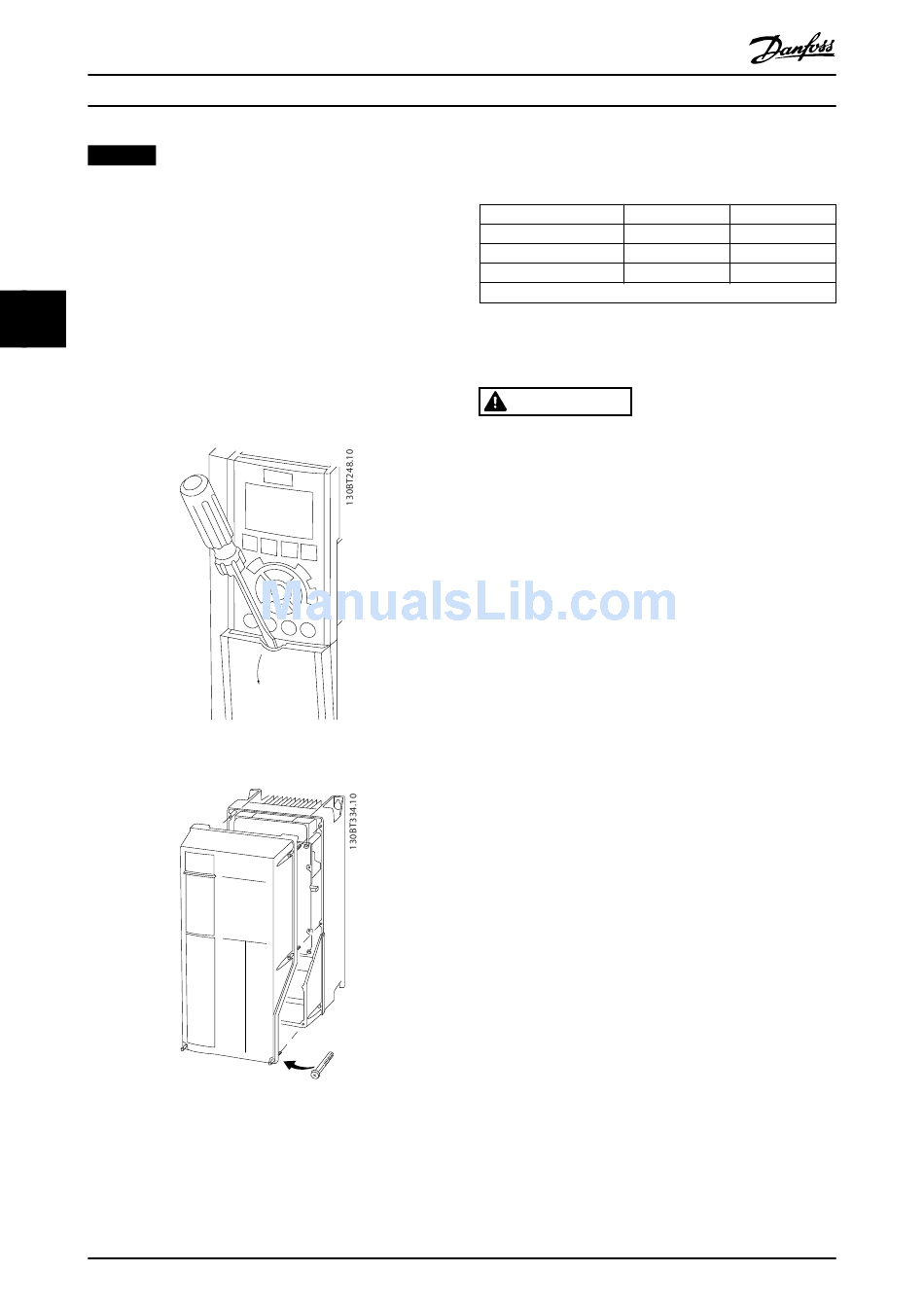

Remove the cover with a screwdriver (see
Illustration 4.3) or by loosening attaching screws
(see Illustration 4.4).
Illustration 4.3 Access to Wiring for IP20 and IP21 Enclosures
Illustration 4.4 Access to Wiring for IP55 and IP66 Enclosures
16
®
VLT AutomationDrive FC 301/302
Tighten the cover screws using the tightening torques
specified in Table 4.1.
No screws to tighten for A1/A2/A3/B3/B4/C3/C4.
Table 4.1 Tightening Torques for Covers [Nm]

4.6 Motor Connection

INDUCED VOLTAGE
Induced voltage from output motor cables that run
together can charge equipment capacitors, even with the
equipment turned off and locked out. Failure to run
output motor cables separately or use screened cables
could result in death or serious injury.
•
•
•
•
•
•
Procedure
1.
2.
3.
4.
5.
Danfoss A/S © 07/2015 All rights reserved.
Enclosure IP55
A4/A5 2
B1/B2 2.2
C1/C2 2.2
WARNING
Run output motor cables separately, or
Use screened cables.
Comply with local and national electrical codes
for cable sizes. For maximum wire sizes, see
chapter 8.1 Electrical Data.
Follow motor manufacturer wiring requirements.
Motor wiring knockouts or access panels are
provided at the base of IP21 (NEMA1/12) and
higher units.
Do not wire a starting or pole-changing device
(for example, Dahlander motor or slip ring
asynchronous motor) between the frequency
converter and the motor.
Strip a section of the outer cable insulation.
Position the stripped wire under the cable clamp
to establish mechanical fixation and electrical
contact between the cable screen and ground.
Connect the ground wire to the nearest
grounding terminal in accordance with the
grounding instructions provided in
chapter 4.3 Grounding, see Illustration 4.5.
Connect the 3-phase motor wiring to terminals
96 (U), 97 (V), and 98 (W), see Illustration 4.5.
Tighten the terminals in accordance with the
information provided in chapter 8.8 Connection
Tightening Torques.
IP66
2
2.2
2.2
