Electrical Installation

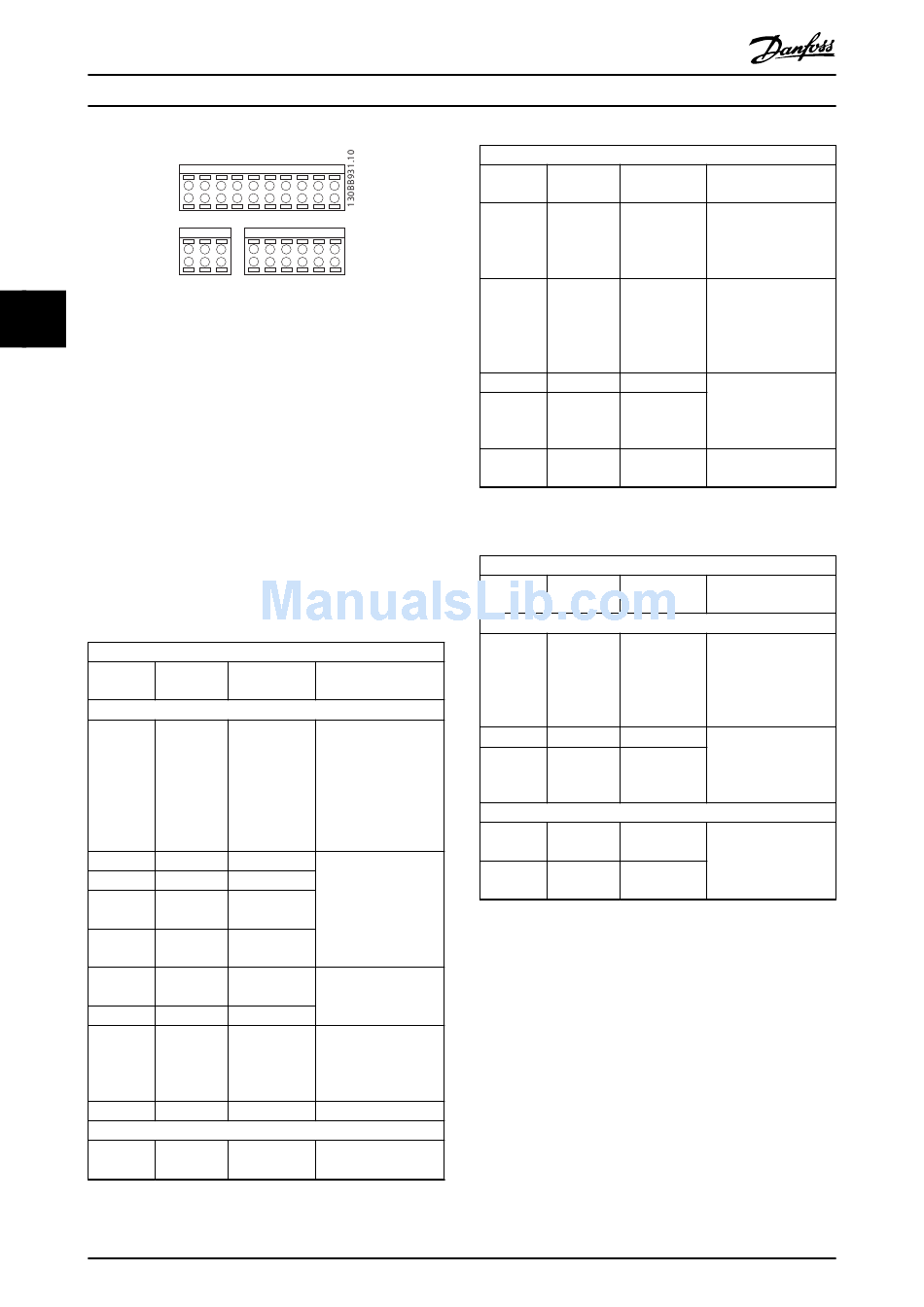

Illustration 4.8 Terminal Numbers
4 4
•
Connector 1 provides 4 programmable digital
inputs terminals, 2 additional digital terminals
programmable as either input or output, a 24 V
DC terminal supply voltage, and a common for
optional customer supplied 24 V DC voltage. FC
302 and FC 301 (optional in A1 enclosure) also
provide a digital input for STO function.
•
Connector 2 terminals (+)68 and (-)69 for RS485
serial communication connection.
•
Connector 3 provides 2 analog inputs, 1 analog
output, 10 V DC supply voltage, and commons
for the inputs and output.
•
Connector 4 is a USB port available for use with
the MCT 10 Set-up Software.
Terminal Parameter
12, 13
18
19
32
33
27
29
20
37
39
18
VLT
1
12 13 18 19 27 29 32 33 20 37
2 3
39 42 50 53 54 55
61 68 69
Terminal description
Default
setting Description
Digital inputs/outputs
– +24 V DC 24 V DC supply
voltage for digital
inputs and external
transducers. Maximum
output current 200
mA (130 mA for FC
301) for all 24 V loads.
5-10 [8] Start
5-11 [10] Reversing
5-14 [0] No
Digital inputs.
operation
5-15 [0] No
operation
5-12 [2] Coast
For digital input or
inverse output. Default setting
is input.
5-13 [14] JOG
– – Common for digital
inputs and 0 V
potential for 24 V
supply.
– STO Safe input.
Analog inputs/outputs
– Common for analog
output
Danfoss A/S © 07/2015 All rights reserved.
®
AutomationDrive FC 301/302
Terminal
42
50
53
54
55
Table 4.2 Terminal Description, Digital Inputs/Outputs, Analog
Inputs/Outputs
Terminal
61
68 (+)
69 (-)
01, 02, 03
04, 05, 06
Table 4.3 Terminal Description, Serial Communication
Additional terminal
•
2 form C relay outputs. The location of the
outputs depends on the frequency converter
configuration.
•
Terminals located on built-in optional equipment.
See the manual provided with the equipment
option.
Terminal description
Default
Parameter setting
6-50 [0] No Programmable analog
operation
output. 0–20 mA or
4–20 mA at a
maximum of 500 Ω.
– +10 V DC 10 V DC analog
supply voltage for
potentiometer or
thermistor. 15 mA
maximum.
6-1* Reference Analog input. For
voltage or current.
6-2* Feedback
Switches A53 and A54
select mA or V.
– Common for analog
– input.
Terminal description
Default
Parameter setting
Serial communication
– – Integrated RC-filter for
cable screen. ONLY for
connecting the screen
in the event of EMC
problems.
8-3* – RS485 interface. A
control card switch is
8-3* –
provided for
termination resistance.
Relays
[0] No
Form C relay output.
5-40 [0] operation
For AC or DC voltage
5-40 [1] [0] No and resistive or
operation inductive loads.
Description
