Application Set-up Examples
6.1.3 Start/Stop
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39

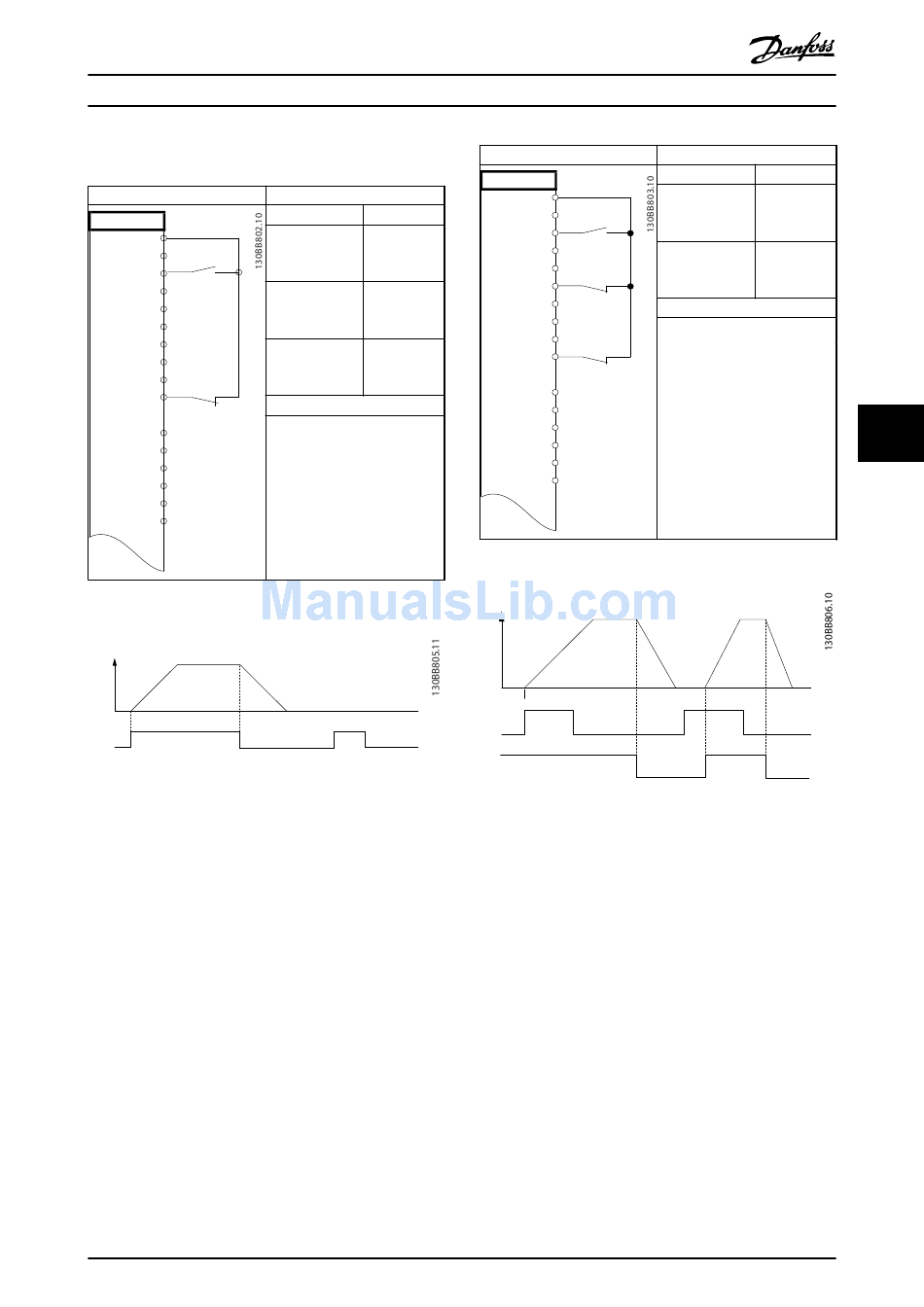

Table 6.7 Start/Stop Command with Safe Stop Option
Speed
Start (18)
Illustration 6.2 Start/Stop Command with Safe Stop
MG33AQ02
Operating Instructions
Parameters
Function Setting
Parameter 5-10 T [8] Start
erminal 18
Digital Input
Parameter 5-12 T [0] No
erminal 27 operation
Digital Input
Parameter 5-19 T [1] Safe Stop
erminal 37 Safe Alarm
Stop
* = Default value
Notes/comments:
If parameter 5-12 Terminal 27
Digital Input is set to [0] No
operation, a jumper wire to
terminal 27 is not needed.
D IN 37 is an option.
Danfoss A/S © 07/2015 All rights reserved.
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.8 Pulse Start/Stop
Speed
Latched Start (18)
Stop Inverse (27)
Illustration 6.3 Latched Start/Stop Inverse
Parameters
Function Setting
Parameter 5-10 T [9] Latched
erminal 18 Start
Digital Input
Parameter 5-12 T [6] Stop
erminal 27 Inverse
Digital Input
* = Default value
Notes/comments:
If parameter 5-12 Terminal 27
Digital Input is set to [0] No
operation, a jumper wire to
terminal 27 is not needed.
D IN 37 is an option.
