Commissioning
1
Status
7.83 A
799 RPM
2 0.000
A
53.2 %
4
Auto Remote Ramping
6
Quick
Status
B
Menu
7
C
10
On
OK
15
Warn.
16
Alarm
17
D Hand
Off
on
18 19

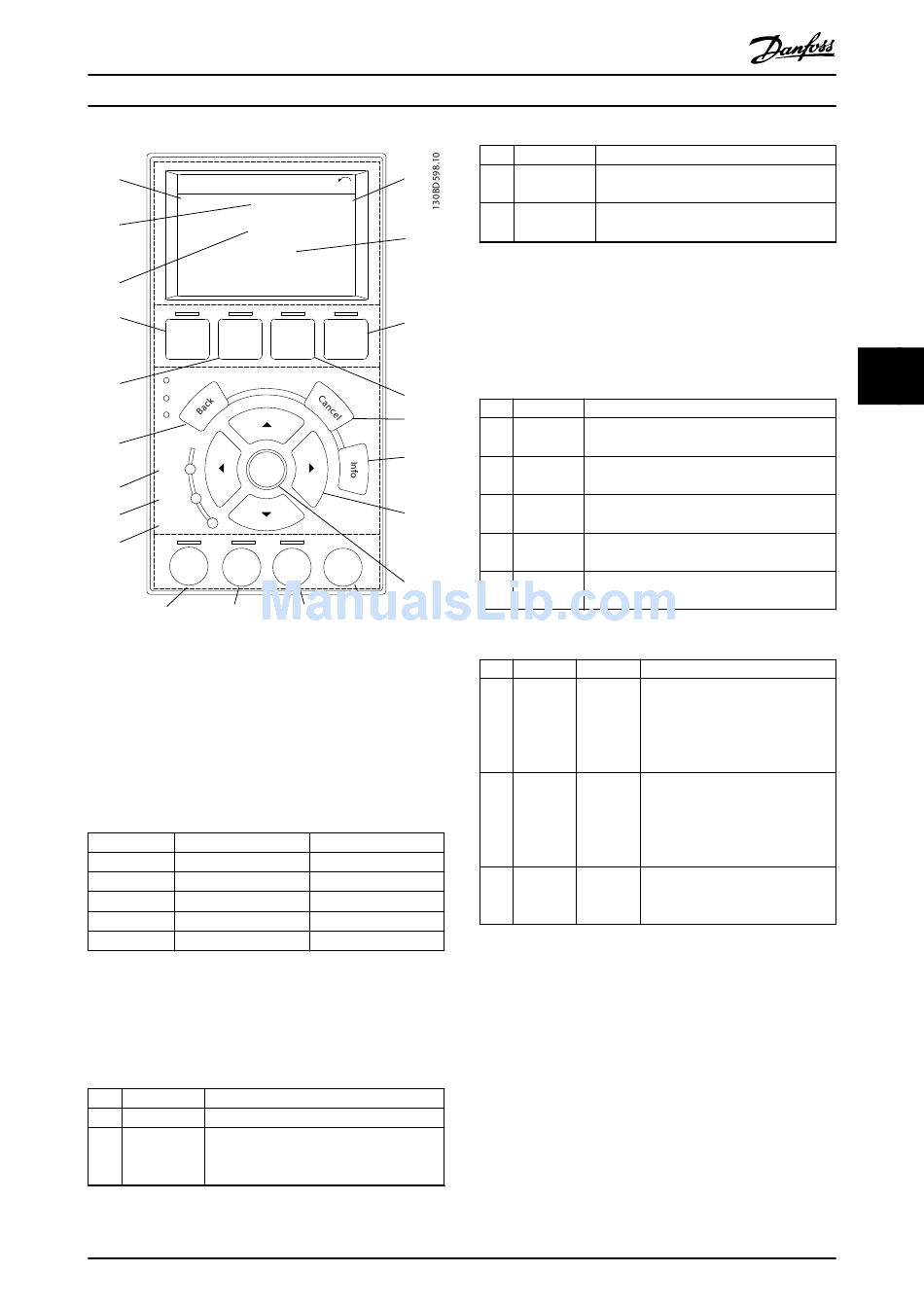

Illustration 5.1 GLCP
A. Display area
The display area is activated when the frequency converter
receives power from the mains voltage, a DC bus terminal,
or a 24 V DC external supply.
The information shown on the LCP can be customised for
user application. Select options in the Quick Menu Q3-13
Display Settings.
Display Parameter number
1 0-20
2 0-21
3 0-22
4 0-23
5 0-24
Table 5.1 Legend to Illustration 5.1, Display Area
B. Display menu keys
Menu keys are used for menu access for parameter set-up,
toggling through status display modes during normal
operation, and viewing fault log data.
Key Function
6 Status Shows operational information.
7 Quick Menu Allows access to programming parameters
for initial set-up instructions and many
detailed application instructions.
MG33AQ02
Operating Instructions
3
1(1)
36.4 kW
5
9
Main Alarm
Menu Log
8
11
12
13
Auto
Reset
on
14
20 21
Default setting
[1617] Speed [RPM]
[1614] Motor Current
[1610] Power [kW]
[1613] Frequency
[1602] Reference %
Danfoss A/S © 07/2015 All rights reserved.
Key Function
8 Main Menu Allows access to all programming
parameters.
9 Alarm Log Shows a list of current warnings, the last
10 alarms, and the maintenance log.
Table 5.2 Legend to Illustration 5.1, Display Menu Keys
C. Navigation keys and indicator lights (LEDs)
Navigation keys are used for programming functions and
moving the display cursor. The navigation keys also
provide speed control in local operation. There are also 3
frequency converter status indicator lights in this area.
Key Function
10 Back Reverts to the previous step or list in the
menu structure.
11 Cancel Cancels the last change or command as long
as the display mode is not changed.
12 Info Press for a definition of the function being
showed.
13 Navigation Use the 4 navigation keys to move between
Keys items in the menu.
14 OK Use to access parameter groups or to enable
a selection.
Table 5.3 Legend to Illustration 5.1, Navigation Keys
Indicator Colour Function
15 On Green The ON indicator light activates
when the frequency converter
receives power from the mains
voltage, a DC bus terminal, or a 24
V external supply.
16 Warn Yellow When warning conditions are met,
the yellow WARN indicator light
comes on and text appears in the
display area identifying the
problem.
17 Alarm Red A fault condition causes the red
alarm light to flash and an alarm
text is showed.
Table 5.4 Legend to Illustration 5.1, Indicator Lights (LEDs)
