Wiring Distance Table - Altronix StrikeIt1 Installation Manual

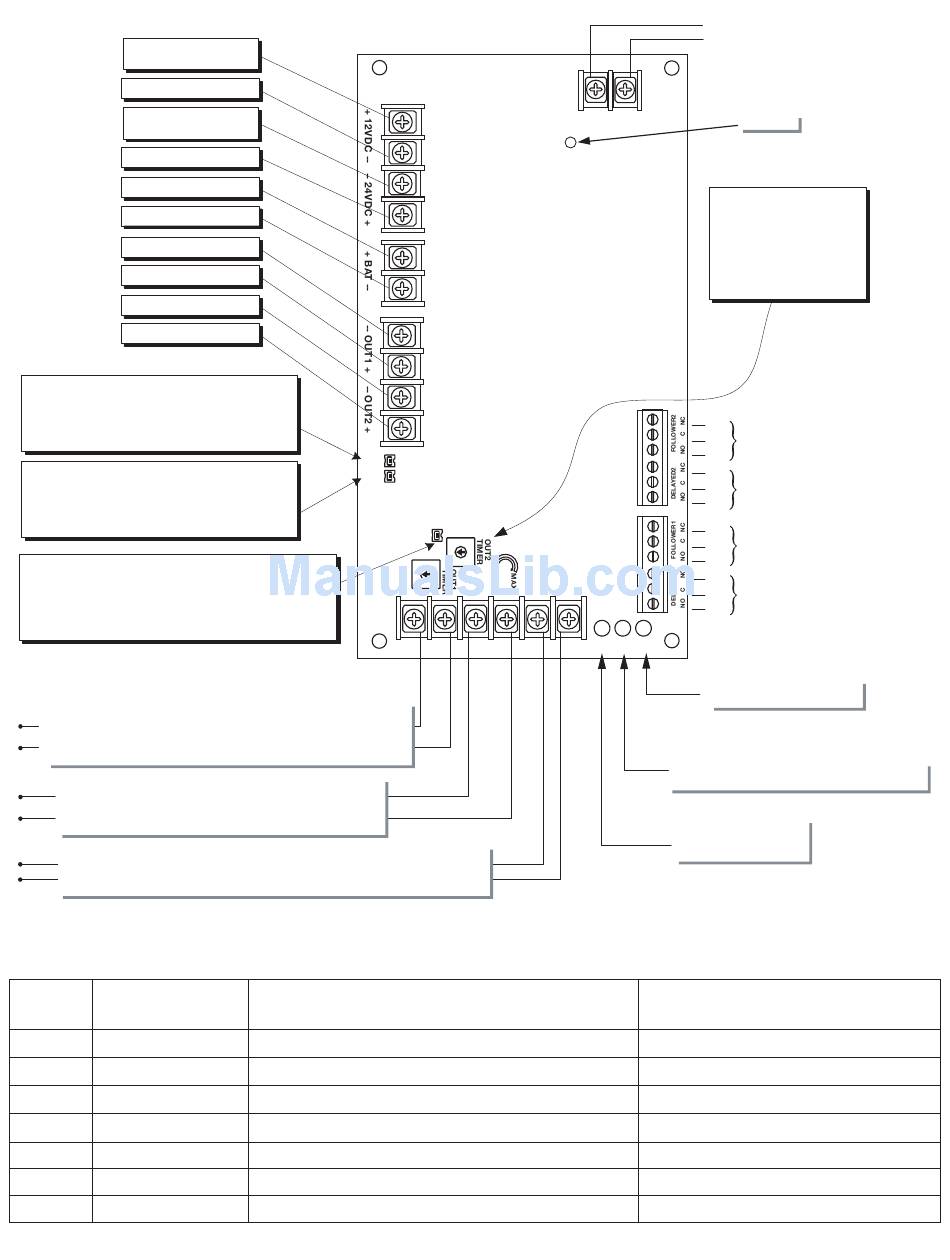

Fig. 2
12V AUX Output +
12VDC @ 1.0A
12V AUX Output --
24V AUX Output --
24VDC @ 1.0A
24V AUX Output +
Battery 24VDC +
Battery 24VDC --
Output 1 24VDC --
Output 1 24VDC +
Output 2 24VDC --
Output 2 24VDC +
DLY1 Jumper
Intact – ½ second delay after IN1 is shorted before
Delayed 1 Relay is switched for 1 second.
Removed –1 second delay after IN1 is shorted before
Delayed 1 Relay is switched for 1 second.
DLY2 Jumper
Intact – ½ second delay after IN2 is shorted before
Delayed 2 Relay is switched for 1 second.
Removed –1 second delay after IN2 is shorted before
Delayed 2 Relay is switched for 1 second.
FA SELECT Jumper
Fire Alarm Interface Mode
Intact - Fail Safe – Both outputs de-energized and Relay
Follower1 and Follower2 De-energized when FA contacts open.
Removed – Fail Secure – Both outputs energized Relay
Follower1 and Follower2 energized when FA contacts open.
Fire Alarm Interface
Connect these terminals to a normally closed dry contact that
opens upon fire alarm activation. With FA SELECT Jumper intact,
outputs # 1 and # 2 will drop power and Follower1and 2 will
de-energize. With FA SELECT Jumper removed, outputs #1 and #2
and Follower1 and 2 will energize upon fire alarm activation.
If FA interface is not used, place jumper between both FA terminals.
Connect normally open dry contacts from
key switch, timer, remote release or any maintained/
momentary switch. Output #2 energizes while input is closed.
Connect normally open dry contacts from key switch, timer, remote release
or any maintained/momentary switch. Output #1 energizes while input is closed.
Note: For independent operation of Output 1 and 2, connect NO dry contact between IN1 and GND and/or IN2 and GND.
For sequential operation of OUT1 and OUT2 install a jumper between IN1 and IN2 and a jumper between both GND terminals.
InRush Wire
Current Gauge
8 amp 14 AWG Stranded
8 amp 12 AWG Stranded
12 amp 14 AWG Stranded
12 amp 12 AWG Stranded
16 amp 14 AWG Stranded
16 amp 12 AWG Stranded
16 amp 10 AWG Stranded
- 6 -
DLY 1
DLY 2
Input #2
Input #1

Wiring Distance Table:

Electric Butt or Pivot
Max distance from Power Supply to frame side of opening
AC
FA SELECT
GND FACP GND IN2 GND IN1
75 ft.
175 ft.
60 ft.
80 ft.
40 ft.
60 ft.
100 ft.
AC Input
from transformers
XFMR
AC LED
OUT1 and OUT2
Relock delay adjustment.
Used to hold OUT1 or OUT2
energized after a momentary
closure across IN1 or IN2.
Set for 0 seconds for output
to follow input. Turn
clockwise to increase time.
NC
Follower 2 - This relay will activate
C
immediately when OUTPUT 2
is energized.
NO
NC Delayed 2 - This relay will activate
after .5 sec. or 1 sec. (depending on
C
the position of DLY2 jumper) when
NO
OUTPUT 2 is energized.
NC
Follower 1 - This relay will activate
C
immediately when OUTPUT 1
is energized.
NO
NC
Delayed 1 - This relay will activate
after .5 sec. or 1 sec. (depending on
C
the position of DLY1 jumper) when
NO
OUTPUT 1 is energized.
FAI INP1 INP2
INP2 LED
Indicator for Input2 with the
same function as INP1 LED.
INP1 LED
When green LED is lit steady, Input 1 is energized.
Blinking Slow LED – Output is shorted.
Rapid blinking LED – Output is open.
FA LED
When red LED is lit,
fire alarm circuit is open.
EPT
Max distance from Power Supply to frame side of opening
100 ft.
200 ft.
75 ft.
100 ft.
75 ft.
80 ft.
125 ft.
StrikeIt1
