Summary of Contents for Altronix StrikeIt1

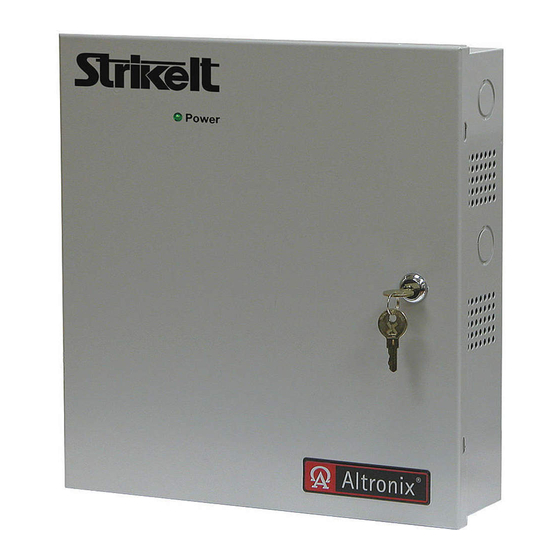

- Page 1 StrikeIt1 Panic Device Power Controller Installation Guide Rev. 090606...
-
Page 2: Table Of Contents
StrikeIt1 Installation Instructions ........ -
Page 3: Overview
Overview: StrikeIt1 will operate up to two (2) 24VDC panic hardware devices simultaneously. It is designed to handle the high current surge panic hardware locking devices demand. Each lock output has an adjustable relock delay timer. It will con- trol a pair of doors simultaneously or independently control two individual doors. It has a follower relay for each output to trigger external relays, ADA push plate switches, etc. -
Page 4: Maintenance
FACP Supervision: To insure proper connection and operation of the Fire Alarm disconnect hookup, remove wire from the terminal marked [FACP] on StrikeIt1. With the [FA Select] jumper removed, locked Panic Hardware Devices will unlock. With the [FA Select] jumper in place, unlocked Panic Hardware Devices will relock. When the wire is reconnected to the [FACP] terminal the Panic Hardware Devices will relock with the [FA Select] jumper removed or will unlock with the [FA Select] jumper in place. -
Page 5: Strikeit1 Terminal Identification
Caution: For continuous protection against risk of electric shock and fire hazard, replace input fuse with the same type and rating 3.5 amp/250V. Do not expose to rain or moisture, indoor use only. StrikeIt1 Terminal Identification: Terminal Legend Function/Description + 12VDC -- 12VDC Auxiliary Output @ 1 amp. -
Page 6: Wiring Distance Table
12 amp 12 AWG Stranded 80 ft. 100 ft. 16 amp 14 AWG Stranded 40 ft. 75 ft. 16 amp 12 AWG Stranded 60 ft. 80 ft. 16 amp 10 AWG Stranded 100 ft. 125 ft. - 6 - StrikeIt1... - Page 7 Battery connection (non-power limited) FACP and Access Control FA SELECT Trigger Inputs Trigger Inputs Trigger Inputs ® Note: StrikeIt1 is intended for use with VON DUPRIN panic hardware devices. Fig. 3E VON DUPRIN ® is a registered trademark of Ingersoll Rand. Battery 2...
-
Page 8: Enclosure Dimensions
1.00" 10.50" 1.00" Altronix is not responsible for any typographical errors. Altronix Corp. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. IIStrikeIt1 B12G MEMBER - 8 - StrikeIt1...
