- Page 1 Panic Device Power Controller Installation Guide Altronix Corp. 140 58th St. Brooklyn, NY Rev. 061813 Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
-
Page 2: Specifications

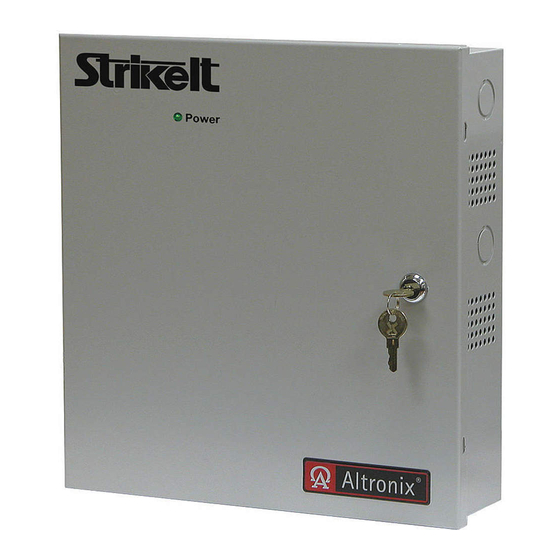

Overview: StrikeIt1 will operate up to two (2) 24VDC panic hardware devices simultaneously. It is designed to handle the high current surge panic hardware locking devices demand. Each lock output has an adjustable relock delay timer. It will control a pair of doors simultaneously or independently control two individual doors. -
Page 3: Strikeit1 Led Diagnostics
9. To hookup the Fire Alarm Disconnect feature, wire the normally closed (NC) dry contact output from a Fire Alarm Control Panel to the terminals marked [FACP] and [GND] of StrikeIt1. The “FA Select” dip switch [SW4] provides two (2) modes of operation (Fig. 3b, pg. 7): a) With dip switch [SW4] in the ON position, the application of a FACP trigger input (open circuit) while Input 1 and Input 2 are triggered will cause the unlocked (energized) panic hardware devices to relock (de-energize). -
Page 4: Maintenance
FACP Supervision: To ensure proper connection and operation of the Fire Alarm disconnect hookup, remove wire from the terminal marked [FACP] on StrikeIt1. With the dip switch [SW4] in ON positon, unlocked Panic Hardware Devices will unlock. With dip switch [SW4] in the OFF position (Fig. 3b, pg. 7), locked Panic Hardware Devices will relock. - Page 5 3600 - Concealed Vertical Rod Exit Device First Choice 3700 - Rim Latching Exit Device Kawneer EL Paneline Exit Device ® Von Duprin EL98 Series Panic Hardware with Electric Latch Retraction 7500 Electric Strike StrikeIt1 - 5 Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
-
Page 6: Wiring Distance Table
A maximum 0.25 ohm resistance of connecting wires is acceptable, see chart below for wire gauge and distances. Wire Gauge Distance 14 AWG Stranded 40 ft. 12 AWG Stranded 60 ft. 10 AWG Stranded 100 ft. - 6 - StrikeIt1 Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com... - Page 7 7AH Rechargeable batteries are the largest batteries that can fit in this enclosure. A UL Listed external battery enclosure must be used if using 12AH, 40AH or 65AH batteries. Note: StrikeIt1 is intended for use with VON DUPRIN ® panic hardware devices. VON DUPRIN ® is a registered trademark of Allegion.
- Page 8 NEC Power-Limited Wiring Requirements for StrikeIt1 Model: Power-limited and non power-limited circuit wiring must remain separated in the cabinet. All power-limited circuit wiring must remain at least 0.25” away from any non power-limited circuit wiring. Furthermore, all power-limited circuit wiring and non power-limited circuit wiring must enter and exit the cabinet through different conduits.
-
Page 9: Enclosure Dimensions
5.10” 5.10” (130mm) (130mm) 13.0” (330mm) 5.10” (130mm) 6.5625” (167mm) 0.9375” (24mm) 3.25” 3.25” (83mm) (83mm) 3.25” (83mm) 1.0” 1.0” (25mm) (25mm) 1.0” 10.5” 1.0” (25mm) (267mm) (25mm) StrikeIt1 - 9 - Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com... - Page 10 Notes: - 10 - StrikeIt1 Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
- Page 11 Notes: StrikeIt1 - 11 Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
- Page 12 Notes: Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com. Lifetime Warranty. Made in U.S.A. MEMBER IIStrikeIt1 F14P...
