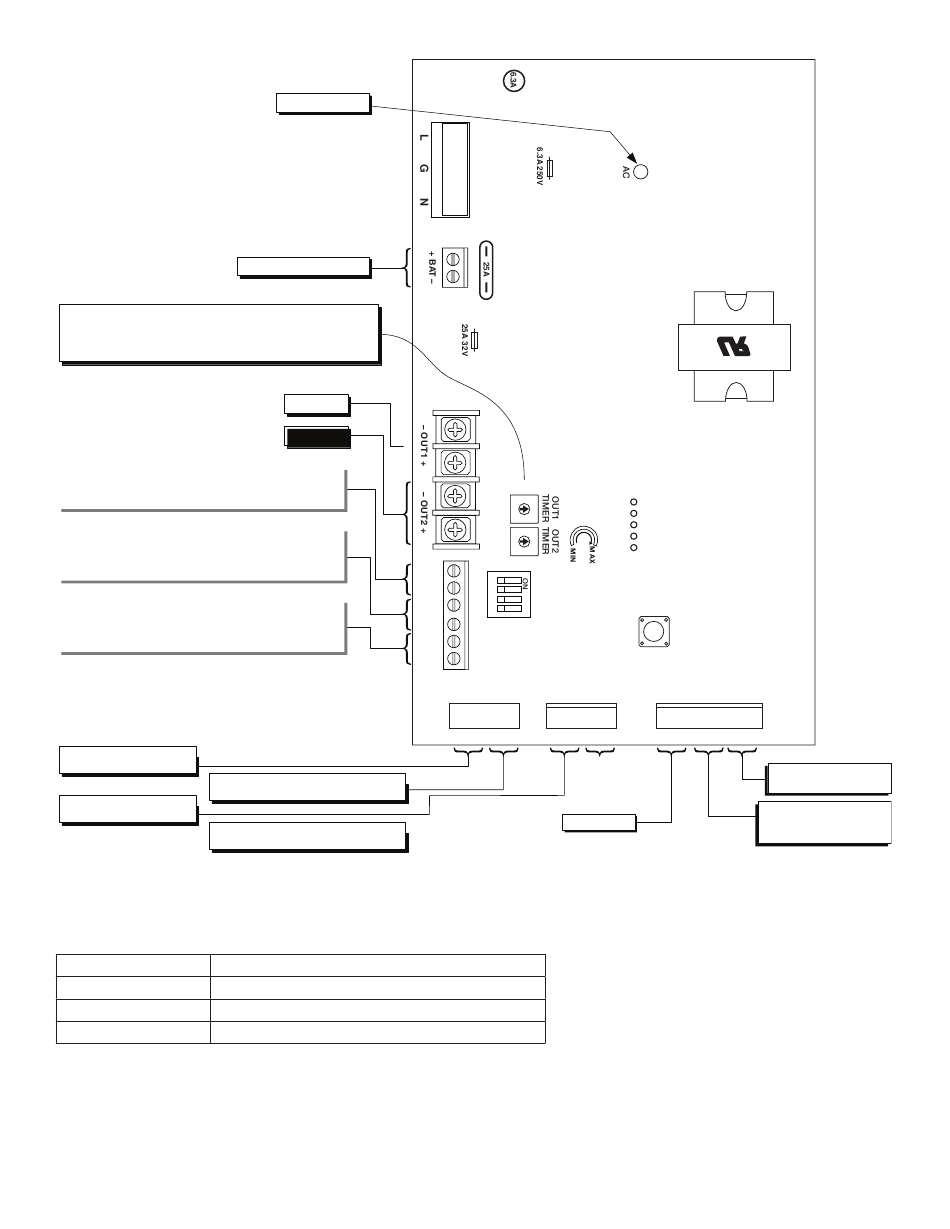

Fig. 2
OUT1 and OUT2
Relock delay adjustment. Used to hold OUT1 or OUT2 energized
after a momentary closure across IN1 or IN2. Set for 0 seconds
for output to follow input. Turn clockwise to increase time.
Fire Alarm Interface
Connect these terminals to a normally closed dry contact
that opens upon fire alarm activation.
Input #1
Connect normally open dry contacts from key switch,
timer, remote release or any maintained/momentary
switch. Output #1 energizes while input is closed.
Input #2
Connect normally open dry contacts from key switch,
timer, remote release or any maintained/momentary
switch. Output #2 energizes while input is closed.
Note: For independent operation of Output 1 and 2, connect NO
dry contact between IN1 and GND and/or IN2 and GND.
For sequential operation of OUT1 and OUT2 install a jumper
between IN1 and IN2 and a jumper between both GND terminals.
Delayed 1 - This relay will
activate after 0.5 sec. or 1 sec.
Follower 1 - This relay will activate
immediately when OUTPUT 1 is energized.
Delayed 2 - This relay will
activate after 0.5 sec. or 1 sec.
Follower 2 - This relay will activate
immediately when OUTPUT 2 is energized.
A maximum 0.25 ohm resistance of connecting wires is acceptable, see chart below for wire gauge and distances.
Wire Gauge
14 AWG Stranded
12 AWG Stranded
10 AWG Stranded
- 6 -
AC Power LED
Battery + 24VDC -­
Output 1
Output 2
FACP
GND
GND
GND

Wiring Distance Table:

Distance
40 ft.
60 ft.
100 ft.
Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com
1 Option 1 - Option 2
2 24-5V Hold Voltage
3 Follow-up Delay 0.5-1 sec.
IN1
4 Fire Alarm Interface
IN2
Delayed 1 Follower 1 Delayed 2 Follower 2
C NO C NO C NO C NO
C NO C NO C NO C NO
AC Supervision
INP1
INP2
FAI
BAT
AC
Manual Test
FAULT
C NC
C NC +12VDC– +24VDC–
24V Aux + Output -­
20VDC-26.4VDC @ 0.75A
12V Aux + Output -­
12VDC @ 0.75A in alarm,
0.5A in stand-by
StrikeIt1
