Strikeit1 Terminal Identification; Maintenance - Altronix StrikeIt1 Installation Manual

Output Voltage Test: Under normal load conditions the DC output voltage should be checked for proper voltage level.
Battery Test: Under normal load conditions check that the battery is fully charged, check specified voltage both at
battery terminal and at the board terminals marked [+ BAT -- ] to insure there is no break in the battery connection wires.
Note: Maximum charging current under discharge is 300mA.
Note: Expected battery life is 5 years, however it is recommended changing batteries in 4 years or less if needed.
Caution: For continuous protection against risk of electric shock and fire hazard, replace input fuse with the same type
and rating 3.5 amp/250V. Do not expose to rain or moisture, indoor use only.
Terminal Legend Function/Description
+ 12VDC -- 12VDC Auxiliary Output @ 1 amp.
-- 24VDC + 24VDC Auxiliary Output @ 1 amp.
+ BAT -- 24VDC Stand-by Battery Connection (Two (2) 12VDC batteries wired in series).
-- OUT 1 + Connect 24VDC Panic Hardware Device #1.
-- OUT 2 + Connect 24VDC Panic Hardware Device #2.
FACP / GND Normally Closed Dry Contact from Fire Alarm Control.
IN1 / GND N/O Trigger input controls Output 1. May be held closed for extended unlocking.
IN2 / GND N/O Trigger input controls Output 2. May be held closed for extended unlocking.
Delayed 1 Dry form "C" contacts provide a 1 second momentary pulse after a preset delay. With jumper
[DLY1] in place the delay is 0.5 seconds. With jumper [DLY1] removed the delay is 1 second. This
permits the Panic Hardware Device to fully unlock before signaling auto operator to swing door.
Delayed 2 Dry form "C" contacts provide a 1 second momentary pulse after a preset delay. With jumper
[DLY2] in place the delay is 0.5 seconds. With jumper [DLY2] removed the delay is 1 second. This
permits the Panic Hardware Device to fully unlock before signaling auto operator to swing door.
Follower 1 Dry form "C" contact. Energizes while output 1 is energized. Enables outside ADA switch plate to
actuate auto operator while door is unlocked. De-activates outside ADA actuator while door is locked.
Follower 2 Dry form "C" contact. Energizes while output 2 is energized. Enables outside ADA switch plate to
actuate auto operator while door is unlocked. De-activates outside ADA actuator while door is locked.

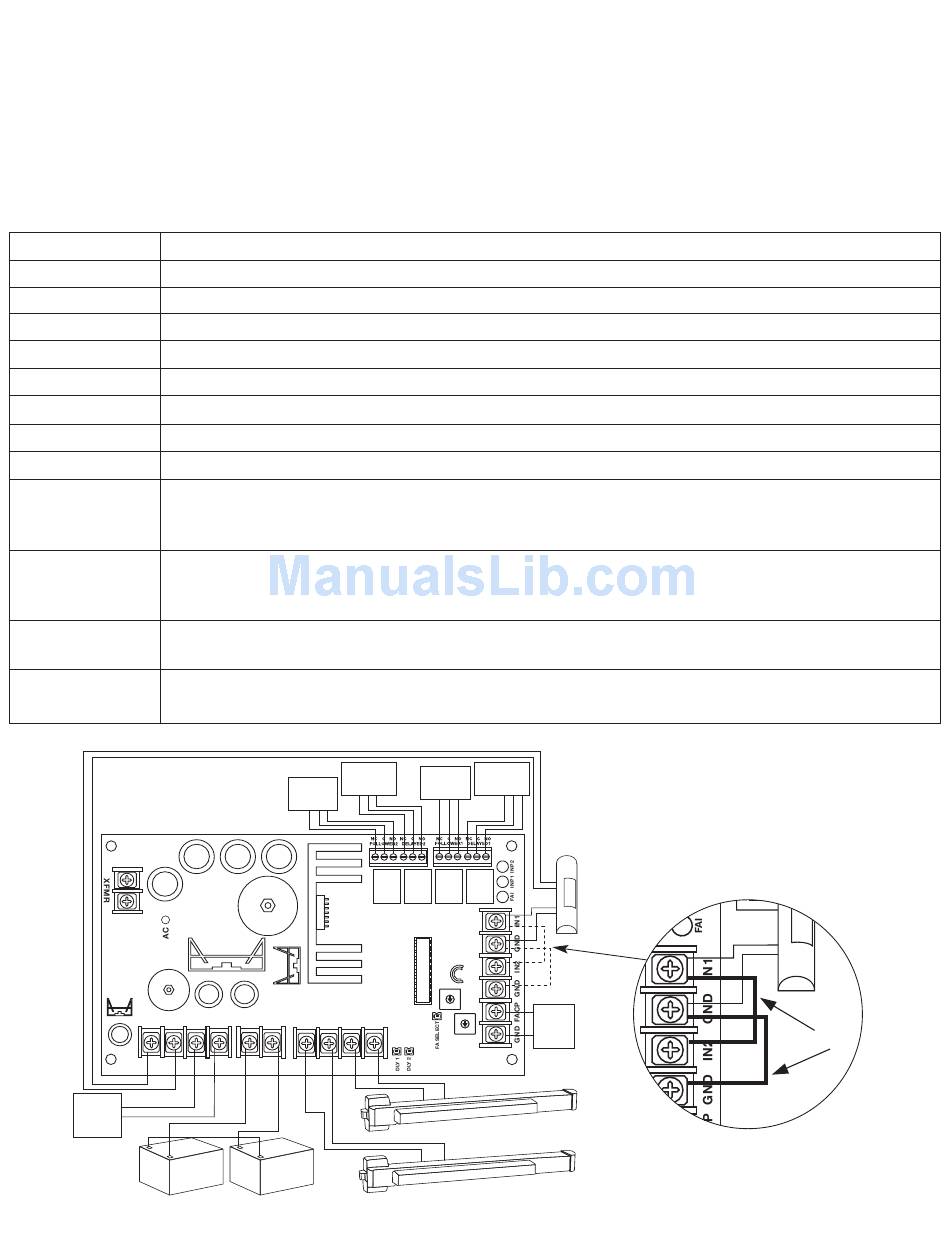

Fig. 1
+ 12VDC -- -- 24VDC +
Auxiliary
24VDC
Device
---
+
12VDC
StrikeIt1
Maintenance (cont.):

StrikeIt1 Terminal Identification:

Automatic
Door
Operator
Auxiliary
Device
+ BAT -- -- OUT1 + -- OUT2 +
---
+
12VDC
Rechargeable
Batteries
Automatic
Auxiliary Door
Operator
Device
Request
to Exit
PIR
MAX
MIN
Fire
Alarm
Control
Panel
Panic Hardware Device
Panic Hardware Device
Request
to Exit
PIR
Jumpers
MAX
MIN
Fig. 1A
Triggering Input 1 and Input 2
from a single actuating device.
- 5 -
