Chapter 8 Dual Image Feature (DIF) 79
d. If required, on the Trigger Out tab, set up output triggers.
e. At the bottom of the SuperSYNCHRO dialog, click OK to download the gating
sequence to the SuperSYNCHRO.

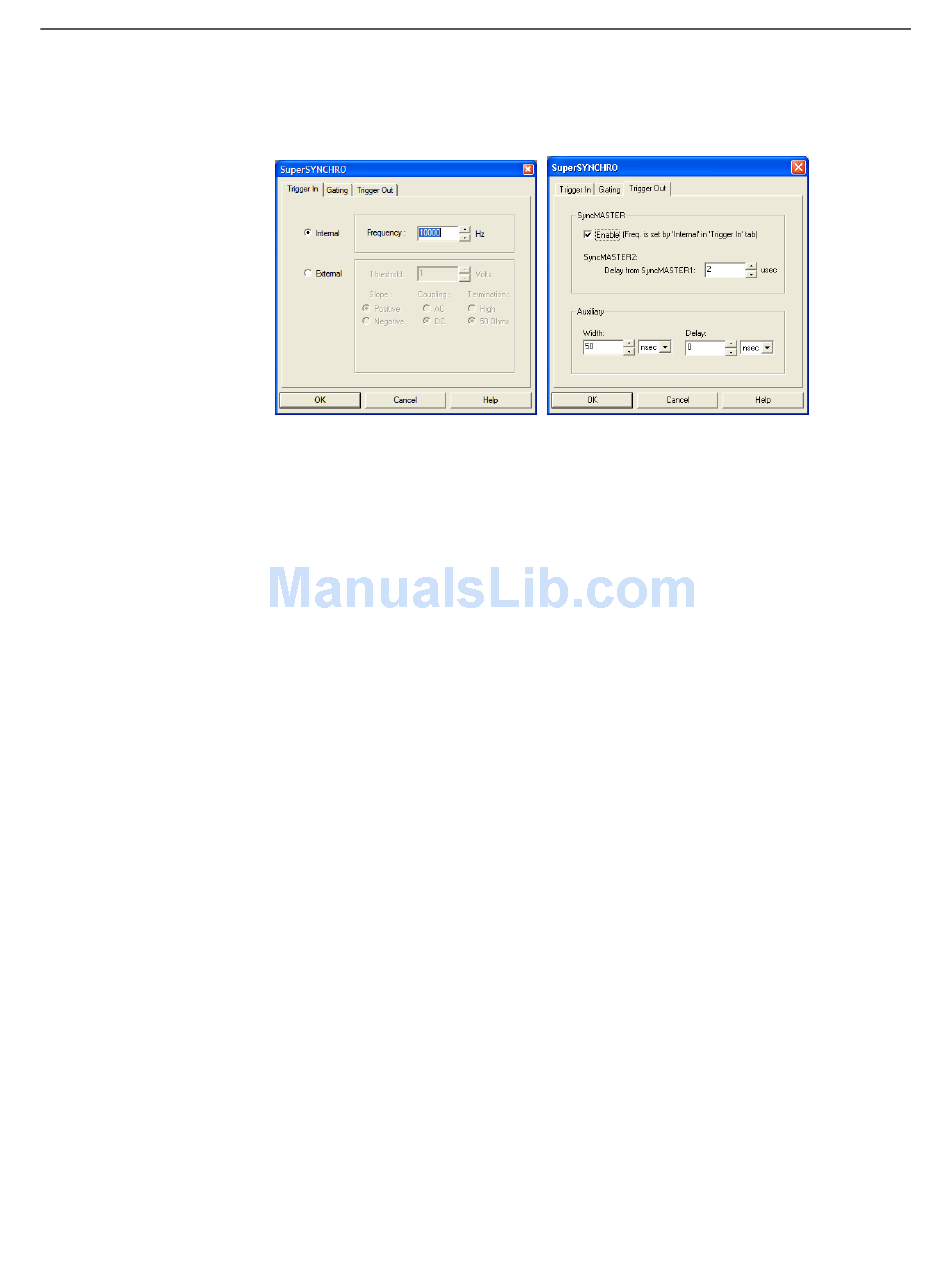

Figure 55. Trigger In and Trigger Out tabs

6. When the experiment is ready, click on the ACQ button or select Acquire on the
Acquisition menu to start the image acquisition.
