11. Verify the hardware setup information or change the parameters, as
appropriate. Enter the pulser information. Enter the experiment setup
parameters. If using a spectrograph, enter that setup information
12. Set the target array temperature. The typical target temperature is
-25°C.
13. When the system reaches temperature lock, begin acquiring data in
focus mode.
14. Adjust the focus for the best image or spectral lines. If you are using
WinSpec/32, you may want to use the Focus Helper function for this
purpose.
®
PI-MAX 3 System Manual
Action

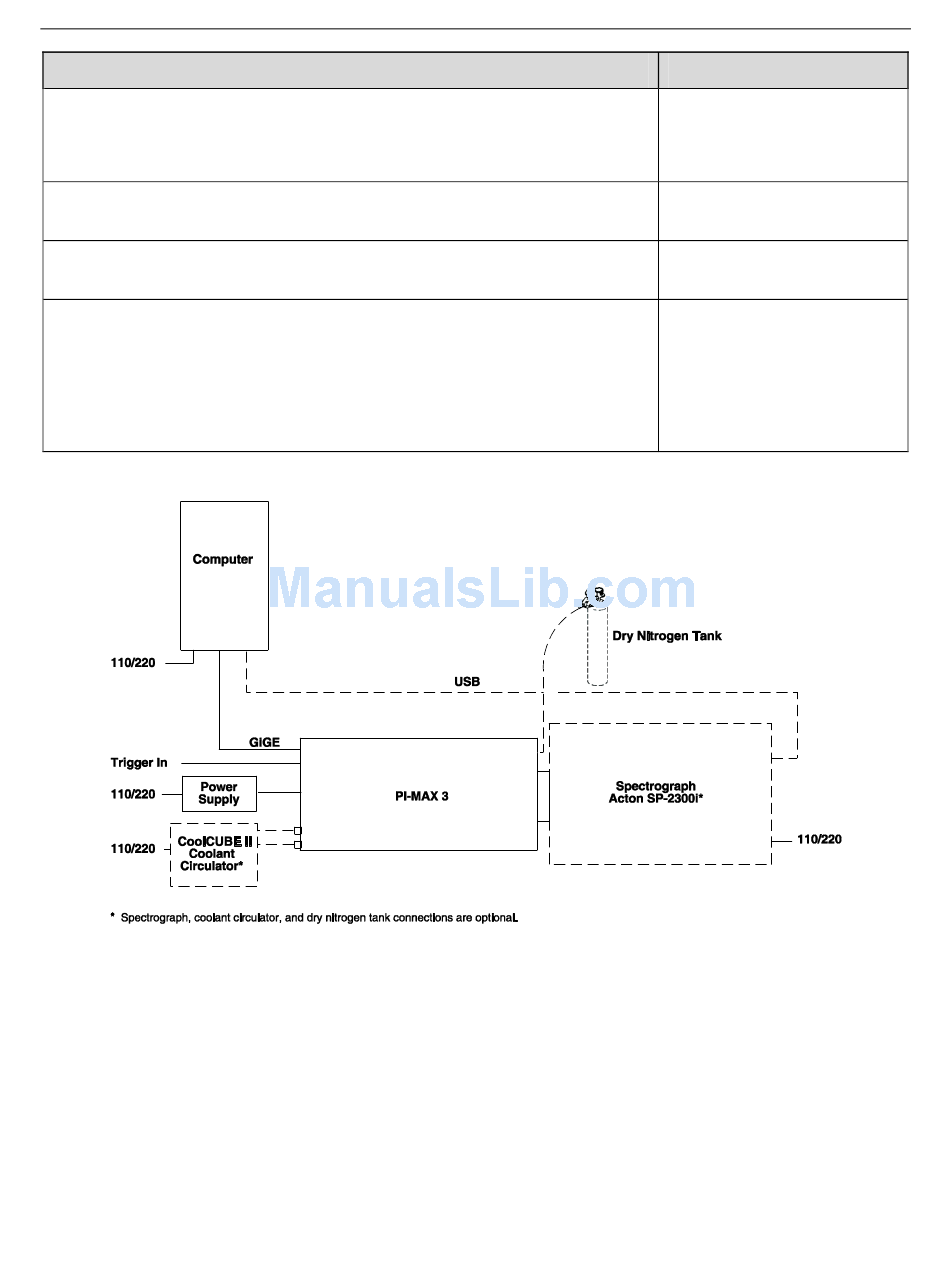

Figure 3. PI-MAX3 System Diagram

Version 1.A
Reference
WinView/32 or
WinSpec/32 manual
Setting the Temperature,
page 37
Initial Data Acquisition,
page 30
Appendix E C-Mount and
F-Mount Adapters,
page 121
Appendix G Spectroscopy-
Mount and Spectrograph
Adapters, page 125
