70 PI-MAX 3 System Manual Version 1.A

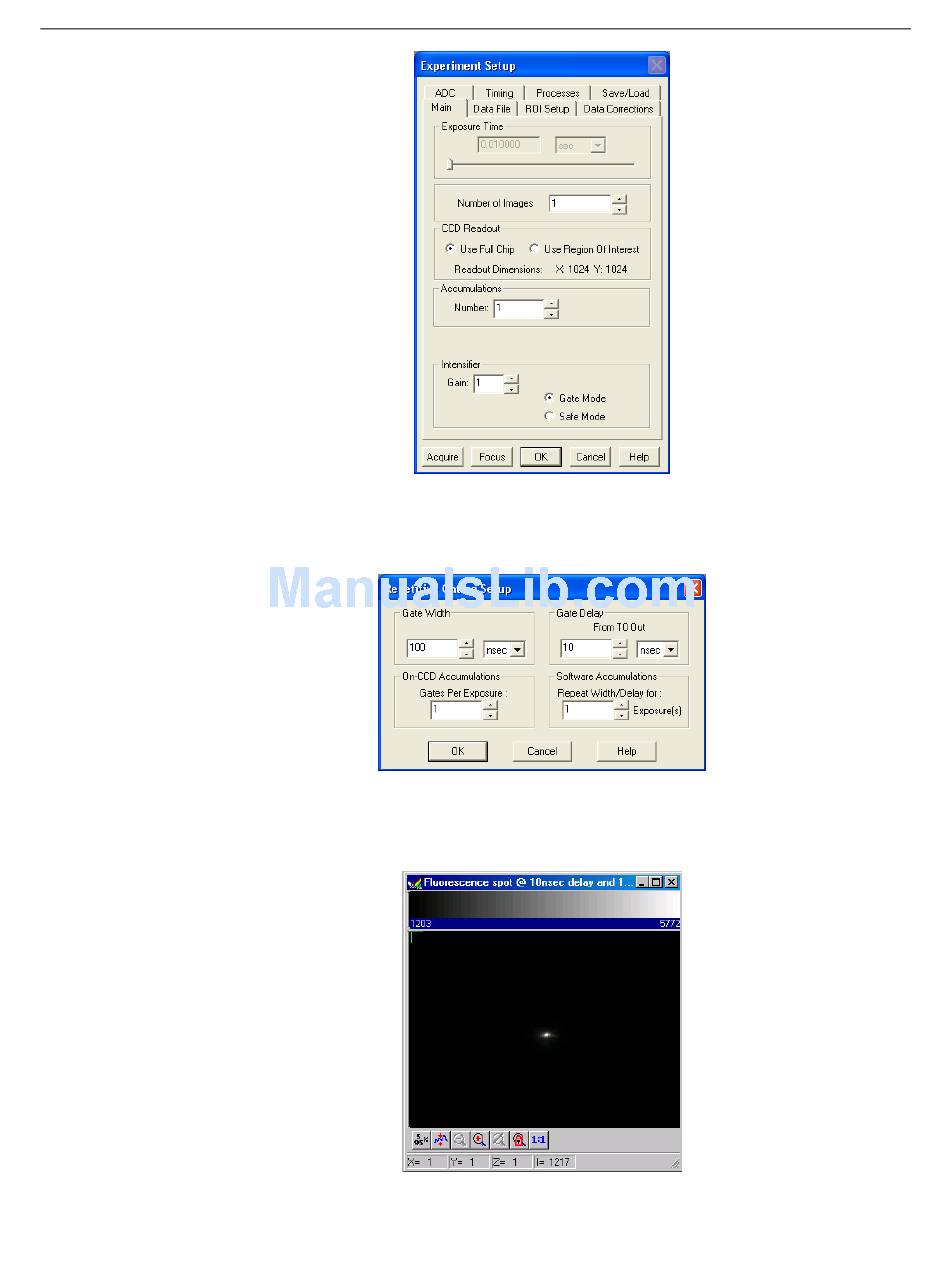

Figure 39. Experiment Setup: Gain Selected

Gate width and gate delay are set in such a way that the intensifier is gated ON during the
entire event (in this case the event is a 60 ns fluorescence).

Figure 40. Repetitive Gating Setup: 100 ns Width, 10 ns Delay

Figure 41 shows the result of the experiment. Figure 42 shows the peak obtained by
binning, in the vertical direction, the entire region around the fluorescence spot.

Figure 41. Single Shot Result: Fluorescence Spot, 100 ns Width, 10 ns Delay
