Appendix D Extender Bracket Kit; Figure 76. Extender Bracket Kit Mounted To Pi-Max3 - Princeton Instruments PI-MAX 3 System Manual

Extender Bracket Kit
An Extender Bracket kit is shipped with each PI-MAX3.After securing the bracket at the
rear of the PI-MAX3, you can mount the PI-MAX3 to any laboratory table with either
25 mm or 1 inch hole spacing.
To secure the plate to the camera:
1. Remove the extender bracket
and the three (3) 6-32x1/4"
flathead screws from the bag.
2. Turn the camera upside down.
3. With the rear of the camera
facing you, place the tongue of
the bracket into the cutout under
the now topmost edge. The text
on the bracket should be visible.
4. Secure the plate with the three
screws.
5. Turn the camera right side up
and secure it to the laboratory
table. If you will be using one or
more mounting holes at the
bottom front of the camera,
tighten the fastener(s) there
before tightening down the
fastener(s) at the extender
bracket.
Note: The table mounting holes
in the plate are elongated to
allow for tolerance variations.
Appendix D

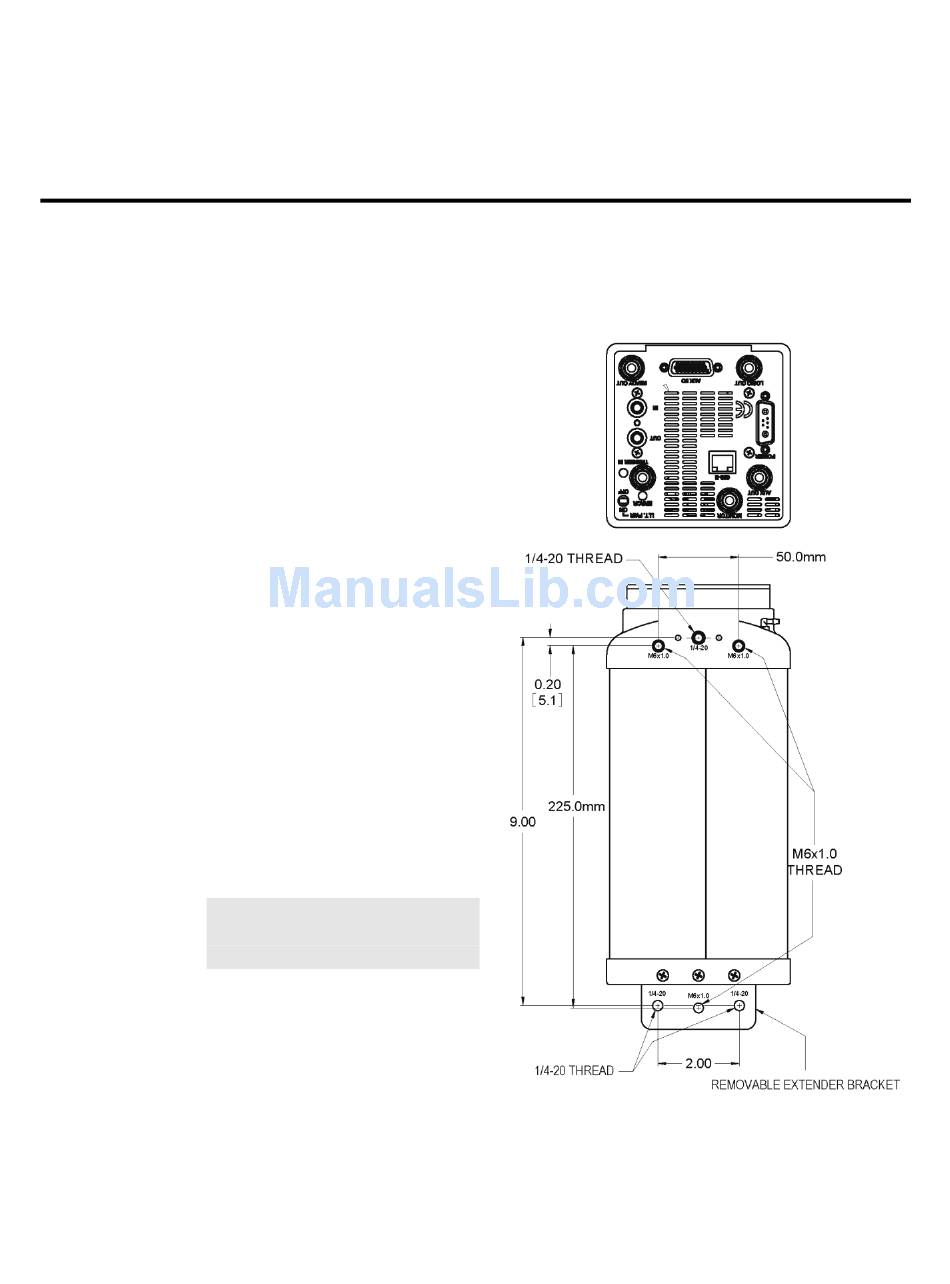

Figure 76. Extender Bracket Kit mounted to
PI-MAX3
119
