Pulsers Dialog Box; Supersynchro Dialog Box - Princeton Instruments PI-MAX 3 System Manual

Appendix C

Pulsers dialog box

The Pulsers dialog box, which opens when Pulsers is selected on the Setup menu,
allows the user to choose whether or not the software is configured to run the
SuperSYNCHRO Timing Generator. To the right of the pulser-selection buttons is the
Setup button that gives access to the pulser setup screen.

SuperSYNCHRO dialog box

Operation of the SuperSYNCHRO Timing Generator becomes available when you select
Pulsers from the Setup menu, click on the SuperSYNCHRO radio button and then
click on the Setup Pulser... button. This opens the SuperSYNCHRO dialog box as
shown above. Note that pulser support must be selected when installing the WinX
application software (WinView/32 or WinSpec/32) for pulser control to be available.
Software

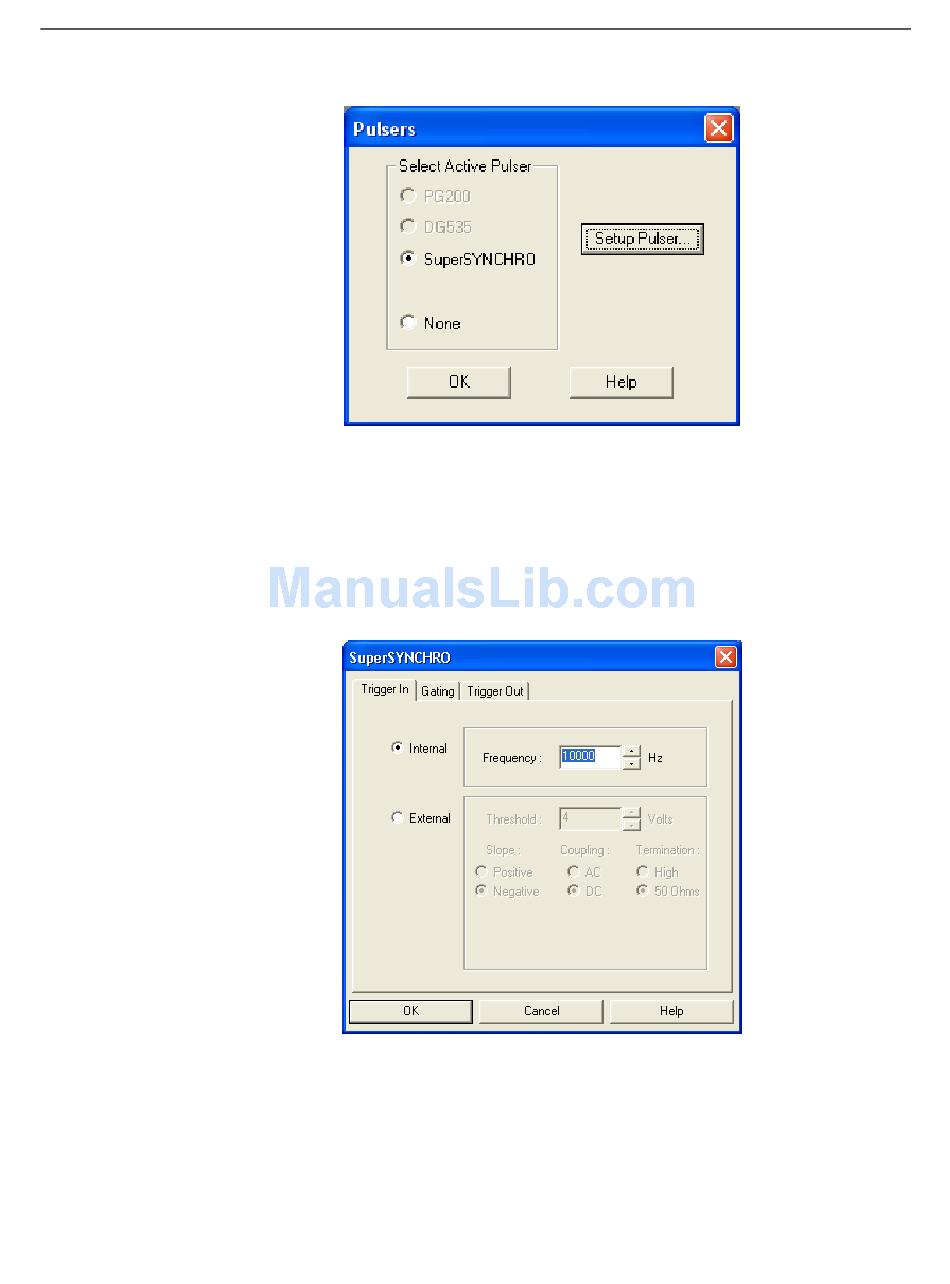

Figure 74. Pulsers dialog box
Figure 75. SuperSYNCHRO dialog box
