4. On the Gating tab page, select Repetitive and
then click on the Setup... button.

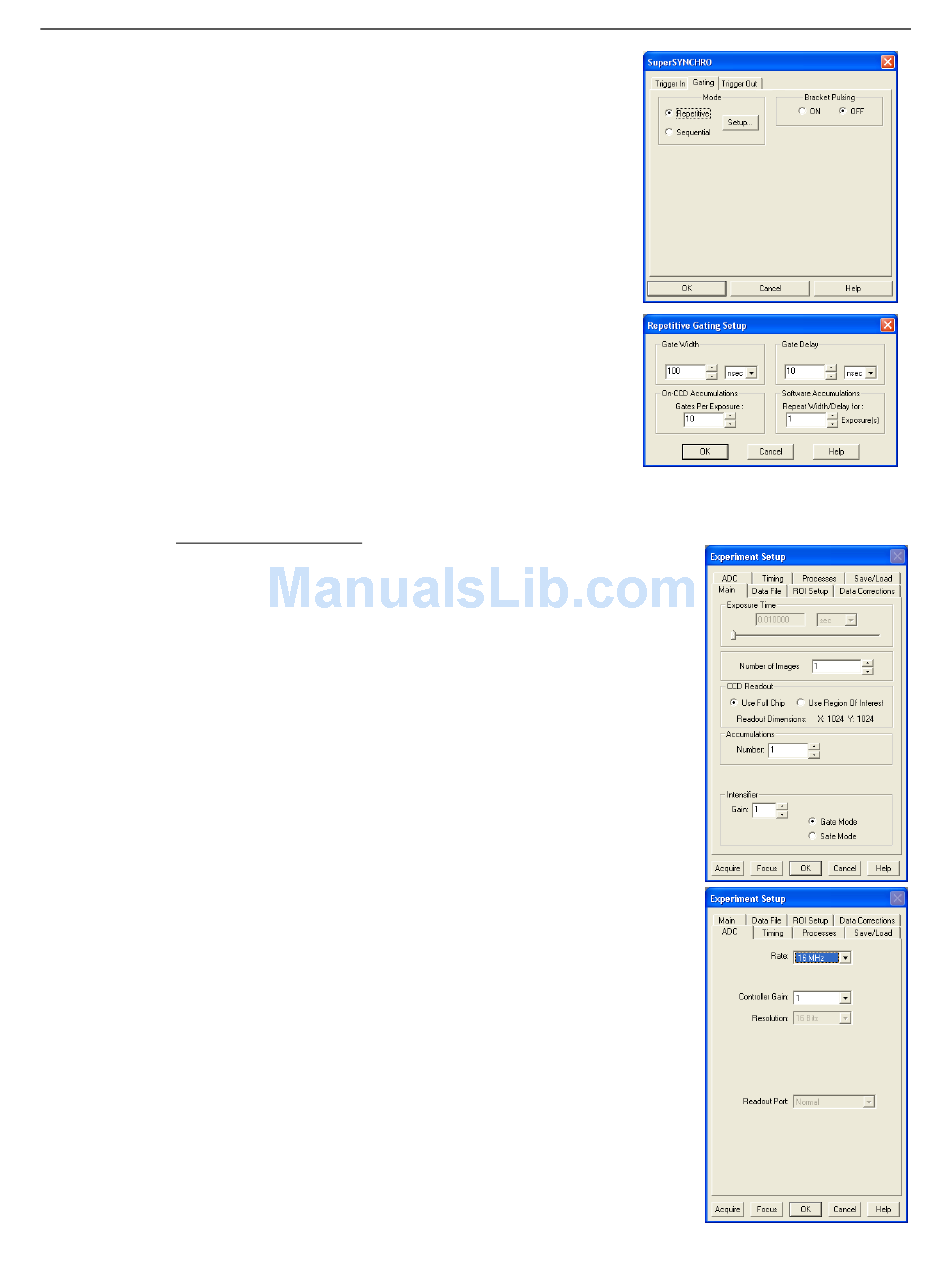

5. On the Repetitive Gating Setup dialog, enter
the following settings:
Gate Width: 50 ms
Gate Delay: 10 ns
Gates per Exposure: 1
Repeat Width/Delay: 1.
6. Click on OK.

Acquisition menu

1. From the Acquisition menu, select Experiment
Setup.
2. On the Main tab page, make the following
settings.
CCD Readout: Use Full Chip
Intensifier
Gain: 1
Gate Mode: selected
3. On the ADC tab page, select the appropriate Rate
(16 MHz for Kodak 1024x1024, 1 MHz for
CCD30-11).
First Light 29
