C-, F-, and Spectroscopy-Mount Adapters
Among the items in the accessory kit shipped with the PI-MAX3 are two adapter kits
(C-mount, F-mount, and spectroscopy mounts are supplied, one of which has been
factory installed on the camera) and a double-ended screwdriver with magnet top.
C-Mount Adapter
Spectroscopy-Mount Adapter
F-Mount Adapter
To change from one adapter to another:
1. Using the supplied screwdriver, remove the four (4) Phillips head screws that
2. Remove the existing adapter and store it in a safe place.
3. Using the same screws, mount the new adapter to the front of the PI-MAX3.
Kit

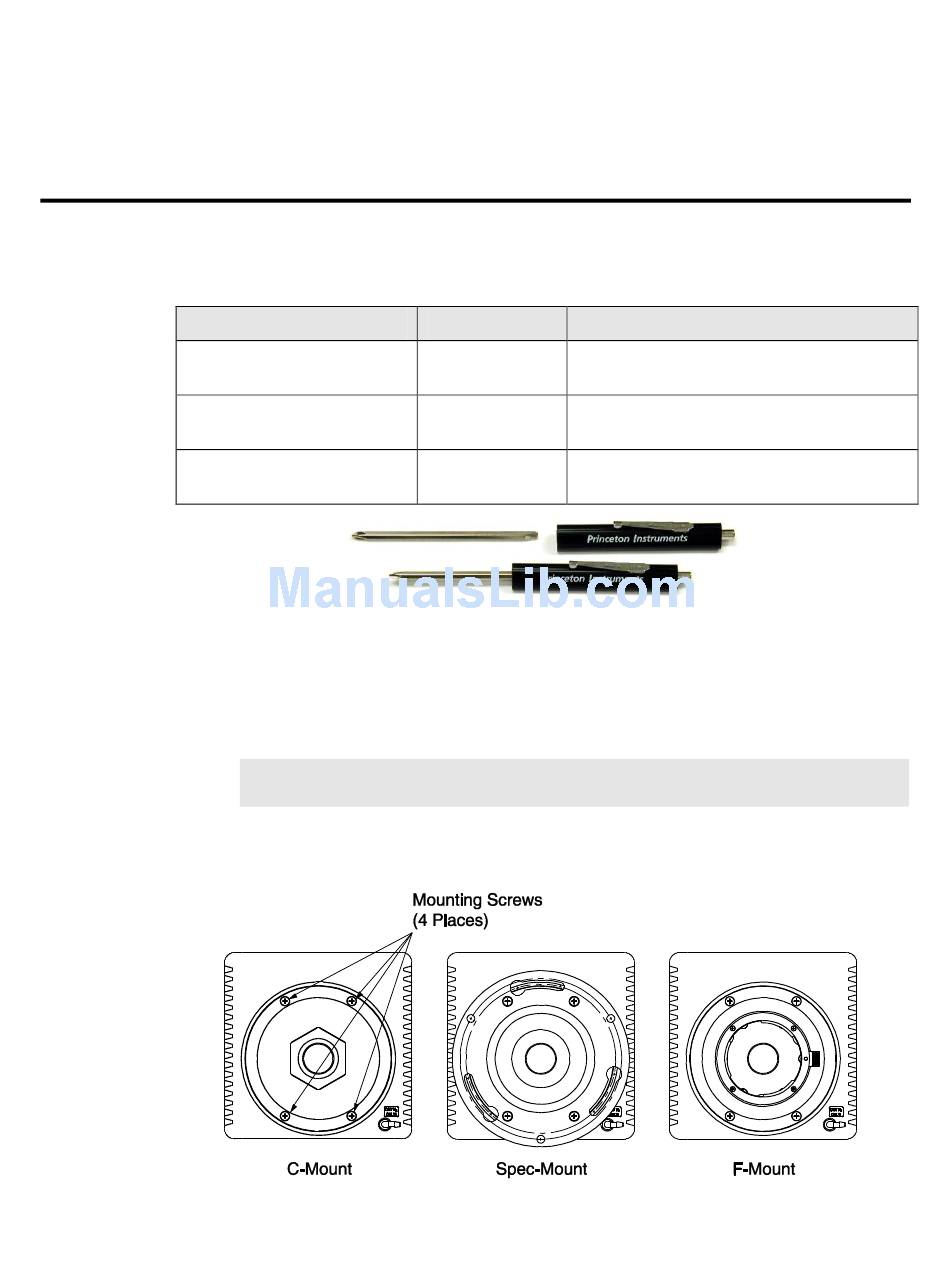

Figure 78. Screwdriver with Reversible Flat and Phillips tips.

secure the adapter to the front of the PI-MAX3.
Note: If the Phillips end of the screwdriver is not available, pull the driver shaft
out of the handle, flip the shaft, and insert the flat end into the handle.
Figure 79. PI-MAX3 Mount Adapters
Part Number
7381-0031 Adapter, 4-40x 7/16 flat head Phillips
screws, dust cover
7381-0032 Adapter, 4-40x7/16 flat head Phillips
screws, dust cover
7381-0033 Adapter, 4-40x 7/16 flat head Phillips
screws, dust cover
