Note: Do not be concerned about either the DC level of this background noise or its
shape unless it is very high, i.e., > 1000 counts with 16-bit A/D. What you see is not
noise. It is a fully subtractable readout pattern. Refer to "Background Subtraction",
page 38, for more information.
If you observe a sudden change in the baseline signal you may have excessive humidity
WARNING!
in the camera's CCD enclosure. Immediately turn off the controller. Then, contact
Princeton Instruments Customer Support for further instructions. See page 146 for
contact information.

Clean Cycles

As stated before, dark charge integrates on the array whenever the camera is on, whether or
not data acquisition is occurring. To minimize the dark charge and other noise in the pixel
wells when data acquisition is idle, the Clean Cycles function shifts accumulated charge in a
predefined number of rows to the shift register and then discards it.
Clean cycles start when you turn on the camera and a clean pattern is programmed into it. At
the end of a cycle, the camera checks to see if a Start Acquisition command has been
received. If it has been received, the user-defined number of cleans (typically 0) will be
then performed before the exposure starts. If a Start Acquisition has not been received, the
next clean cycle begins.
The number of rows that are shifted and discarded during a clean cycle are defined in the
application software (for example, on the WinView/WinSpec Setup|Hardware|Cleans/
Skips tab page). The most effective cleaning occurs when the number of rows equals the
number of rows on the CCD. However, you need to keep in mind that a clean cycle must be
completed before a Start Acquisition command will be implemented. The more rows in a
cycle, the greater the delay between the command receipt and the beginning of an exposure.
Because of this timing issue, the number of rows per clean cycle is usually much smaller than
the number of rows on the array.

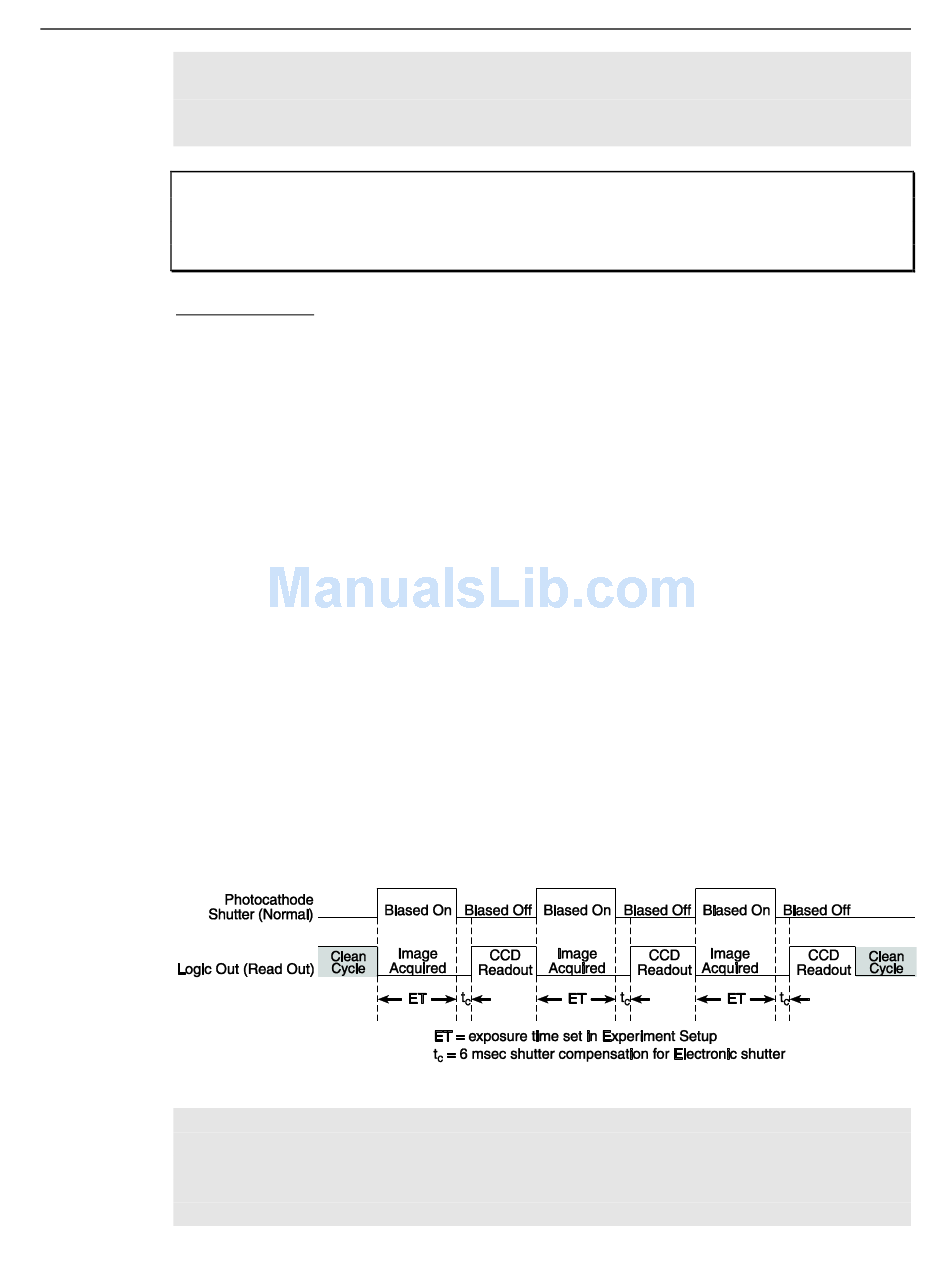

The timing diagram below is for an experiment set up to acquire three (3) images using
Internal trigger mode (selected on SuperSYNCHRO Trigger In tab page) and Gate Mode
(selected on Experiment Setup Main tab page). In this diagram, clean cycles occur before
the first exposure and after the last readout period. They do not need to occur between
exposures since each readout cleans the array before the next exposure starts.
Note: The start of the exposure is signaled by the Read Out output of the LOGIC OUT
connector going low but will not occur until the current clean cycle and the additional
user-defined number of cleans (typically 0) have finished. "Number of Cleans" is defined
on the Setup|Hardware|Cleans/Skips tab page. If you enter a value other than "0", you
will further delay the start of the exposure by that number of clean cycles.
General Operation Factors

Figure 7. Clean Cycles in Internal Trigger Mode of Operation
