e. Click on OK to program the SuperSYNCHRO.
10. Set up the experiment parameters from the Experiment Setup dialog box.
a.
b.
PI-MAX

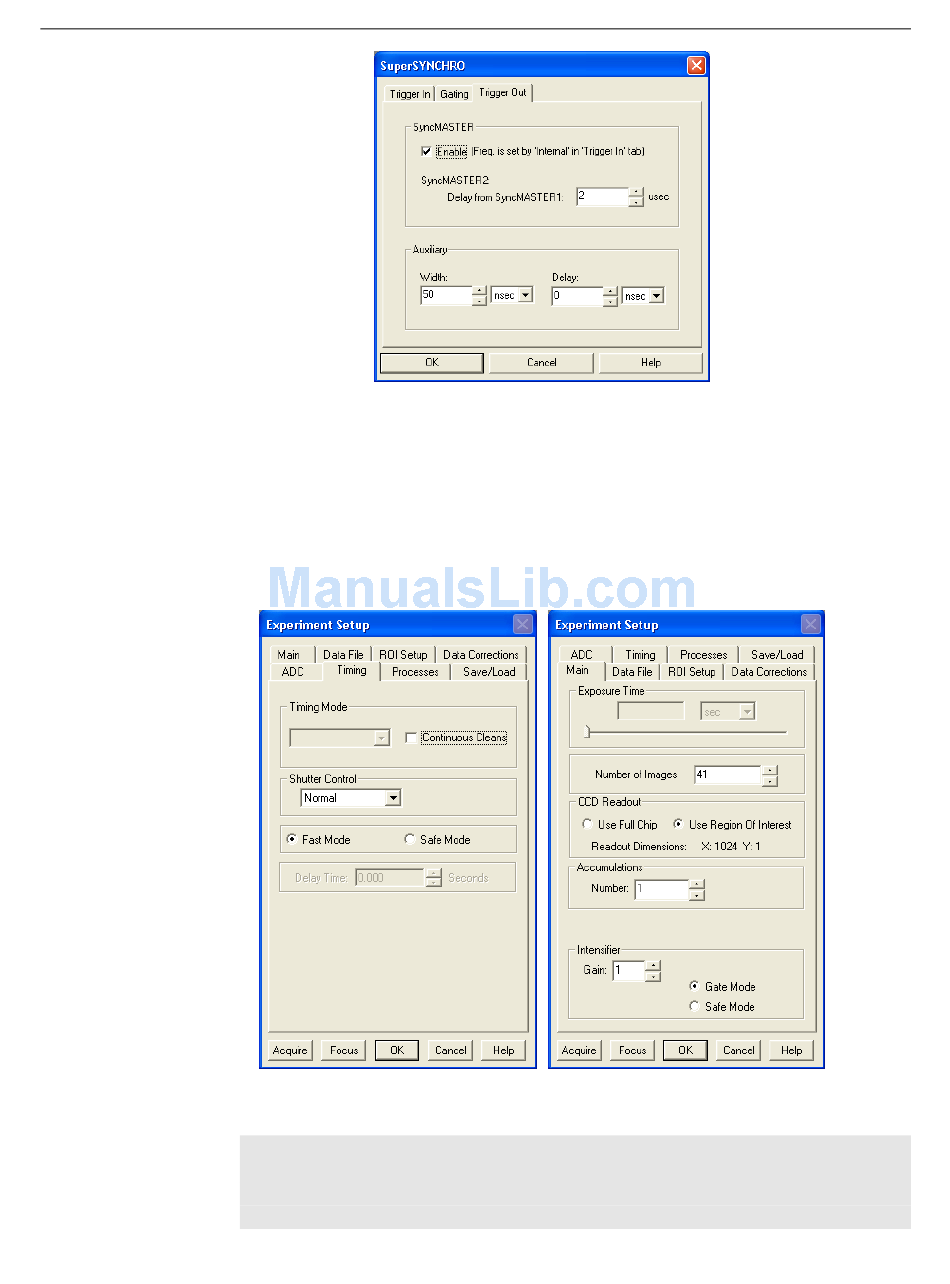

Figure 33. Trigger Out tab page

On the Timing tab page, change the timing as shown in Figure 34.
On the Main tab page, enter the Gain value and switch to Gate Mode . The
number of spectra will be automatically set depending on the number entered on
the Sequential Gating Setup dialog box (Figure 32).

Figure 34. Experiment Setup: Timing and Main tab pages

Note: In Gate Mode , the photocathode is biased on only for the time that each
gate pulse is applied. This limits the risk of damage resulting from room light.
However, there is a risk of damaging overload from intense light sources such as
lasers.
®
