Nexys4 DDR™ FPGA Board Reference Manual
Callout Component Description
1 Power select jumper and battery header
2 Shared UART/ JTAG USB port
3 External configuration jumper (SD / USB)
4 Pmod port(s)
5 Microphone
6 Power supply test point(s)
7 LEDs (16)
8 Slide switches
9 Eight digit 7-seg display
10 JTAG port for (optional) external cable
11 Five pushbuttons
12 Temperature sensor
A growing collection of board support IP, reference designs, and add-on boards are available on the Digilent
website. See the Nexys4 DDR page at
Copyright Digilent, Inc. All rights reserved.
Other product and company names mentioned may be trademarks of their respective owners.

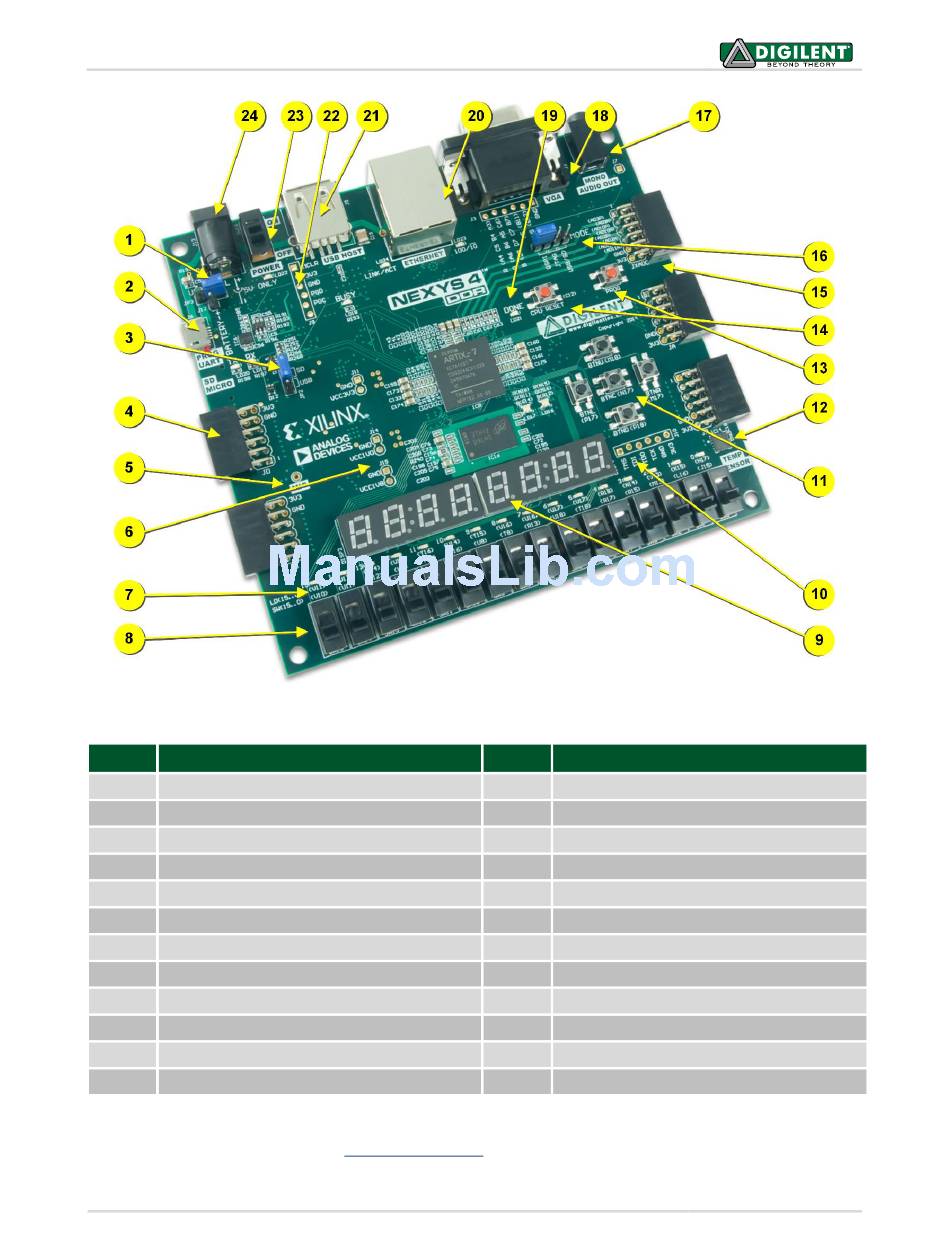

Figure 1. Nexys4 DDR board features.
Callout
13
14
15
16
17
18
19
20
21
22
23
24
www.digilentinc.com for more information.
Component Description
FPGA configuration reset button
CPU reset button (for soft cores)
Analog signal Pmod port (XADC)
Programming mode jumper
Audio connector
VGA connector
FPGA programming done LED
Ethernet connector
USB host connector
PIC24 programming port (factory use)
Power switch
Power jack
