Nexys4 DDR™ FPGA Board Reference Manual
8.1

HID Controller

The Auxiliary Function microcontroller hides the USB HID protocol from the FPGA and emulates an old-style PS/2
bus. The microcontroller behaves just like a PS/2 keyboard or mouse would. This means new designs can re-use
existing PS/2 IP cores. Mice and keyboards that use the PS/2 protocol use a two-wire serial bus (clock and data) to
communicate with a host. On the Nexys4 DDR, the microcontroller emulates a PS/2 device while the FPGA plays
the role of the host. Both the mouse and the keyboard use 11-bit words that include a start bit, data byte (LSB
first), odd parity, and stop bit, but the data packets are organized differently, and the keyboard interface allows bi-
directional data transfers (so the host device can illuminate state LEDs on the keyboard). Bus timings are shown in
Figure 8.
The clock and data signals are only driven when data transfers occur; otherwise, they are held in the idle state at
high-impedance (open-drain drivers). This requires that when the PS/2 signals are used in a design, internal pull-
ups must be enabled in the FPGA on the data and clock pins. The clock signal is normally driven by the device, but
may be held low by the host in special cases. The timings define signal requirements for mouse-to-host
communications and bi-directional keyboard communications. A PS/2 interface circuit can be implemented in the
FPGA to create a keyboard or mouse interface.
When a keyboard or mouse is connected to the Nexys4 DDR, a "self-test passed" command (0xAA) is sent to the
host. After this, commands may be issued to the device. Since both the keyboard and the mouse use the same
PS/2 port, one can tell the type of device connected using the device ID. This ID can be read by issuing a Read ID
command (0xF2). Also, a mouse sends its ID (0x00) right after the "self-test passed" command, which distinguishes
it from a keyboard.
Copyright Digilent, Inc. All rights reserved.
Other product and company names mentioned may be trademarks of their respective owners.
SD MICRO (J1)
microSD
FPGA
Config
SD/USB (JP2)
2
PS2_CLK
PS2_DAT
HOST (J5) PIC24FJ128

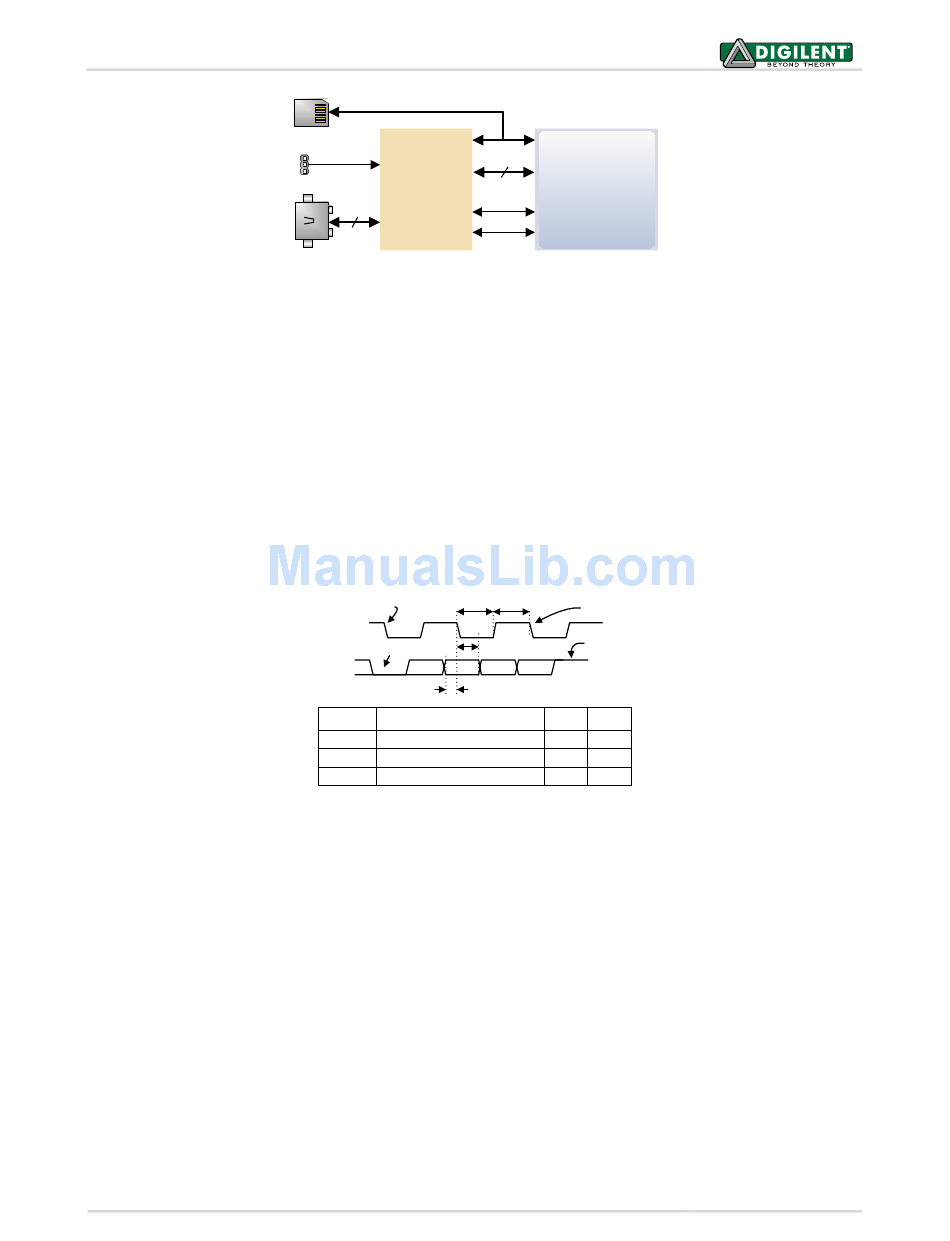

Figure 7. Nexys4 DDR PIC24 connections.
Edge 0
CLOCK
'0' start bit
DATA
Tsu
Symbol Parameter
T Clock time
CK
Data-to-clock setup time
T
SU
T Clock-to-data hold time
HLD
Figure 8. PS/2 device-to-host timing diagram.
User I/O
7
FPGA
Config
F4
B2
Artix-7
Tck Tck
Edge 10
'1' stop bit
T hld
Min Max
30us 50us
5us 25us
5us 25us
