provides access to voltage monitors that are present on each of the FPGA's power rails, and a temperature sensor
that is internal to the FPGA. For more information on using the XADC core, refer to the Xilinx document titled "7
Series FPGAs and Zynq-7000 All Programmable SoC XADC Dual 12-Bit 1 MSPS Analog-to-Digital Converter."

12 MicroSD Slot

The Nexys4 DDR provides a microSD slot for both FPGA configuration and user access. The on-board Auxiliary
Function microcontroller shares the SD card bus with the FPGA. Before the FPGA is configured the microcontroller
must have access to the SD card via SPI. Once a bit file is downloaded to the FPGA (from any source), the
microcontroller power cycles the SD slot and relinquishes control of the bus. This enables any SD card in the slot to
reset its internal state machines and boot up in SD native bus mode. All of the SD pins on the FPGA are wired to
support full SD speeds in native interface mode, as shown in Figure 21. The SPI is also available, if needed. Once
control over the SD bus is passed from the microcontroller to the FPGA, the SD_RESET signal needs to be actively
driven low by the FPGA to power the microSD card slot. For information on implementing an SD card controller,
refer to the SD card specification available at www.sdcard.org.
VDD
DAT2
DAT1
CMD
CLK
DAT3
DAT0
CARD_DETECT
SD MICRO (J1)

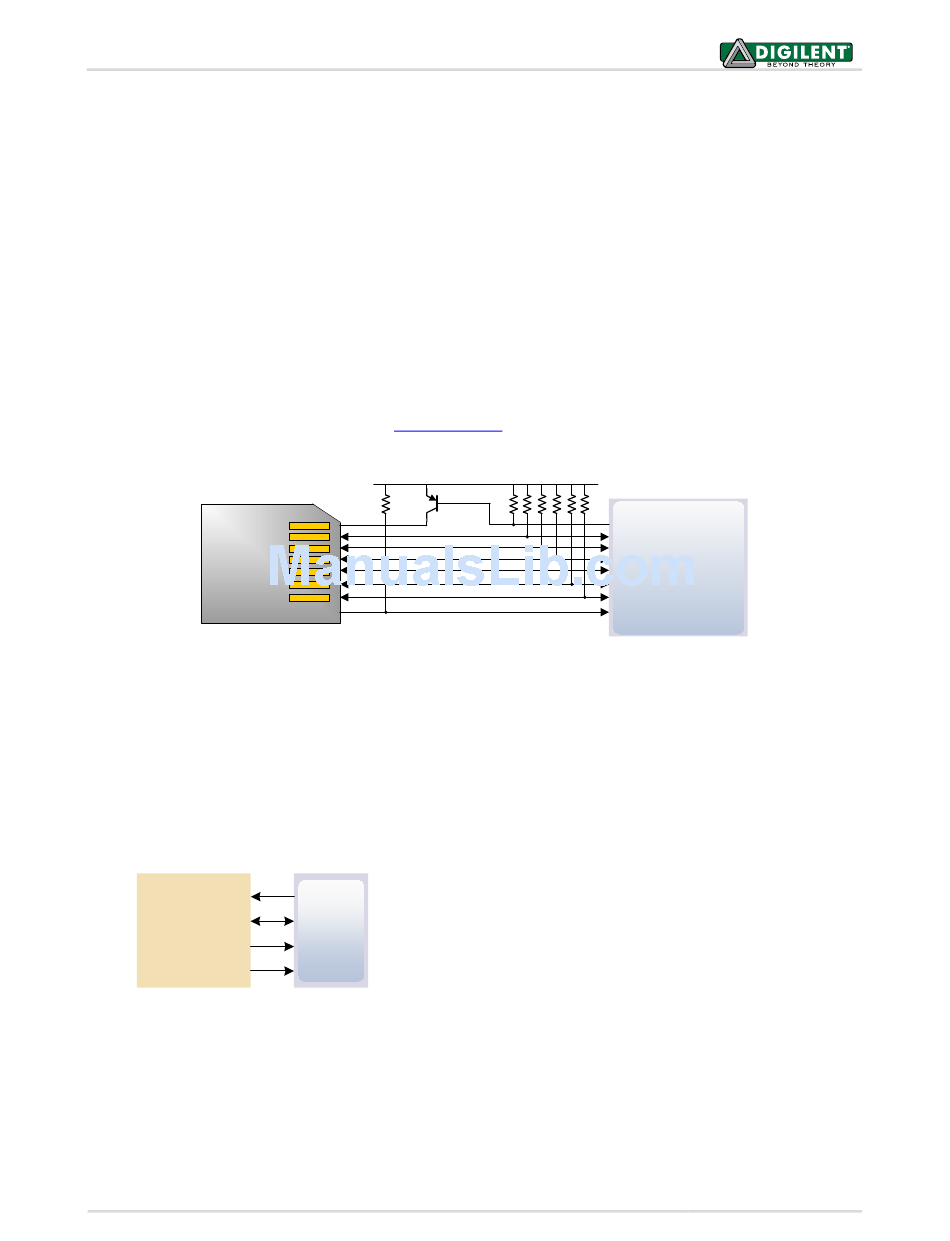

Figure 21. Artix-7 microSD card connector interface (PIC24 connections not shown).

13 Temperature Sensor

The Nexys4 DDR includes an Analog Device ADT7420 temperature sensor. The sensor provides up to 16-bit
resolution with a typical accuracy better than 0.25 degrees Celsius. The interface between the temperature sensor
and FPGA is shown in Figure 22.
SCL
SDA
TMP_INT
TMP_CT
ADT7420
13.1 I2C Interface
The ADT7420 chip acts as a slave device using the industry standard I2C communication scheme. To communicate
with ADT7420 chip, the I2C master must specify a slave address (0x4B) and a flag indicating whether the
communication is a read (1) or a write (0). Once specifications are made for communication, a data transfer takes
