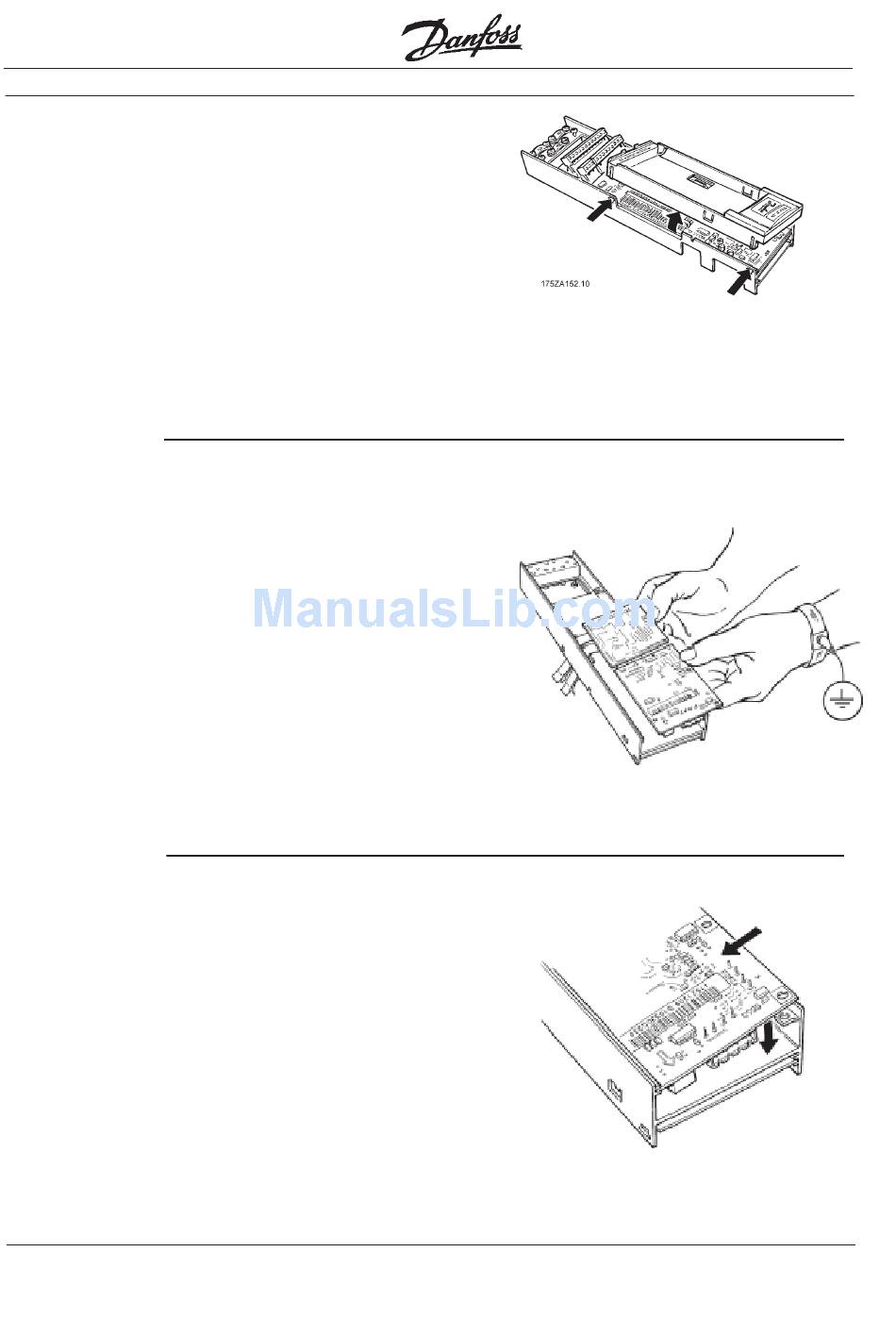

Danfoss VLT 5000 Instruction Manual page 16

7. Remove
LCP Cradle
8. Ribbon
Cable
Routing
9. Insert
LonWorks
Card
MG.60.N1.22 - VLT is a registered Danfoss trademark
IP20/NEMA 1 and Bookstyle
• Carefully push in tabs at corners of LCP
cradle to release clips. Pull out to
disengage clips and lift cradle free.
• Route ribbon cables from LonWorks
memory card through slot at side of
control board cassette.
• Insert edge of LonWorks cards into slot
in side of cassette and align screw
holes.
VLT ® 5000 / VLT ® 6000 HVAC / VLT ® 8000 AQUA
15
