Free Topology Network Configuration - Danfoss VLT 5000 Instruction Manual

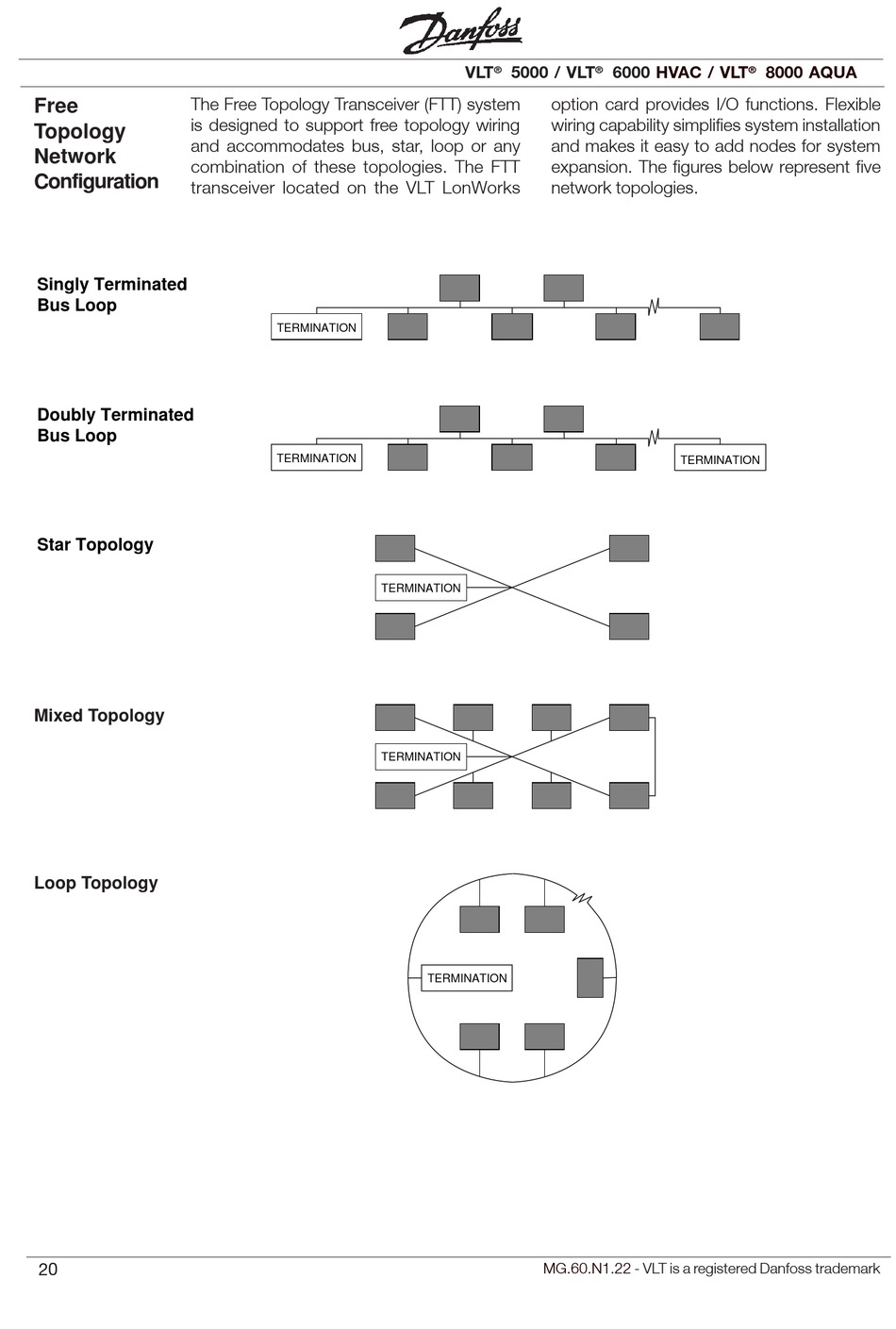

Free The Free Topology Transceiver (FTT) system
is designed to support free topology wiring
Topology
and accommodates bus, star, loop or any
Network
combination of these topologies. The FTT
Configuration
transceiver located on the VLT LonWorks
Singly Terminated
Bus Loop
Doubly Terminated
Bus Loop
Star Topology
Loop Topology
Mixed Topology
Loop Topology
Mixed Topology
20
TERMINATION
TERMINATION
TERMINATION
TERMINATION
TERMINATION
VLT ® 5000 / VLT ® 6000
option card provides I/O functions. Flexible
wiring capability simplifies system installation
and makes it easy to add nodes for system
expansion. The figures below represent five
network topologies.
MG.60.N1.22
HVAC / VLT ® 8000 AQUA
TERMINATION
- VLT is a registered Danfoss trademark
