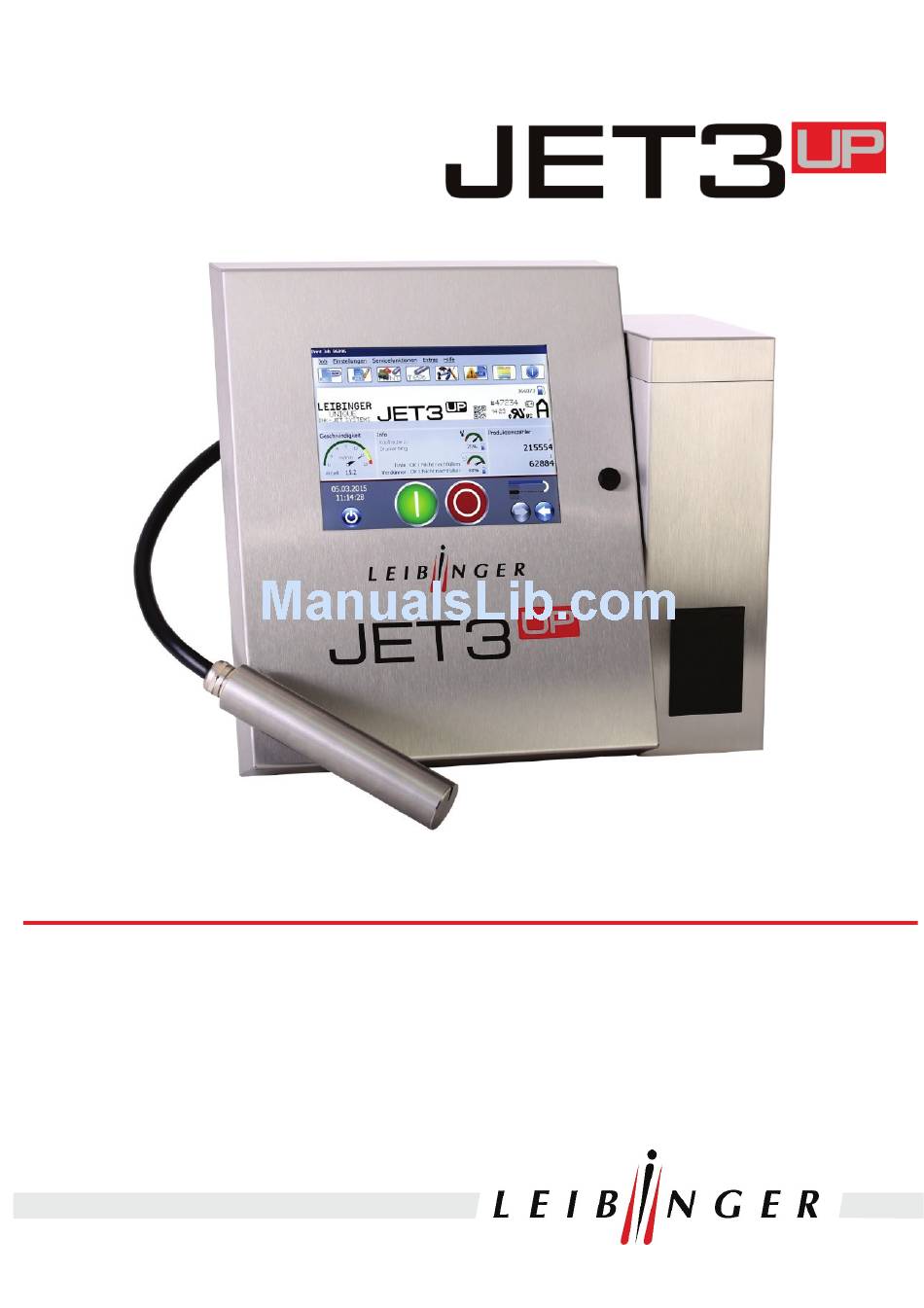

Page 1 Operating Manual V1.06 Please keep for future reference!
Page 3: Table Of Contents
Group 1 Table of contents Page 1 1 General Information 1.1 Table of Contents 1 General Information ..................1 1.1 Table of Contents ..................1 1.2 Group directory ..................10 1.3 Publisher ....................11 1.4 Symbolism of the manual ................13 1.5 Introduction ....................
Page 4 Page 2 Table of contents Group 1 4.5 Performance parameter ................37 4.6 Fonts ..................... 38 4.7 Types of writing ..................38 4.8 Font combinations ................... 38 4.9 Function ....................38 4.10 Software ....................39 5 Transport/Start up ..................41 5.1 Transport, storage, shipping ..............
Page 5 Group 1 Table of contents Page 3 6.2.3 Drop charging .................. 69 6.2.4 Drop deflection ................69 6.2.5 Creation of a character ..............69 6.2.6 Summary of the individual proceduresFigure ......... 70 6.2.7 Example of use ................71 6.3 Safety instructions ................... 71 6.4 User interface and printer operation ............
Page 6 Page 4 Table of contents Group 1 7.3.1.4 Interface (Encoder interface) ............134 7.3.1.5 Factory Settings ............... 136 7.3.1.6 IP-Address ................138 7.3.1.7 Network ID ................140 7.3.1.8 Contact details ................. 142 7.3.1.9 Solvent Saving Mode ..............144 7.3.1.10 Remote sreen ................. 146 7.3.1.11 Error Config ................
Page 7 Group 1 Table of contents Page 5 7.4.5.2 Export log file ................177 7.4.6 Print history protocol ............... 179 7.4.6.1 Export <Print History Protocol> ..........180 7.4.7 Service interval ................182 7.4.8 Error Format .................. 183 7.5 Extra ....................185 7.5.1 Test print ..................
Page 8 Page 6 Table of contents Group 1 7.6 Help ..................... 226 7.6.1 <Information> dialog box ............... 227 7.6.1.1 Save info file ................229 8 Job editor ....................232 8.1 Window layout and menu structure ............232 8.2 Job editor tools ..................235 8.2.1 Editing tools ..................
Page 9 Group 1 Table of contents Page 7 8.5.2.6 Controls - Monitoring functions ........... 270 8.5.2.6.1 PrintGo monitoring ............... 270 8.5.2.6.2 StrokeGo monitoring ............270 8.5.2.6.3 Sensor monitoring ............... 271 8.5.2.6.4 Sensor monitoring – PrintGo length ........273 8.5.2.7 Drop flight time ................ 274 8.5.2.8 PrintStop reaction ..............
Page 10 Page 8 Table of contents Group 1 8.7.3.1.5 Leading zeros (Left-hand zeros)..........322 8.7.3.1.6 Step width ................. 322 8.7.3.1.7 Repetitions ................. 322 8.7.3.1.8 Counting direction ............... 323 8.7.3.1.9 End value controlLoop/Stop after end value ......323 8.7.3.1.10 Counter reset (methods) ............. 323 8.7.3.1.11 Counter increment (methods) ..........
Page 11 Group 1 Table of contents Page 9 10.1.1 Safety information ................ 367 10.1.2 TAG-reader .................. 369 10.1.2.1 Execution of the TAG-activation and refilling ....... 369 10.1.3 Daily servicing work ..............376 10.1.4 Weekly servicing work ..............376 10.1.5 Annual servicing work ..............376 10.1.6 Spare parts and wear and tear parts ..........
Page 12: Group Directory
Page 10 Group Directory Group 1 1.2 Group directory The group directory serves as a guide through the device manual at hand to be able to find specific subject areas quickly. Group Directory Page General information ..............1 Table of contents ............... 1 Group directory.................
Page 13: Publisher
Group 1 Introduction Page 11 1.3 Publisher For questions regarding the operation and running of the LEIBINGER JET3upup as well as in service case please contact the listed dealer address. Dealer address Paul Leibinger GmbH & Co. KG Marking&Coding Systems Daimlerstraße 14...
Page 14 Nevertheless errors cannot be excluded. Consequently no warranty can be assumed for the correctness of the content of this manual and no claims can be asserted against Paul Leibinger GmbH & Co. KG. We shall be grateful for information regarding possible printing errors as well as for suggestions for the further optimisation of the device manual.
Page 15: Symbolism Of The Manual
Group 1 Introduction Page 13 1.4 Symbolism of the manual The following symbols and pictograms are used in this manual in order to point out possible dangers and necessary user information. Risk due to electricity Risk due to flammable materials Risk due to pressure Risk due to electrostatic discharges...
Page 16: Introduction
It is only through the use of inks and solvents from Paul Leibinger GmbH & Co. KG that optimum operating characteristics can be achieved. Should other inks and solvents be used all warranty claims will expire.
Page 17: Document Information
At this point we wish to make explicit reference to the fact that it is only when using solvent and ink from Paul Leibinger GmbH & Co. KG that the optimum operating characteristics can be achieved. In the event of use of other inks and solvents all warranty entitlements shall cease to apply.
Page 18 Page 16 Introduction Group 1 Release R1.06 JET3up...
Page 19: Safety
Page 17 2 Safety 2.1 Scope of risks The high performance industrial printer LEIBINGER JET3up has been built in accordance with state-of-the-art standards and recognized safety requirements and has been equipped with protective devices. The InkJet-printer works with flammable liquids which are ink and solvent.
Page 20: Structure Of Safety Instructions
Page 18 Safety Group 2 2.2 Structure of safety instructions DANGER In conjunction with the signal word, "Danger", the respective symbols represent an immediate threat to the life and health of persons. Non-compliance with these instructions will lead to a severe impact on health or even life-threatening injuries.
Page 21: Intended Use
Group 2 Safety Page 19 2.3 Intended use The high performance industrial printer JET3up serves exclusively the contact-free marking, inscribing and coding of surfaces using the continuous ink jet process. The high performance printer can be used on the most varying materials (e.g. metal, synthetic material, glass, paper, wood, pressed materials, rubber etc.) with both, smooth as well as uneven, rough and stepped surfaces.
Page 22: Safety Sticker
Page 20 Safety Group 2 2.4 Safety sticker Figure 1 Safety sticker Safety sticker Release R1.06 JET3up...
Page 23: Operating Staff
Group 2 Safety Page 21 2.5 Operating staff Only trained personnel must operate the device. The personnel must have the corresponding mechanical and electrical training to operate the inkjet printer professionally. The operator is responsible for third parties in the working area of the inkjet printer.
Page 24: Dangers Due To Electric Energy
The electrical and electronic components of the high performance printer are under voltage. The device must only be opened by trained personnel or by Leibinger service technicians. Prior to the opening of the device the device must be switched off and the mains plug removed.
Page 25: Personal Protective Equipment
Prior to assembly the place of setting up must be cleaned of dirt and contamination (residue of lubricants etc.). The working place surroundings should be kept clean at all times in order to ensure unrestricted access to the LEIBINGER JET3up device. WARNING Basics –...
Page 26 Page 24 Safety Group 2 WARNING Danger of explosion!  The device must not be operated in potentially explosive areas!  The installation has to be carried out according to the installation instructions of the manufacturer!  Precautions regarding electrostatics have to be carried out! ...
Page 27: Dangers Through Consumables
Group 2 Safety Page 25 2.10 Dangers through consumables Inks are colored liquids on a solvent basis. The safety instructions on the containers of the consumables as well as the instructions in the group Accident prevention must be especially adhered to in order to exclude dangers for persons and the surroundings.
Page 28 Page 26 Safety Group 2 WARNING Always ground yourself and the printer to the same potential before filling the reservoirs! Simply touch the housing of the printer to discharge the equipment or you must stand on a grounded surface wearing ESD shoes during filling! Burning gases and liquids may cause severe burns.
Page 29: Figure 2 - Labels For Marking (Ink/Solvent)
Group 2 Safety Page 27 An uncluttered, clean working environment and regular, safe disposal of waste materials minimize the risk of spontaneous ignition and other fire hazards. Many inks used in ink jet printing contain “nitro-cellulose” as the binder and remain highly flammable even when they are dry.
Page 30: Conformity
CD. Name and address of the person who is authorised to arrange the technical documentation: Volker Teufel, authorised documentation agent, Paul Leibinger GmbH & Co. KG, D- 78532 Tuttlingen (Germany) Annotation: The device fulfills the fundamental health and safety requirements of the directive 94/9/EU, but is intended only for use outside of explosive areas.
Page 31 Group 2 Safety Page 29 JET3up Release R1.06...
Page 32: Accident Prevention
Page 30 Accident prevention Group 3 3 Accident prevention The following presentation shows the measures in the event of an accident with ink and solvent with the danger marking, Previous warning labels highly irritant flammable 3.1 Storage and handling GENERAL These products must only used at points that are free from open flames and other ignition sources.
Page 33: First Aid Measures
Group 3 Accident prevention Page 31 3.2 First aid measures 3.2.1 General first aid The generally valid procedures apply.  Initiate emergency measures  Comply with the rescue chain Rescue chain (Immediate and correct assistance) Immediate measures Emergency call First aid Emergency services Hospital Conduct after accidents (initiate emergency measures) ...
Page 34: Fire Fighting Measures
Page 32 Accident prevention Group 3 3.3 Fire fighting measures 3.3.1 Procedure in case of fire The following procedure is merely a recommendation and must be adapted to the respective operating situation.  Stay calm! Enter tel. no.  Report the fire! is reporting? ...
Page 35: Fire Fighting Of Ink And Solvents
Group 3 Accident prevention Page 33 3.3.2 Fire fighting of ink and solvents EXTINGUISHING Recommended: AGENTS Alcohol-resistant foam, spray water/mist, CO or powder DO NOT use water jets. Cool closed containers exposed to the fire with spray water. RISK OF FIRE AND As the product contains combustible organic constituents, a EXPLOSION thick, black smoke develops in the event of fire that contains...
Page 36: Measures In The Event Of Accidental Release (Spillage)
Page 34 Accident prevention Group 3 3.4 Measures in the event of accidental release (spillage) GENERAL Spilled ink and solvent should be removed immediately. Used wiping material could pose a potential fire hazard and have to be disposed in accordance with the regulations. PRECAUTIONARY Switch off sources of ignition and ventilate room.
Page 37 Group 3 Accident prevention Page 35 JET3up Release R1.06...
Page 38: Technical Data
Page 36 Accident prevention Group 4 4 Technical data 4.1 Dimensions, weights, connections Cabinet : Stainless steel Width 486 mm, depth 286 mm, height 446 mm Weight: 20,5 kg Print head: Stainless steel cabinet Print head SK6: Length (total) 212 mm, diameter 43 mm, Option Print head SK4 : Length (total) 265 mm, diameter 43 mm, Length of the print head lead 3 m, as option 6 and 10 m available Weight: 1,5 kg...
Page 39: Electrical Connection Values
Group 4 Accident prevention Page 37 4.2 Electrical connection values Input voltage (voltage range): 100 - 240 V AC, 50-60 Hz Current consumption: max. 0,56 A (peak) at 100 V AC max. 0,25 A (peak) at 240 V AC Power consumption: typ.
Page 40: Fonts
Page 38 Accident prevention Group 4 4.6 Fonts All fonts can be combined arbitrarily Printing of 1-5 lines Tower print Capitals and lower case letters, umlaut, special characters Fonts 5x5 up to 32x24 Multistage contrast- and bold text All common Barcodes (Barcode 39, Code 128C, Postnet etc.) and Data-Matrix-Codes (ECC 200), GS1- Data-Matrix (EAN/ECC) 4.7 Types of writing...
Page 41: Software
Group 4 Accident prevention Page 39 4.10 Software Functions:  Selectable print delay or print repetition  Any combination of constant and variable texts within a printing line  32 individually programmable counters  Current date- and time printing, original date ...
Page 42 Page 40 Accident prevention Group 4 Release R1.06 JET3up...
Page 43: Transport/Start Up
In order to avoid damage during transport the following instructions must be observed. The LEIBINGER JET3up must only be transported in a standing position. It is packed in a cardboard box with special polystyrene inserts for safe dispatch during delivery.
Page 44: Figure 4 - Movable Underframe (Device Support)
Page 42 Transport/Start up Group 5 Figure 4 Movable base frame for JET3up For this it is expedient to place the device on a device support. The device has four fastening possibilities for secure seting up and should be screw connected at the place of setting up.
Page 45: Installation
The LEIBINGER JET3up should be connected to AC voltage 100 - 240 V AC, 50 – 60 Hz with an appropriate plug. The socket should be provided with a clear designation (e.g.: JET3up).
Page 46: Figure 6 - Grounding Scematic And Grounding Point
Page 44 Transport/Start up Group 5 INFORMATION Please note, that the grounding point (6) is hidden behind the round grounding-symbol-label (7) on the lower left hand side of the cabinet of the printer. Figure 6 Grounding scematic and grounding point Grounding schematic Ground/earth 1 –...
Page 47: Explosion Protection
Group 5 Transport/Start up Page 45 Grounding instructions  A separate grounding line (min. cable cross-section 2,00 mm ) to the printer cabinet must be installed before the print head is mounted in the installation and before the printer is plugged to the power supply. ...
Page 48: Figure 7 - Print Head Installation (Example)
Page 46 Transport/Start up Group 5 Figure 7 Print head installation (Example) = Conveying direction 1 – Product 4 – Sensor 6 – Umbilical (Hose connection) 2 – Conveyor belt 5 – Print head 7 – Print head adapter 3 – Encoder (accessories) ATTENTION The print head should be attachted vibration-free.
Page 49: External Print Head Ventilation (Optional Equipment)
 The printer is operated in test mode and the ink is just discharged into a service tray (e.g. a Leibinger cleaning station). Without any safety measures the ink in the service tray may be charged up. In order to avoid this critical situation the print head and the service tray have to be connected with a ground cable.
Page 50 Page 48 Transport/Start up Group 5 Discharging the ink into a service tray Print head Fire hazard Service tray Leibinger Cleaning station Explosion hazard Ground cable Connect print head with service tray Electrostatic- sensitive device Cleaning the print head Fire hazard...
Page 51: Start-Up Commissioning
Group 5 Transport/Start up Page 49 5.4 Start-up Commissioning For a safe transport some hydraulic components are supplied with transportation protection (cable ties) and the reservoir tanks are evacuated. The following steps have to be carried out before the initial operation ...
Page 52: Figure 8 Remove Transportation Safety Devices
Page 50 Transport/Start up Group 5 Figure 8 Remove transportation safety devices  1 – Backplane (Hydraulic cabinet) 2 – Fixing screws 3 – Main filter Release R1.06 JET3up...
Page 53: Fill Reservoir Tank - Step 2
The reservoir tanks and the sealing cap are color-coded and labelled to avoid any mistakes in filling. Additionally the sealing caps are marked with the ink-no. or solvent- no. which are admissible for the device. For correct handling the LEIBINGER re-filling system allows an odor- and splash free refilling of the consumables.
Page 54 Page 52 Transport/Start up Group 5 Proceeding (Example: Filling of solvent) WARNING Risk of fire and injury! Absolutely observe!  Before filling the device with the consumables, measures for the electrostatic discharge have to be made!  Highly flammable! Burning gases and liquids may cause severe burns.
Page 55: Figure 9 Reservoir Tank And Re-Filling Process
Group 5 Transport/Start up Page 53 Figure 9 Reservoir tank and re-filling process Indicating label Marking of reservoir tanks N.º 70000-00001 N.º 77001-00001 Marking of the admissible ink Marking of the admissible (Example) solvent (Example) 1 – Reservoir tank unit 4 –...
Page 56: Carry Out Filling Routine - Step 3
Page 54 Transport/Start up Group 5 5.4.3 Carry out filling routine – Step 3 After filling the consumables you have to carry out the filling routine. Proceeding: Figure 10 Filling routine (Step 1) 1 – TFT-Touch-Display 5 – Tab <Spec. func. /Tools> 2 –...
Page 57 Group 5 Transport/Start up Page 55  Turn on the printer. For this touch the dark touch-display (1) at any position for approx. 2 sec.  The device turns on and the main window with the message<Initialization> (2) is displayed. Wait until the initialization is finished. After this process the message<Emergency Shutdown>...
Page 58: Figure 11 Filling Routine (Step 2)
Page 56 Transport/Start up Group 5 Figure 11 Filling routine (Step 2) Message during the routine 9 – Message <Fill up Routine finished> 13 – <OK> Button 10 – <OK> Button 14 – Main window 11 – <Close> Button 15 – Message <Bleeding> 12 –...
Page 59: Setting Of The External Print Head Ventilation -Optional Equipment
Group 5 Transport/Start up Page 57 5.4.4 Setting of the external print head ventilation -optional equipment If the high performance printer is equipped with a printhead ventilation system (option) the seeting of the pressure has to be adjusted befor commissioning the printer. Proceeding Turn the adjusting knob (2) of the pressure regulator valve (1), until the necessary pressure of 1.4 bar is reached.
Page 60: Interfaces
Page 58 Transport/Start up Group 5 ATTENTION  Make sure that there is a permanent compressed air supply!  The printer doesn’t monitor the permanent compressed air supply!  There will be no warning in case the permanent compressed air supply fails! ...
Page 61: Ethernet-Connection
The Ethernet-connection is implemented with a sturdy M12D coded socket and is designed for high transfer rates and long cable lengths. It provides the networking of several devices in multi-head applications. The data exchange happens via the „LEIBINGER JET3up-interface protocol“. Plug assignment: Pin connection: Pin No Designation Pin No.
Page 62 Page 60 Transport/Start up Group 5 Basic data/Recommended working conditions: Signal Parameter Value PrintGo Input level High 15 up to 30V Input level Low -3,5V up to 3,5V (or high resistance) PNP-sensors Minimum pulse duration 100µS Input resistance 6,8 kOhm /PrintGo Input level High 20 up to 28V (or high resistance)
Page 63: Interface X1 - Encoder
Group 5 Transport/Start up Page 61 5.5.3 Interface X1 - Encoder 5.5.3.1 Description and configuration The interface X1 provides the connection of a shaft encoder. Due to the input for which you can set the software individually, the encoders can be connected according to different norms without an additional converter.
Page 64: Mechanical Installation
Page 62 Transport/Start up Group 5 5.5.3.2 Mechanical installation ATTENTION For the mechanical installation of the shaft encoder you have to pay attention in any case that the encoder is protected against axial and radial strain during the mounting and the continuous operation. For this a rubber gaiter or a plastic coupling is used.
Page 65 Group 5 Transport/Start up Page 63 Basic data /Recommended working conditions: Signal Parameter Value All signals Input level High 15 up to 30V Input level Low -3,5V up to 3,5V (or high resistance) Input resistance 6,8kOhm Increment Counter/ Minimum pulse width 250µs Reset Counter Power ON...
Page 66: Interface X3 - Digital Outputs
Page 64 Transport/Start up Group 5 5.5.5 Interface X3 - Digital outputs 8 outputs which can be freely selected are available for special functions. The outputs 1-3 are predefined as a standard and should be not changed.  Output 1 = Print stop error ...
Page 67: Interface X2 - Serial Interface
Group 5 Transport/Start up Page 65 5.5.6 Interface X2 - Serial interface The interface “X2” is a serial data interface with a transfer rate up to 115200 Baud. The access is suitable for a connection to the printer to application-specific software for the data management and for the remote control of the printer.
Page 68: Usb-Connection
Page 66 Transport/Start up Group 5 5.5.7 USB-Connection The USB-connection can be used for all common USB-devices as e.g. mouses, keyboards or USB-sticks. All data can be exchanged comfortable and simply by the USB-connection. Software updates, exchange of variable printing data or memory expansions can be carried out simply with the USB-stick.
Page 69: Operation
6 Operation 6.1 Construction/Structure of the device The high-performance LEIBINGER JET3up is manufactured of a solid two parts stainless steel cabinet. Due to the two parts construction you will get a thermal separation between the hydraulic- and electronic section. The device consists of the following main components.
Page 70: Functional Principle
Page 68 Job Editor Group 8 6.2 Functional principle 6.2.1 Method of working The JET3up works in accordance with the continuous ink jet process. In this a constant ink jet is emitted from a jet nozzle which is broken down into a series of equal size drops under the influence of mechanical oscillations.
Page 71: Drop Charging
Group 8 Job Editor Page 69 6.2.3 Drop charging In order to be able to charge the drops it is necessary for the ink to have electrical conductivity. This is possible through the use of specific salts that dissociate in the solvent used.
Page 72: Summary Of The Individual Proceduresfigure
Page 70 Job Editor Group 8 6.2.6 Summary of the individual proceduresFigure Figure 15 Character creation process Character height created by drop deflection Character „E“ build with a 7 x 5 matrix Rel. movement direction of the description area Drop brake-off point Gutter Deflector plate Charge electrode with deflector electrode...
Page 73: Example Of Use
Group 8 Job Editor Page 71 6.2.7 Example of use Figure 16 Example of use = Direction of conveyance 1 – Product 3 – Encoder 5 – Print head 2 – Conveyor belt 4 – Sensor 6.3 Safety instructions WARNING Risk of fire and injury! ...
Page 74: User Interface And Printer Operation
Page 72 Job Editor Group 8 6.4 User interface and printer operation This chapter describes the essential operating- and indicating elements of the LEIBINGER JET3up main window. Figure 17 Design of the main window Optional speed indicators 1 – Title bar 8 –...
Page 75 Group 8 Job Editor Page 73  Direct buttons (3): Several menus or submenus of the JET3up can be accessed with these shortcuts. The following list show the default direct buttons: Pos. Button Function-/menu designation Comment Create new job Starts job editor with a new print job Edit current job Starts job editor with the...
Page 76: Figure 18 Status Field
Page 74 Job Editor Group 8  <Remaining printouts> indicator (8): This indicator shows the remaining print outs calculated on the basis of the current ink volume and the currently loaded print job. The value displayed is only a rough estimate. ...

Page 77: Figure 19 Indicator For General Status Information
Group 8 Job Editor Page 75 Figure 19 Indicator for general status information 1 – Current Status headcover 5 – Solvent refill information 2 – Current status of printing process 6 – Ink filling level 3 – Status of VNC server 7 –...
Page 78 Page 76 Job Editor Group 8 Solvent filling level: The indicator shows the current solvent filling level.  Button <PrintStart> (13): With this button the print job will be released for processing. If a print job is activated, the button is displayed backlighted. It will be printed as soon as a PrintGo signal occurs.
Page 79: Numeric Keypad
Group 8 Job Editor Page 77 6.4.1 Numeric keypad Figure 20 Numeric keypad design 1 – Display 2 –<Backspace> key 3 –<del> key 4 –<> key 5 –<> key 6 –<Return> key Numbers are entered with the numeric keypad. The entered value is shown in the Display (1). The <...
Page 80: Keyboard
Page 78 Job Editor Group 8 6.4.2 Keyboard Figure 21 Keyboard design Standard characters Special characters expanded font Caps Lock/Standard characters Caps Lock/ Special characters - expanded font 1 –Button <Return> 3 – Button<Caps Lock> 2 –Button <Special characters> Release R1.06 JET3up...
Page 81 Group 8 Job Editor Page 79 The characters are entered with the keyboard. The structure of the keyboard corresponds to the common computer keyboards. Note: Depending on the installed language package (e.g. Cyrillic) the structure can vary from the shown display. With the button <Return ↵>...
Page 82: Basic Operating Procedures
Job Editor Group 8 6.5 Basic operating procedures This paragraph describes the basic operating procedures of the LEIBINGER JET3up. 6.5.1 General The complete control of the JET3up can be carried out with a connected PC-mouse or directly with the TFT-Touch-Display.
Page 83: Switch On Device
Group 8 Job Editor Page 81 6.5.3 Switch on device 6.5.3.1 Switching on without password protection Proceeding:  Touch the dark Touch-Display (1) for at least 2 seconds.  The device is turned on and the main window (2) is displayed with the message <Initialization>...
Page 84: Figure 23 - Switch-On Procedure Without Password Protec
Page 82 Job Editor Group 8 Figure 23 Switch-on procedure without password protection 1 – TFT-Touch-Display 4 – Message <Bleeding> 2 – Message <Initialization > 5 – Button <Cancel> 3 – Main window Release R1.06 JET3up...
Page 85: Switching On With Password Protetction
Group 8 Job Editor Page 83 6.5.3.2 Switching on with password protetction Proceeding:  Touch the dark Touch-Display (1) for at least 2 seconds.  The device turns on and the main window (3) is displayed with the message <Initialization> (2). ...
Page 86: Figure 24 - Switch-On Procedure With Password Protec
Page 84 Job Editor Group 8 Figure 24 Switch-on procedure with password protection 1 – TFT-Touch-Display 7 – Input field <Password> 2 – Message box <Initialization> 8 – Software keyboard 3 – Main Window 9 – <Enter> key 4 – Message box <Bleeding> 10 –...
Page 87: Switch Off Device
Group 8 Job Editor Page 85 6.5.4 Switch off device Figure 25 Switch-off procedure 1 – <Off> Button 4 – <No> Button 2 – Confirmation prompt 5 – <Shutdown> message box 3 – <Yes> Button Proceeding:  Press the button <Off> (1). ...
Page 88: Windows And Menu Elements
Page 86 Job Editor Group 8 6.6 Windows and menu elements Menu bar A menu bar displays several drop-down menus. Drop-down menu A drop-down menu is opened by clicking on the respective menu item in the menu bar. It shows a list of options or commands. Submenu A drop-down menu may have menu items which open submenus.
Page 89: Figure 26 - Menu Layout 1
Group 8 Job Editor Page 87 Some buttons may indicate their current status: Button caption The button is disabled at the moment. The reason for this may greyed out: be a functional one (the command is not enabled during operation) or it be caused by an interfering parameter setting. Button is displayed The button is activated and the command is carried out at the blue-grey:...
Page 90: Figure 27 - Menu Layout 2
Page 88 Job Editor Group 8 Figure 27 Menu layout 2 10 – Tab caption 17 – Tab bar 11 – Enabled button 18 – Input /display field with arrow keys 12 – Disabled button 19 – Preview illustration 13 – Activated button 20 –...
Page 91: Optional Equipment
Group 8 Job Editor Page 89 6.7 Optional equipment 6.7.1 External head print ventilation - assembly and function Function: External head ventilation is predominantly used for devices in safety class IP65 and for print jobs in which the retractive suction of particles (e.g. paper lint in the printing industry) in printer circulations should be avoided.
Page 92: Figure 28 Assembly Of The External Print Head Ventilation
Page 90 Job Editor Group 8 Figure 28 Assembly of the external print head ventilation Outside Inside Connection diagram: 1,4 Bar Both of the throttle valves are adjusted exactly and should not be changed! 30 l/h 70 l/h 1 – rear panel of the housing 3 –...
Page 93: Data Entry/Programming
7 Data entry/Programming 7.1 General Data which should be printed by the LEIBINGER JET3up can be entered, called, changed and saved with several input devices, e.g. TFT-Touch display, mouse etc.. The printer can also be programed and controlled with the (RS232/Ethernet) per external software (according to the Leibinger interface protocol for the JET3UP).
Page 94: Job Administration
Page 92 Job Editor Group 8 7.2 Job administration With the button <Job> in the main window bar the submenu „Job“ is displayed. The following options are available:  Create new Job  Open Job to edit  Load Job to print ...
Page 95: Create A New Job
Group 8 Job Editor Page 93 7.2.1 Create a new job With the option <Create a new Job> or by pressing on the accordant direct button (shortcut) you can create a new job. For creation the job editor opens where you can create the printing data and save it as a job.
Page 96: Open Job To Edit
Page 94 Job Editor Group 8 7.2.2 Open job to edit With the option <Open Job to edit> or by pressing on the accordant direct button (shortcut) you can open an existing job for editing. For selection of a job the window „Job edit“...
Page 97: Figure 31 Open Job To Edit
Group 8 Job Editor Page 95 Figure 31 Open job to edit 1 – Drop-down menu <Job> 8 – Selected print job 2 – Option <Open Job to edit> 9 – Selected storage media 3 – Direct button (Shortcut) 10 – Display <Job preview> 4 –...
Page 98: Edit Current Job
Page 96 Job Editor Group 8 7.2.3 Edit current job With the option <Edit current Job> or by pressing on the accordant direct button (shortcut) you can edit the current job. Figure 32 Edit current job 1 – Drop-down-menu <Job> 4 –...
Page 99: Load Job To Print
Group 8 Job Editor Page 97 7.2.4 Load Job to print With the option <Load Job to print> you can load (open) a saved job directly for printing. For selection of a job the window “Load job” opens. Figure 33 Load job to print 1 –...
Page 100 Page 98 Job Editor Group 8 Proceeding:  Select the drop-down menu<Job> (1) and the option <Load Job to print> (2) or the accordant direct button [Shortcut] (3).  The window <Job load> (4) pops up.  Select the requested job in the pick list <Job list> (5). With the drop-down list <Search in >...
Page 101: Create New Job List
Group 8 Job Editor Page 99 7.2.5 Create new job list All numbers in the following description refer to figure 34 The menu item <Create new job list> offers three options:  Extern Job select (3)  Batch job (12) ...
Page 102 Page 100 Job Editor Group 8 Job organisator (19) Up to 16 print jobs can be listed in a <Job organisator> list (19). A job is added either with the <Import Job> button (5) or the respective option of the <Edit> drop-down menu of the menu bar (2).
Page 103: Figure 34 Creating A New Job List
Group 8 Job Editor Page 101 Figure 34 Creating a new job list 6, 7 6, 7 16,17 1 – Option <Create new Joblist> 12 – <Batch Job> Tab 2 – Menu bar <Joblist Creator> 13 – Setting <Repetition select. Job> 3 –...
Page 104 Page 102 Job Editor Group 8 Important It is possible to edit single jobs that are part of a joblist directly in the joblist editor. A click on the <Job edit> button will open the currently selected print job in the <Job Editor>. The job can be edited and saved in the <Job Editor>.
Page 105 Group 8 Job Editor Page 103 Joblist (1a) The drop-down menu <Joblist> (1a) offers options for file handling and for exiting the dialog box. <Save Joblist> (2) Will save the file under the current file name. After saving the dialog box will close. Opens a <Save file as>...
Page 106 Page 104 Job Editor Group 8 Printstyle (15) The setting defines the distances between the <Print height> (16) drops and therefore the print height. <Orientation> (17) All printing objects can be rotated by 180°. <mirrored> (18) All printing objects will be mirrored. Print Parameter (21) <PrintGo Distance>...
Page 107 Group 8 Job Editor Page 105 Encoder Parameter (27) <Encoder Source> (28) The encoder source can either be external (hardware encoder) internal (defining speed). <Resolution> (29) In this display field the resolution of the used encoder has to be defined in pulses per millimeter. <intern Speed>...
Page 108: Figure 35 Menu Bar Job List Creator
Page 106 Job Editor Group 8 Figure 35 Menu bar Job list creator 19,20 19,20 1 – Menu bar <Joblist Creator> 18 – Check box <mirrored> 1a – Drop-down menu <Joblist> 19 – Button <OK> 1b – Drop-down menu <Edit> 20 –...
Page 109: Create New Job Lists - Example : Extern Jobselect
Group 8 Job Editor Page 107 7.2.5.1 Create new job lists – Example : Extern Jobselect Task: Three different print jobs shall be printed. The print-out shall not be carried out in a fixed order but on the basis of direct addressing each print job. The addresses of the print jobs shall be 1, 5 and 7.
Page 110 Page 108 Job Editor Group 8 Printstyle (5) <Print height> Default (80%) <Orientation> Default (0°) <mirrored> Default (no) PrintGo Parameter (6) <PrintGo Distance> Not available for <Extern Joblist>. This para- meter can be defined within each print job. It will only affect print jobs with repetitions.
Page 111 Group 8 Job Editor Page 109 15. The print job at the fifth position of the job list shall be printed twice. Therefore the address has not to be changed for the next print-out (13). It will be printed again with the next <PrintGo> signal. 16.
Page 112: Figure 36 Extern Joblist Example 1: Extern Jobselect
Page 110 Job Editor Group 8 Figure 36 Extern Joblist Example 1: Extern Jobselect Job list with Address the imported column print jobs JL file name current address Details Print preview: This content will be printed with the next PrintGo signal. Release R1.06 JET3up...
Page 113: Create New Job Lists - Example : Extern Jobselect With Distances
Group 8 Job Editor Page 111 7.2.5.2 Create new job lists – Example : Extern Jobselect with distances Task: This example is based on the last example (see 7.2.5.1). Three different print jobs shall be printed. The print-out shall not be carried out in a fixed order but on the basis of direct addressing each print job.
Page 114 Page 112 Job Editor Group 8 7. With the next <PrintGo> signal the addressed print job will be printed. For this print job the <PrintGo delay> is set to 20 mm. Therefore the printout will start 20 mm after the position where the <PrintGo> signal occurred (13).
Page 115: Figure 37 Extern Job Select Example 2: Extern Jobselect With Distances
Group 8 Job Editor Page 113 Figure 37 Extern Job select Example 2: Extern Jobselect with distances Job list Address print jobs column JET3up Release R1.06...
Page 116: Create New Job Lists - Example „Batch Job
Page 114 Job Editor Group 8 7.2.5.3 Create new job lists – Example „Batch Job” Task: Five different print jobs shall be printed (JL-Job1 to JL-Job5). The print-out shall be carried out in a fixed order. The print jobs shall be printed in the following order and with the respective repetitions: Print Print job...
Page 117 Group 8 Job Editor Page 115 Printstyle (5) <Print height> Default (80%) <Orientation> Default (0°) <mirrored> Default (no) Print Parameter (6) <PrintGo Distance> Not available for <Batch Job>. Parameters defined within a print job will be ignored. Not available for <Batch Job> job list. Para- <PrintGo Repeat>...
Page 118 Page 116 Job Editor Group 8 14. With the next <PrintGo> signal the fifth print job of the job list will be printed. There no repetitions defined, therefore there will be a total of one printout. The <PrintGo delay> for each printed job is 30 mm (13). 15.
Page 119: Figure 38 Extern Joblist Example 3: Batchjob
Group 8 Job Editor Page 117 Figure 38 Extern Joblist Example 3: Batchjob number Job list with Number of the imported repetitions print jobs Selected Assigned number of repetitions JL file name current job nr. Details Print preview: This content will be printed with the next PrintGo signal.
Page 120: Create New Job Lists - Example : Job Organisator
Page 118 Job Editor Group 8 7.2.5.4 Create new job lists – Example : Job organisator Task: Three different print jobs shall be printed (Job1 to Job3) using the job list type <Job organisator>. The whole print list shall be printed twice. The second <PrintGo>...
Page 121 Group 8 Job Editor Page 119 The following picture gives an schematic overview: Presets: The described presets depend on the used hardware and may vary. The print-out speed is measured with an external encoder with a resolution of 12.5 pulses/mm. The encoder shall only work clockwise and shall be locked against backward movements.
Page 122 Page 120 Job Editor Group 8 Printstyle (5) <Print height> Default (80%) <Orientation> Default (0°) <mirrored> Default (no) Print Parameter (6) <PrintGo Distance> 150 mm <PrintGo Repeat> Not selected <endless> <PrintGo Source> <Extern> and <positive edge>. Default (no) <PrintStop interrupts print- out immediately>...
Page 123 Group 8 Job Editor Page 121 Basic rules for the job list type <Job Organisator>:  The printout of the complete job list including all repetitions is started with one <PrintGo> signal.  A single print job of the <Job Organisator> job list can be edited directly in the joblist editor.
Page 124: Figure 39 Extern Joblist Example 4: Job Organisator
Page 122 Job Editor Group 8 Figure 39 Extern Joblist Example 4: Job organisator Job list with the imported number print jobs Distances Selected Assigned distances JL file name current address Details Print preview: This content will be printed with next PrintGo signal.
Page 125: Settings
Group 8 Job Editor Page 123 7.3 Settings The drop-down menu <Settings> in the menu bar of the main window offers the following options:  Menu Shortcuts  Basic settings  Hydraulic settings  Password settings  I/O settings  Password active Figure 40 Drop-down menu “Settings”...
Page 126: Basic Settings
Page 124 Job Editor Group 8 7.3.1 Basic settings The drop-down menu <Settings> (1) in the menu bar of the main window offers the option <Basic Settings> (2). This opens a dialog box (3) whith a tab bar (4). The available basic settings are grouped by tabs. The following tabs are available: ...
Page 127: Language And Units
Note: The function is also helpful to simplify the communication (e.g. in case of service) with the dealer or the LEIBINGER service-hotline because English language can be generally selected irrespectively of the installed language package.
Page 128: Figure 43 Set Measuring Unit
Page 126 Job Editor Group 8 Proceeding:  Press on the tab <Language/Unit> (2) to select the tab.  Press on the arrow key of the accordant drop-down list. The drop-down list opens for selection.  Now select the requested language or the requested keyboard font. 3.
Page 129: Date And Time
Group 8 Job Editor Page 127 7.3.1.2 Date and time Under the tab <Date/Time> you can set the current time, the time zone, the current date and the date format as well as the automatic change from summertime (daylight saving time-[DST]) to wintertime. 1.
Page 130: Figure 45 Set Date Format
Page 128 Job Editor Group 8 2. Set date format: Figure 45 Set date format Reboot 1 – Dialog box <Basic Settings> 6 – <No> Button 2 – Tab <Date/Time> 7 – <Yes> Button 3 – Drop-down list <Date format> 8 –...
Page 131 Group 8 Job Editor Page 129 Proceeding:  Press on the tab <Date/Time> (2) to select the tab.  Press on the arrow key of the Drop-down list <Date format> (3) to define the format. A drop-down list opens.  Now select the requested format. ...
Page 132: Figure 46 Set Time And Time Zone
Page 130 Job Editor Group 8 3. Set time and time zone: Figure 46 Set time and time zone 1 – Dialog box <Basic Settings> 4 – Example hour block selected 2 – Tab <Date/Time> 5 – Arrow keys 3 – Setting field <Time> 6 –...
Page 133: Figure 47 - Auto. Clock Change (Summer-/Wintertime)
Group 8 Job Editor Page 131 Proceeding:  Press on the tab <Date/Time> (2) to select the tab.  Now mark in the setting field <Time> (3) the hour-, minute- or second block to change the values.  With the two <Arrow keys> (5) you can increase or reduce the values of the blocks wich are each marked.
Page 134: Interval Operation - Set Interval Time
7.3.1.3 Interval operation - Set interval time The mode <Interval operation> enables the input of start- and end times when the LEIBINGER JET3up turns on or off automatically (e.g. 10.20 pm, the device turns on / 10.40 pm, the device turns off) to circulate the ink.
Page 135: Figure 48 Interval Operation (Set Interval Time)
Group 8 Job Editor Page 133 Figure 48 Interval operation (Set interval time) Switched off viscosity control Switched on viscosity control 1 – Dialog box <Basic Settings> 5 – Example hour block selected 2 – Tab <Interval> 6 – Arrow keys 3 –...
Page 136: Interface (Encoder Interface)
Bounce time delay: Describes a predefined safety time. That means if an input is switched, the signal will be only valid after this safety time. At the LEIBINGER JET3up you can switch on or off this safety time. Bounce time delay Advantages...
Page 137: Figure 50 - Select Encoder Interface
Group 8 Job Editor Page 135 Proceeding:  Press on the tab< Interfaces> (2) to select the tab.  Press on the arrow key of the drop-down list <Encoder Settings> (3). The drop-down list opens for selection.  Now select the required interface. ...
Page 138: Factory Settings
Page 136 Job Editor Group 8 7.3.1.5 Factory Settings Under the tab <Factory settings> you can reset the printer adjustments to the standard settings. Attention The consequences of resetting to the factory settings should be considered! Figure 51 Reset device to factory settings 1 –...
Page 139 IP 65 Machine This check box is only selected with printers that have the IP65 option. The check box can only be selected by LEIBINGER service staff or service staff authorized by LEIBINGER. Direct printstart If this check box is selected the printer will switch to Print Start mode as soon as the nozzle is opened.
Page 140: Ip-Address
7.3.1.6 IP-Address The tab <IP-Address> (2) provides the settings for the IP-Address of the device. In order to integrate the LEIBINGER JET3up printer in a network based on the internet protocol an IP-address has to be assigned to the device.
Page 141: Figure 52 Set Ip-Address
You will find further information about the numeric keypad in chapter 6.4.1 Numeric keypad Information Please contact your system administrator in order to implement the LEIBINGER JET3up printer in a local network. LEIBINGER cannot be held liable for any malfunctions caused by inappropriate network settings! Figure 52 Set IP-address 1 –...
Page 142: Network Id
Page 140 Job Editor Group 8 7.3.1.7 Network ID The tab <Network ID> (2) provides the settings for a network path. A configured network path offers the possibility to save/load print jobs from a network drive and use this drive for log files. With this option activated the save/load dialog box will offer the set network drive as an additional storage.
Page 143: Figure 53 Network Path Settings
Group 8 Job Editor Page 141 Figure 53 Network path settings Load file dialog box Save file dialog box Explorer 1 – Dialog box <Basic Settings> 7 – Input <Network path> 2 – Tab <Network ID> 8 – <Check connection> button 3 –...
Page 144: Contact Details
Page 142 Job Editor Group 8 7.3.1.8 Contact details The tab <Contact details> (2) provides an input field (3) for storing contact details. These contact details are displayed in the Information dialog box (4) on page 1 (5). If this field is left empty (3) the respective field in the Information dialog box will also stay empty (5).
Page 145: Figure 54 Contact Details
Group 8 Job Editor Page 143 Figure 54 Contact details 1 – Dialog box <Basic Settings> 8 – The input per line is limited by the width of the input field 2 – Tab <Contact Details> 9 – Returns are created automatically 3 –...
Page 146: Solvent Saving Mode
<Solvent Saving Mode> makes sure that the nozzle will be closed if there are no PrintGo signals received for a certain time. With the LEIBINGER Sealtronic the circulation of the ink will continue as long as the printer is not in stand-by mode even if the nozzle is closed. Therefore a print start with a nozzle closed will only take the seconds to open the nozzle.
Page 147: Figure 55 Solvent Saving Mode
Group 8 Job Editor Page 145 Figure 55 Solvent Saving Mode Solvent Saving Mode 3 Minutes Die Solvent Saving After 3 minutes without a received Mode function is not PrintGo signal the nozzle will close active automatically. 1 – Dialog box <Basic Settings> 4 –...
Page 148: Remote Sreen
Page 146 Job Editor Group 8 7.3.1.10 Remote sreen The JET3up printer provides a VNC server for remote access. Basically it takes two steps to use the VNC server of the printer: 1. Assign a password for the VNC server 2.
Page 149 Group 8 Job Editor Page 147 Remote Control - Settings With the VNC server running (indicated in the main window) it is possible to access the VNC server with a VNC client running on an external device like a desktop PC, a notebook or a tablet computer.
Page 150: Figure 58 - Remote Control - Connection Scheme
Information Please contact your system administrator in order to implement the LEIBINGER JET3up printer in a local network. LEIBINGER cannot be held liable for any malfunctions caused by inappropriate network settings! The software suggested are to be understood as examples.
Page 151: Error Config
Group 8 Job Editor Page 149 7.3.1.11 Error Config The tab <Error Config> provides several functions for a customized error messages management. It is possible to declare the type of message for certain messages. For the declaration there are three types predefined: ...
Page 152: Figure 59 Error Config
Page 150 Job Editor Group 8 Figure 59 Error config Example settings on the Example settings on the <Outputs> <Error Config> tab. tab of the <I/O settings> dialog box. Example Error Message Example for a error message: After the last record of a data base was printed the error message with code 1223 pops up and the digital output X3.1 switches.
Page 153: Hydraulik Settings
Wrong or inappropriate settings may cause the printer to stop the work and /or may lead to hardware damages! All values were set at factory for an optimal operation. Changes must only be carried out by LEIBINGER service technicians or staff trained by LEIBINGER service technicians. JET3up...
Page 154 Page 152 Job Editor Group 8 Functional descriptions Pressure (4) This is the setpoint of the pressure of the hydraulic circuit in [mbar]. Suction pump (5) The suction pump works at partload. The partload value is defined percentage of the full load. Visco correction (6) The printer is supplied with a factory calibrated viscometer.
Page 155: I/O-Settings
Group 8 Job Editor Page 153 7.3.3 I/O-settings With the option <I/O Settings> (2) you can open the dialog box „I/O Settings“ (3). This dialog box shows the function or status assignment to the available digital inputs and outputs. 6 inputs and 8 outputs are available. The selection of the tab „Inputs“...
Page 156: Digital Inputs
Page 154 Job Editor Group 8 7.3.3.1 Digital Inputs With the tab <Inputs> you can assign functions to the available inputs. E.g.: Input 1 (X4.9 (of the Pin No. 9 of interface X4)) should be assigned the function “Counter reset”. Proceeding: ...
Page 157: Digital Outputs
Group 8 Job Editor Page 155 7.3.3.2 Digital Outputs With the tab <Outputs> you can assign printer states and messages to the available outputs. ATTENTION Standardly the outputs 1-3 are already predefined!  Output 1 (X3.1) = Error  Output 2 (X3.2) = Warning ...
Page 158: Menu Shortcuts
Page 156 Job Editor Group 8 7.3.4 Menu Shortcuts In the main window of the printer there are 8 buttons for direct acces to certain functions. With the <Menu Shortcuts> dialog box one can configure these Menu Shortcuts.It is possible to define the position and the function of each button. Figure 64 Menu Shortcuts Example 9...
Page 159 Group 8 Job Editor Page 157 Example Task There shall be created a dircect access button for the dialog box <Printstyle> in the main window of the printer. Proceeding See Figure 64 and the Example in Figure 64. 1. Choose the button position in the <Menu Shortcuts> dialog box. 2.
Page 160: Password Settings And User Permissions
Group 8 7.3.5 Password settings and user permissions The LEIBINGER JET3up offers a user based password protection in order to prevent from faulty operation or non-authorized access. It is possible to set different kind of access privileges for 5 users.
Page 161: Figure 65 - Menu Password Settings
Group 8 Job Editor Page 159 Figure 65 Dialog box password settings 1 – Drop-down list <Settings> 6 – <set…> button 2 – Option <Password Settings> 7 – Tab bar 3 – Dialog box <Password Settings> 8 – Settings – Options depend on the selected tab 4 –...
Page 162: Selection Of A User
You will find further information regarding the operation with keyboard in the chapter 6.4.1 Keyboard  Enter the password „Leibinger“. The input is displayed in the input field <Password> (1).  Press the button <Enter> (4) of the keyboard field to finish the input.
Page 163: Definition Of Access Privileges
Group 8 Job Editor Page 161 Figure 67 Define a password 1 – Input field <Password> 4 – <Enter> Button 2 – <set…> Button 5 – <OK> Button 3 – Keyboard 6 – <Cancel> Button 7.3.5.1.3 Definition of access privileges On the several tabs of the dialog box you can enable or disable functions for the currently selected user.
Page 164: Lost Password
Group 8 7.3.5.2 Lost password If the password of the highest defined access right (Supervisor) has been lost special measures are required. In this case please contact the your> LEIBINGER dealer. Attention The most critical user privilege in terms of the password and user management is the <Password active>...
Page 165: Figure 68 Password Related Warning Messages And Indicators
Group 8 Job Editor Page 163 Figure 68 Password related warning messages and indicators Current user / last logged in user in the title bar: Checkmark indicates <Password Active>: Warning messages at unauthorized access: 1 – Title bar with password indicator 3 –...
Page 166: Password Activation
Page 164 Job Editor Group 8 7.3.7 Password activation The function is activated or deactivated as follows:  Click on the drop-down menu <Settings> (1) and select the option <Password Activate> (2).  The function is activated or deactivated depending on the current status. Figure 69 Activate/deactivate password 1 –...
Page 167: Service Functions
Group 8 Job Editor Page 165 7.4 Service functions With the button <ServiceFunctions> in the main dialog box bar the submenu „Service functions“ is displayed. The following options are available:  I/O-Test  Hydraulic  Printhead  Data Logging  Service Interval ...
Page 168: I/O Test - Signal Test
Page 166 Job Editor Group 8 7.4.1 I/O Test - Signal test With the option <I/O Test> (2) the dialog box „I/O-Signals (3)“ is displayed. The dialog box shows the states of the inputs and outputs of the device. Figure 71 I/O-Signal test 1 –...
Page 169: Hydraulic-/Printhead - And Special Functions
Group 8 Job Editor Page 167 The dialog box allows testing the inputs and outputs of the LEIBINGER JET3up for troubleshooting without additional tools. While the dialog box <I/O-signals> is open in- and output signals do not affect the <I/O Settings>.
Page 170: Figure 72 - Hydraulic-/Printhead Test Menu
Page 168 Job Editor Group 8 Figure 72 Hydraulic/Printhead test dialog box 1 – Drop-down menu <ServiceFunctions> 7 – Tab bar 2 – Option <Hydraulic> 8 – <Close> Button 3 – Direct button (Shortcut) <Hydraulic> 9 – <Fast shutdown> Button 4 –...
Page 171: Printhead Functions
Group 8 Job Editor Page 169 7.4.3 Printhead functions On the <Print head> tab the following functions are available:  Ink-Flow-Sensor active  Piezo Test  Jet Adjust  Extern Ink on/off active  Charge Test  Ink on/Ink off ...
Page 172: Ink On/Off
Page 170 Job Editor Group 8 7.4.3.2 Ink on/off With the two buttons <Ink on > (2) and <Ink off > (3) the ink delivery to the nozzle is turned on or off. The status of the ink delivery is designated by a on the accordant button.
Page 173: Jet Adjustment
Eye protection is necessary! This function provides a support for a required correction of the jet position. Proceeding: Information For further information please contact the Leibinger-Service Department or your authorized dealer! JET3up Release R1.06...
Page 174: Special Functions And Tools
Page 172 Job Editor Group 8 7.4.4 Special functions and tools Under the tab <Special Functions/Tools> the following functions are available:  Pressureless  Calc last PG Drops  Constant Bleed  Mix only Ink  Deplete Ink  Mix only Solvent ...
Page 175: Figure 74 Constant Bleed
Group 8 Job Editor Page 173 Figure 74 Constant bleed 1 – <Constant Bleed> Button 3 – <Stop> Button 2 – <Constant Bleed> Message 4 – <Add Solv.>Button JET3up Release R1.06...
Page 176: Mix Only Ink/Sovent
Page 174 Job Editor Group 8 7.4.4.2 Mix only ink/sovent With the two buttons <Mix only Ink > (1) and <Mix only Solvent > (2) only ink or solvent can be supplied to the hydraulic circuit. These functions allow to set the viscosity of the ink fast to a lower or higher value. The execution of addition of the selected medium is displayed by an accordant message (3).
Page 177: Ignore All Error Messages And Alarm Messages
Group 8 Job Editor Page 175 7.4.4.3 Ignore all error messages and alarm messages With this function the error- and alarm messages of the device e.g. for starting up, filling, or for service works can be canceled. By pressing the button <Ignore error messages- and warnings> the function is turned on or off.
Page 178: Data Logging - Log Files
Page 176 Job Editor Group 8 7.4.5 Data logging - Log files Several printer parameters and all error messages are saved in a log file every minute and for the last 72 hours. This log file offers a good support for diagnostic and troubleshooting.
Page 179: Export Log File
Group 8 Job Editor Page 177 7.4.5.2 Export log file The displayed information can exported to an external memory device like an USB- stick or a network storage device. Important In order to store the data on a network storage device the network path settings have to be configured.
Page 180: Figure 77 Export Data Log File
Page 178 Job Editor Group 8 Figure 77 Export data log file 1 – <Network ID> Configuration 5 – Message box <Insert USB stick> 2 – USB socket / USB stick 6 – Message box saved<Data log> 3 – <Export> button 7 –...
Page 181: Print History Protocol
Group 8 Job Editor Page 179 7.4.6 Print history protocol The <Print History protocol> shows all print jobs printed and provides information about the start and stop time and the total number of printouts per print job.. Figure 78 Print historie protocol 1 –...
Page 182: Export
Page 180 Job Editor Group 8 7.4.6.1 Export <Print History Protocol> The displayed information can be exported to an external memory device like an USB-stick or a network storage device. There is always the complete information about each print job exported. Important In order to store the data on a network storage device the network path settings have to be configured.

Page 183: Figure 79 Export Print History File
Group 8 Job Editor Page 181 Figure 79 Export print history file 1 – <Network ID> Configuration 5 – Message box <Insert USB stick> 2 – USB socket / USB stick 6 – Message box <Data log> saved 3 – <Export button> 7 –...
Page 184: Service Interval
Page 182 Job Editor Group 8 7.4.7 Service interval The option <Service Interval> (2) opens the dialog box “Service“ (3). The dialog box shows the following parameters:  The date of the last inspection (4)  The total amount of operation hours (5) ...
Page 185: Error Format
7.4.8 Error Format Attention Deactivating error messages pose a safety risk Only LEIBINGER service staff or service staff trained by LEIBINGER are allowed to deactivate error messages. Deactivating error messages is allowed only for service purposes. With the function <Error Format> it is possible to deactivate certain erro messages.
Page 186 Page 184 Job Editor Group 8 Approach Erro messages are activated by default. This is indicated with a tick in the respective checkboxes (4-6). With a click on a checkbox the tick is removed (7). Closing the dialog box with the <OK>...
Page 187: Extra
Group 8 Job Editor Page 185 7.5 Extra A click on the menu entry <Extra> in the menu bar of the main window opens the drop-down meu<Extra>. The following options are available:  Test Print  Product Counter  Login ...
Page 188: Test Print
Page 186 Job Editor Group 8 7.5.1 Test print With the option <Test Print> a defined default job with set internal PrintGo-source is loaded. This job can be used by the operator as basis to create a new job or to control the print function of the JET3up.
Page 189: Product Counter
Group 8 Job Editor Page 187 Proceeding  Click on the menu item <Extra> (1) and select the option <Test Print> (2) or click on the accordant direct buttons (shortcut) (3).  A confirmation prompt (4), pops up  Confirm by pressing the <OK> button (5) or cancel the process with the <Cancel>button (6).
Page 190: Stop After X Products - Pre-Defined Print Stop
7.5.2.1 Stop after x products - Pre-defined print stop With the option <Stop after x Products> the amount of prints will be defined after the LEIBINGER JET3up should release an automatic print stop. If a print stop has been pre-defined the value is displayed in the status field <Production Counter>...
Page 191: Figure 85 Stop After X Products - Pre-Defined Print Stop
Group 8 Job Editor Page 189 Figure 85 Stop after x products - pre-defined print stop Select <Stop after x Products / 1 or 2 product counters Basically this function works the same way no matter whether there are one or two product counters defined.
Page 192: Product Counter Settings
Page 190 Job Editor Group 8 7.5.2.2 Product counter settings Proceeding (see Figure 86 and Figure 87)  Press the option <Product Counter Settings> (2).  The window <Product Counter Settings> is displayed. Depending on how many product counters are defined (1 or 2) (6) you can see 1 or two tabs. 1.
Page 193 Group 8 Job Editor Page 191 ATTENTION Please check whether there are counter objects (job counters) defined for the currently loaded job. If there are counter objects (job counters) whose method for the <Counter reset> is set to „production counter“, they will be also reset. The reset method “production counter”...
Page 194: Figure 87 Product Counter Settings - Change Values
Page 192 Job Editor Group 8 Figure 87 Product Counter Settings – Change values Select Product Counter Settings / 1 or 2 product counters Settings for 1 product counter Settings for 2 product counters Set one product counter Set two product counters The counter can either be set with the The counters can either be set with the arrow keys or with the virtual keyboard.
Page 195: Reset All Job Counters
Group 8 Job Editor Page 193 7.5.2.3 Reset all job counters With this function all existing job counters in the currently loaded job will be reset. Proceeding:  Example: Print job with a counter object (job counter). The counter value is 999 (1).
Page 196: Delete Extern Text Memory
Page 194 Job Editor Group 8 7.5.2.4 Delete extern text memory With this function the extern text memory will be reset. Please see chapter 8.7.5 Extern Text for details. 7.5.3 Login With the <Password function> activated the <Login> option can be used in order to change the current user.
Page 197 Group 8 Job Editor Page 195 1 – Drop-down-Menü <Extra> 7 – <Login> Button 2 – Open <Login> dialog box 8 – <Logout> Button 3 – Direct button (shortcut) 9 – <Cancel> Button 4 – Dialog box <Current login> 10 – Keyboard 5 –...
Page 198: Login Or Change User
Page 196 Job Editor Group 8 7.5.3.2 Login or change user  There can be assigned different user permissions to different users. The user password will determin which user permissions will be granted.  A click in the <Input field> of the dialog box opens a <keyboard field>. ...
Page 199: User Log Out
Group 8 Job Editor Page 197 7.5.3.3 User log out  Press the <Logout> (1) button in order to log-out. The dialog box will be closed  The <Password function> indicator in the main window displays the current state. Figure 91 Login (User logout ) 1 –...
Page 200: Interface Settings
Page 198 Job Editor Group 8 7.5.4 Interface settings The dialog box <Interface settings> offers several options for the configuration of the available interfaces. Figure 92 Interface settings 1 – Open <Interface settings> 6 – Port settings <Ethernet interface> 2 – Options for the 7 –...
Page 201 Group 8 Job Editor Page 199 Options: Communication interface (2) There is Ethernet interface and a serial interface available. Please see the chapter 5.5 Interfaces for details about the hardware requirements. As an option it is also possible to disable all interfaces. Options: Communication protocol (3) There are three kinds of communication protocols available.
Page 202: Font Editor
Page 200 Job Editor Group 8 7.5.5 Font editor With the font editor you can edit existing fonts and create new fonts. It is possible to define customized characters and either include them in existing fonts or create complete new fonts on the basis of custom characters. Edited or new fonts can immediately be used for print jobs.
Page 203 Group 8 Job Editor Page 201 The font editor is started from the main window of the printer. To start the font editor choose the respective menu item from the drop-down menu (3): <Extra>-<Editors>-<Font editor>. The user interface of the font editor consists of various components: Menu bar With the drop-down menus of the menu bar (4) you can select various commands, options and tools.
Page 204 Page 202 Job Editor Group 8 Edit: Basically the cursor can be positioned at any position on the drawing area. After you placed the cursor the current clipboard (Continuation) content will be pasted. The point you click on represents the upper left corner of the object you paste.
Page 205 Group 8 Job Editor Page 203 Font preview The font preview shows all characters of the currently loaded font. The printer software works with 8-bit ASCII fonts which means you have a maximum of 192 printable characters per font. Using the scroll bar you can scroll through all available characters of the currently loaded font.
Page 206 Page 204 Job Editor Group 8 Drawing area On the drawing area the current content of the selected ASCII character is displayed. You can edit the character using the tools and commands from the menu bar. To change the size of the drawing area and to set the grid you can use the options from the <View>...
Page 207 Group 8 Job Editor Page 205 The font editor has three command buttons in the lower right corner:  Accept (1): With this button all changes made to the currently selected character are confirmed and the character is applied to the opened font. All changes will be displayed in the font preview.
Page 208: Graphic Editor
Page 206 Job Editor Group 8 7.5.6 Graphic editor With the graphic editor you can easily create and change complex logos, pattern or writings. Functions as Copy&Paste, Zoom in/out and tools for drawing circles, lines and rectangles make the creation of graphics very easy. Using a USB mouse will provide the same ease of use as it is known from a computer workstation.
Page 209: Edit Tools
Group 8 Job Editor Page 207 Start the graphic editor dialog box with the option <Editors> - <Graphic-Editor> (2) and (3). The graphic editor provides a menu bar with the following entries:  File  Edit  Function  View <Graphics>...
Page 210: File Management
Page 208 Job Editor Group 8 7.5.6.2 File management The drop-down menu <File> provides tools for the file management. Figure 96 Graphic editor - File management 1 – Drop-down menu <File> 4 – <Save> the current file 2 – Start a <New> file 5 –...
Page 211: Drawing Tools
Group 8 Job Editor Page 209 7.5.6.3 Drawing tools Figure 97 Graphic editor (Drawing tools) 1 – Drop-down menu <Function> 2 – <Selection> tool 3 – <Dot> tool 4 – <Line> tool 5 – <Rectangle> tool 6 – <Ellipse> tool 7 –...
Page 212: View Menu
Page 210 Job Editor Group 8 7.5.6.4 View menu The drop down menu <View> provides several tools for zooming, the size of the editor and the grid. Figure 98 Graphic editor – View settings 1 – Drop-down menu <View> 4 – <Show grid> 2 –...
Page 213: Load Existing Graphic
Group 8 Job Editor Page 211 7.5.6.5 Load existing graphic The menu item <Open> opens an <Open file> dialog box. Figure 99 Graphic editor Open file dialog 1 – Drop down menu <File> 7 – Selected graphic file 2 – Menu item <Open> 8 –...
Page 214: Save Graphic/Save Graphic As
Page 212 Job Editor Group 8 7.5.6.6 Save graphic/Save graphic as With the option <Save> the loaded file is saved under the current name. All existing data will be overwritten. With the option <Save as> a <Save as> dialog box opens and the currently loaded file can be saved under a new name.
Page 215 Group 8 Job Editor Page 213 Proceeding:  Select <Save as> (2) from the drop-down menu <File> (1).  The <Save as> dialog box (3) pops up.  The names of the already existing graphics are displayed in the <Graphic file list>...
Page 216: Graphic Editor - Settings
Page 214 Job Editor Group 8 7.5.6.7 Graphic editor - Settings View> The drop-down menu < provides several tools for zooming, the editor size and the grid. The following functions are available:  Enlarge and reduce display size (Zoom in/out) ...
Page 217: Figure 101 Graphic Editor - Settings
Group 8 Job Editor Page 215 Figure 101 Graphic editor - Settings Editor size Grid size 1 – Drop-down menu <View> 4 – Arrow keys 2 – Open <Settings> 5 – Input field 3 – Dialog box <Editor Settings> 6 – <OK> button JET3up Release R1.06...
Page 218: Create And Process Graphic Elements
Page 216 Job Editor Group 8 7.5.6.8 Create and process graphic elements 1. Creation of graphic elements: Example: A rectangle shall be created Proceeding:  Select the <Rectangle> tool (2) from the the <Function> drop-down menu (1).  Click on the drawing area at the position of the first corner of the rectangle (3).
Page 219 Group 8 Job Editor Page 217 2. Deletion of graphic elements: (Example: On side of a rectangle and a complete line shall be deleted) Proceeding:  Start with the deletion of the line.  Select the <Selection> tool (2) from the the <Function> drop-down menu (1).
Page 220: Figure 103 Graphic Editor - Deletion Of Graphic Elements
Page 218 Job Editor Group 8 Figure 103 Graphic editor – Deletion of graphic elements Elemets to be deleted 1 – Drop-down menu <Function> 7 – Drop down menu <Edit> 2 – <Selection> tool 8 – <Delete> tool 3 – First corner of the selection frame 9 –...
Page 221: Explorer
Page 219 7.5.7 Explorer The explorer administrates the data of the LEIBINGER JET3up. As the explorer of the PCs, the explorer in the JET3up allows the deletion of data as well as the free saving and loading of data on different media (e.g. USB-stick, Network) or of the internal memory.
Page 222: Explorer Layout
Page 220 Job Editor Group 8 7.5.7.2 Explorer layout Figure 105 Explorer - Layout Selected window 1 – <Edit> drop-down menu 5 – Drop-down list <Filter> 2 – Direct buttons <Tools> 6 – Drop-down list <memory device> 3 – File list <Intern. memory> 7 –...
Page 223 Group 8 Job Editor Page 221  Filter (5): With the drop-down list you can select the several data fields which should be displayed or processed. If a filter has been used, only the accordant data is shown in the two selection windows. The following filters are available: ...
Page 224: Explorer Tools
Page 222 Job Editor Group 8 7.5.7.3 Explorer tools With the button <Edit> you can select the explorer tools. Further more most of the tools can be selected directly with the available icons (direct buttons). Figure 106 Explorer (Tools) 1 – Menu item <Edit> 5 –...
Page 225: Delete Jobs
Group 8 Job Editor Page 223 7.5.7.4 Delete jobs INFORMATION A job can only be deleted in the explorer! (Example: The job „counter“ should be deleted in the internal memory.) Figure 107 Explorer (Delete job) 1 – <Delete> Tool 5 – <Yes, All> Button 2 –...
Page 226: Touch-Calibration
Page 224 Job Editor Group 8 7.5.9 Touch-Calibration The function provides a calibration of the TFT-Touch-Display. The device is delivered with a calibrated touch display. After the calibration process is started just follow the instructions on the display. Figure 108 Touch-calibration 1 –...
Page 227: Database Settings
Group 8 Job Editor Page 225 7.5.10 Database settings A click on this option opens the dialog box for the database settings. These settings are required for the <Mailing function>. With the <Mailing function> the print data is stored either on an USB stick or on an external network device. Only appropriate database settings can rovide a correct data access.
Page 228: Help
Page 226 Job Editor Group 8 7.6 Help The drop-down menu <Help> (1) provides the menu item <Info> (2). This option will open the <Info> dialog box which consists of two pages arranged as tabs. There is also a direct button available in order to open the <Info> dialog box directly. Figure 109 Open the <Info>...
Page 229: Information> Dialog Box
Group 8 Job Editor Page 227 7.6.1 <Information> dialog box Figure 110 Info dialog box – Page 1 1 – Current <System frequency> and 11 – Reference values for drop <nozzle size> break-off voltage and time 2 – Currently used ink type 12 –...
Page 230: Figure 111 Info Dialog Box
Page 228 Job Editor Group 8 The following system information are displayed in the window:  Oscillator frequency and nozzle size of the device (1)  The ink which has been filled in the device (2)  The solvent which has been filled in the device (3) ...
Page 231: Save Info File
Group 8 Job Editor Page 229 The following system information are displayed:  Several information about hard and software versions (1-8)  Network information. The data correponds with the IP-settings in the <Basic settings> dialog box (10).  Information about the drop off curve (11-12). ...
Page 232 Page 230 Job Editor Group 8 Proceeding:  Configure the <Network ID> of the printer in the <Basic settings> (1) and/or  Plug an USB-Stick into the USB-socket of the device (2).  Press the button <Export> (3).  If there is a <Network ID> configured and the network connection is established a confirmation prompt will pop up asking whether the data shall be saved to the network storage device (4).
Page 233: Figure 112 - System Info - Export System Info File)
Group 8 Job Editor Page 231 Figure 112 Export system info file 1 – <Network ID> Configuration 5 – Message box <Insert USB stick> 2 – USB socket / USB stick 6 – Message box <Data log> saved 3 – <Export > button 7 –...
Page 234: Job Editor
Page 232 Job Editor Group 8 8 Job editor The printing data is created and saved as a job in the job editor. A variety of Windows® similar tools make the operation easier. A job can consist of a lot different objects e.g. text blocks, graphics or barcodes whose contents and characters are changeable.
Page 235: Figure 114 Keyboard Selection
Group 8 Job Editor Page 233  Keyboard language (8): The drop-down list provides all available software keyboards. Depending on the language selected the layout of the keyboard may change. The drop-down list is only available as long as no printing object is selected.
Page 236: Figure 116 Job Editor - Layout
Page 234 Job Editor Group 8 Figure 116 Job editor - Layout 1 – Menu bar 10 – Drops per printout indicator 2 – Direct buttons <Editing tools> 11 – Indicator for maximum print speed 3 – Selected < Object creation tool>. 12 –...
Page 237: Job Editor Tools
Group 8 Job Editor Page 235 Job editor tools 8.2.1 Editing tools With the button <Edit> you can select the editor tools. Further more you can also select the several tools with the available Icons (direct buttons). Note: The function of the tools corresponds to the Windows™-functions. Figure 117 Job editor –...
Page 238: Job Editor - File Management
Page 236 Job Editor Group 8 8.2.2 Job editor - File management With the button <Job> you can select the organization tools of the job editor. Figure 118 Job editor - File management tools) 1 – <Job> Button 4 – <Load Job to print> 2 –...
Page 239: Object Creation Tools
Group 8 Job Editor Page 237 8.2.3 Object creation tools With the button <Insert> you can select tools to create printing elements (texts, graphics, counters etc.). Further more you can also directly select the several tools with the available Icons (direct buttons). Figure 119 Job editor –...
Page 240: Formatting Tool
Page 238 Job Editor Group 8 8.2.4 Formatting tool With the button <Format> you can select the formatting tool <Object> (2). Further more you can also select the tool directly with the accordant Icon (3). With the tool you can assign several object settings (e.g. font, contrast, alignment, etc.) to the selected printing elements.
Page 241: Job Settings Dialog Box - Overview
Group 8 Job Editor Page 239 8.2.5 Job settings dialog box - Overview The drop-down menu <Settings> offers the following options:  Printstyle  Print parameter  Encoder parameter  Date changing parameter The settings for each option are arranged in tabs. Figure 121 Job editor - Parameter settings dialog box) 1 –...
Page 242 Page 240 Job Editor Group 8 Open a dialog box and enter settings (Example: Enter settings within the tab „PrintGo Parameter“) Proceeding:  Open the drop-down menu <Settings> (1) and select <Print Parameter> (2)  This opens the <Job Settings> dialog box (3). ...
Page 243: View Settings
Group 8 Job Editor Page 241 8.2.6 View settings With the button <View> you can select the viewing tools of the job editor. Figure 122 Job editor - Viewing tools 1 – Drop-down menu <View> 4 – Viewing tool <Show Grid> 2 –...
Page 244: Job Editor - File Management
Page 242 Job Editor Group 8 Job editor – File management In the job management the following submenus are available:  Save Job  Save Job as  Close Editor  Load Job to print 8.3.1 Save job/Save job as With the option <Save Job>, a job which opened for editing is saved under the current name.
Page 245: Figure 123 Job Editor - Save Job As
Group 8 Job Editor Page 243 Figure 123 Job editor - Save job as 1 – Drop-down menu <Job> 6 – Input/Display field <Filename> 2 – Option <Save Job as> 7 – Software keyboard 3 – Dialog box <Save Job> 8 –...
Page 246: Load Job To Print
Page 244 Job Editor Group 8 8.3.2 Load job to print With the option <Load Job to print> the job which is currently opened in the job editor can be loaded directly for printing. Figure 124 Job editor (Load job to print) 1 –...
Page 247 Group 8 Job Editor Page 245 1. Print loaded job (without given print release):  Press the button <Close> (6) of the job editor.  Press the button <Job> (1) and the option <Close Editor> (7).  A confirmation prompt (8), pops up asking whether if the original printing job should be loaded again.
Page 248: Close Job Editor
Page 246 Job Editor Group 8 8.3.3 Close job editor Figure 125 Close job editor 1 – Button <Job> 4 – Button <Cancel> 2 – Option <Close Editor> 5 – Button <No> 3 –Confirmation prompt 6 – Button <Yes> With the option <Close Editor> you can close the job editor. If changes were not already saved a confirmation prompt pops up.
Page 249: Object Settings
Group 8 Job Editor Page 247 Object settings The <Object Settings> dialog box provides the seetings for the object properties of the currently selected object. The available settings and parameters are grouped tabs and depend on the kind of object selected. Please see chapter 8.2.3 Object creation tools about the details of object creation.
Page 250: Contrast Value
Page 248 Job Editor Group 8 Available settings Pos. Object settings Note Printout contrast Not available for barcodes and graphics ICG - Inter Character Gap Not available for barcodes and graphics Bold printout Not available for barcodes and graphics Printout inverted See separate description Alternating printout See separate description...
Page 251: Bold Level - Bold Text
(vertical printed dot line). This means that objects positioned above or below the object with the contrast Attribute will also be affected from the setting. Example: In a two line printout the contrast Leibinger Ink-Jet 1. Line: attribut was assigned to the 2. Line: Printer object in the lower line only.
Page 252: Icg-Value (Inter Character Gap)
Page 250 Job Editor Group 8 8.4.3 ICG-value (Inter Character Gap) ICG stands for Inter Character Gap. The setting determines the distance between the several characters. As larger the character distance has been selected, as more „Blank strokes“ are inserted between the single characters. The value can be set between 0 –...
Page 253: Orientation And Mirroring
Group 8 Job Editor Page 251 8.4.4 Orientation and mirroring The settings for the <Orientation> and <Mirroring> of an object are combined. Objects can be rotated by 90°/180° or 270° and the result can be vertically mirrored. Therefore there are 8 combinations available. Figure 130 Object settings - Orientation and mirroring Not rotated...
Page 254: Printout Options
Page 252 Job Editor Group 8 8.4.5 Printout options There are several printout options available which can also be combined with each other. These options affect the look of the printout of the object selected. The result is displayed in the preview area of the <Global settings> dialog box. The following options are available: ...
Page 255: Counter Assignment
Group 8 Job Editor Page 253 8.4.6 Counter assignment With this function you can assign a counter to an object in order to create a periodically repeated object. Basically a counter can be assigned to all kinds of objects:  Text objects ...
Page 256 <Meter-Go-function>). In addition the word Leibinger shall be printed together with each third printout. See Picture 1 for details. Picture 1 – Example cable print: the Leibinger logo together with each third meter printout The printout of the length specifications are controlled by the PrintGo signals.
Page 257 Group 8 Job Editor Page 255 The two „object groups“ in the JET3up job editor “Length specification group” Counter object for the length specifications. Text object for the unit [m]. No specific settings needed. Picture 4 – JET3up job editor: Objects for the length specifications printout Counter parameters...
Page 258 Liebinger text object. Make sure to set the correct ID. 2. The Leibinger logo shall be prin- ted between two length specifi- cations. Therefore the distance between the printout of the length specifications and the Leibinger logo has to be 500 mm.
Page 259: Prompt Field
Group 8 Job Editor Page 257 8.4.7 Prompt field This function provides a fast access to editable objects. The following objects can be defined as <Prompt fields>: Object type Editability Text object Text content Barcode object Barcode content Counter object Counter initial value Time/Date object only if declared as Days or months before expiration...
Page 260 Page 258 Job Editor Group 8 The number of <Prompt fields> within a print job is only limited by the maximum number of objects you can have in a print job. In the JET3up editor the <Prompt field> is displayed in a orange color and it shows the current content <Prompt field>...
Page 261 Group 8 Job Editor Page 259 Overview Settings and Changes Original settings are made in the respective object settings menus Text object Barcode object The content of the text object is originally The content of a barcode object is set directly in the JET3up editor. originally set in the object settings.
Page 262: Job Settings
Page 260 Job Editor Group 8 Job settings The dialog box <Job settings> is grouped in 4 tabs. The 4 groups are: Printstyle This tabs provides all parameters regarding the look and the size of the printout Print parameter This tab provides all parameters regarding the positioning of the printout and the evaluation of sensors.
Page 263: Print Style - Font Parameters
Group 8 Job Editor Page 261 8.5.1 Print style - Font parameters The <Printstyle> provides parameters for the design of the printout. The following parameters are available:  Print height  Orientation  Font width (Stroke distance)  Print mode Figure 135 Printstyle tab 1 –...
Page 264: Font Width - Stroke Distance
Page 262 Job Editor Group 8 8.5.1.2 Font width - Stroke distance The setting determines the print width. The print width is determined by the horizontal drop distance of the strokes. A stroke is one vertical movement of the ink jet. The input dimensions corresponds with the dimensions selected in the <Basic settings>...
Page 265: Print Mode
Group 8 Job Editor Page 263 8.5.1.4 Print mode The print mode is selected from the <Print mode > drop-down list. There are 12 printing modes available. The print modes are classified in three categories: the maximum number of vertical dots per line, the print quality and the printing speed.
Page 266 Page 264 Job Editor Group 8 Pos. Print mode Annotation 2-line 7 dot high speed 5 dot high speed 12 dot high speed 16 dot fast 16 dot speed 24 dot high speed barcode 24 high speed 24 dot fast 24 dot high quality 32 dot high speed 32 dot fast...
Page 267: Print Parameter
Group 8 Job Editor Page 265 8.5.2 Print parameter The <Print Parameter > tab provides parameters for the the kind of text output, the PrintGo source and several monitoring functions in combination with sensor evealuations. List of available settings:  PrintGo-Delay ...
Page 268: Printgo-Delay
Page 266 Job Editor Group 8 8.5.2.1 PrintGo-delay With this setting a delay of the printout is set. The delay is specified in the dimension set in the <Basic settings> e.g. in mm. The PrintGo delay defines the distance between the PrintGo signal and the beginning of the printout.
Page 269: Printgo - Repeat
Group 8 Job Editor Page 267 8.5.2.3 PrintGo - Repeat The <PrintGo Repeat> defines the number of print repetitions that follow after a PrintGo signal. Permitted values are 0 – 1000. Example: 0 = no repetition (single print) 1 = one repetition (double print) The number of repetitions currently set is shown in the input field.
Page 270: Printgo - Hold Off Distance
Page 268 Job Editor Group 8 8.5.2.4 PrintGo – Hold off distance The setting provides a filtering of unrequested PrintGo-signals (e.g. PrintGo with bounces or double releasing). The value defines a length „x“ after the PrintGo- signal in which every further signal will be ignored. The delay is specified in the dimension set in the <Basic settings>...
Page 271: Printgo-Source - Print Start Control
If this function is activated an external sensor has to be connected to the interface X5 of the LEIBINGER JET3up. The print start will happen either with the positive or the negative signal edge. As long as the <PrintGo Repeat>...
Page 272: Controls - Monitoring Functions
Page 270 Job Editor Group 8 8.5.2.6 Controls - Monitoring functions There are 4 monitoring functions available. Monitoring functions are especially required for high printing speeds. Figure 146 Controls - Monitoring functions 8.5.2.6.1 PrintGo monitoring With this function is activated it is monitored whether each Print-Go signal is processed.
Page 273: Sensor Monitoring
Group 8 Job Editor Page 271 8.5.2.6.3 Sensor monitoring With this function the print-control of the PrintGo sensor is complemented with a second sensor. The first sensor delivers the PrintGo signals and the signals of the second sensor are used for double-check. The two signals haven’t to be present exactly at the same time, but they have to overlap at any rate.
Page 274: Figure 148 Sensor Monitoring - Timing Diagram
Page 272 Job Editor Group 8 2. There are no encoder signals detected while the printer is ready for printing and PrintGo signals are received as well as signals from the additional sensor. Error 2 3. The printer is not ready for printing (PrintStop button activated) while PrintGo signals, signals from the additional sensor and encoder signals are received.
Page 275: Sensor Monitoring - Printgo Length
Group 8 Job Editor Page 273 8.5.2.6.4 Sensor monitoring – PrintGo length With the <PrintGo length > function the length of the product on which to be printed is monitored. If the measured length is out of tolerance an error message pops up. The function requires the length of the product and the tolerance as parameters.
Page 276: Drop Flight Time
Page 274 Job Editor Group 8 8.5.2.7 Drop flight time With this parameter the timing for the drop charging is adjusted. The input dimension is µsec. The current value set is displayed in the input field. The parameter defines the time by which the ink drops are charged earlier. An earlier charging of the ink drops brings some advantages for the positioning of the drops at varying printing speeds.
Page 277: Printgo-Gate /Print Start Control
PrintGo signal. The inputs for the sensor signals are located on the connector of interface X5 of the LEIBINGER JET3up. Figure 152 PrintGo-Gate /Print start control Activating options: ...
Page 278 Page 276 Job Editor Group 8 Example: In this example the print shall be carried out on tubes. The printout is an endless print (e.g. Type, date of manufacturing, material etc.) and not each tube has the same length. In addition the distances between the tubes are not always the same. The basic mounting of the sensor and the print head is shown in Picture 10.
Page 279: Meter Go Function
Group 8 Job Editor Page 277 8.5.2.10 Meter Go function The Meter Go function is a special function for printing length specifications on cables, pipes etc. The function results from several parameter settings. With these settings one can ensure that the meter counter carries on counting even if there are no printouts.
Page 280 Page 278 Job Editor Group 8 Example: Assumptions and pre settings for this example: The JET3up printer is used for continuously printing on a cable emerging from a cable extruder device. The cable extruder mustn’t stop even if the printout fails. After a print interruption the printout should continue with the correct meter number.
Page 281 Group 8 Job Editor Page 279 Picture 15 shows the function diagram of the example. After 32 meters the printout stops for e.g. print head cleaning. Nevertheless the JET3up is still receiving PrintGo signals. Because of the <Counter Increment> setting with PrintGo (see picture 3) these signals can be used to keep the counter updated.
Page 282: Encoder Parameter
Group 8 8.5.3 Encoder parameter The printout of the LEIBINGER JET3up up is composed of single dots printed in groups of vertical lines. Such a vertical line of dots is called stroke. In order to position these strokes a StrokeGo signal is required. The StrokeGo signal determins at which position a stroke is printed.
Page 283: Encoder Source - Strokego-Source
If this function is activated signals from an external encoder (e.g. incremental encoder) are required. The encoder has to be connected to the interface X1 of the LEIBINGER JET3up. Additionally you have to define the <Encoder/Direction> (4) and the <Resolution> (5).
Page 284: Rotational Direction Of The Encoder And Directional Changes
Page 282 Job Editor Group 8 8.5.3.2 Rotational direction of the encoder and directional changes An encoder as StrokeGo source not only provides information about the speed and the position but also about the rotational direction. With the settings for the <Encoder/Direction>...
Page 285 Group 8 Job Editor Page 283 Example1 Settings: PrintGo repeat: endless Rotational direction: clockwise After a PrintGo signal the printout will start as soon as the StrokeGo signals from the encoder are received; provided that the signals indicate a clockwise rotation (1).
Page 286 Page 284 Job Editor Group 8 Example2 Settings: PrintGo repeat: endless Rotational direction: right Use encoder direction for mirror: activated Normally the printout would be mirrored if the print direction is changed from forward to backward (1). With the option <Use encoder direction for mirror> the printout will be mirrored a second time in order to get a proper printout (2).
Page 287: Encoder Resolution
Group 8 Job Editor Page 285 8.5.3.3 Encoder resolution The parameter <Resolution> is calculated from the impulses per rotation generated by the encoder used and the length of one rotation. The dimension is pulses/mm. Example: An encoder which generates 10.000 impulses/rotation with a friction wheel and which has a circumference of 200 mm is used.
Page 288: Speed Dependent Output
Page 286 Job Editor Group 8 8.5.3.5 Speed dependent output In dependence of a pre-adjusted speed limit, this special output signal switches ON or OFF. The setting for the output can be found in the main window under Settings ► I/O Settings ► Outputs. The speed dependent output can be assigned to any available output.
Page 289 Group 8 Job Editor Page 287 Example: This function may be used for Corona / Plasma pre-treatment security. A corona treatment device modifies the surface of materials especially plastic material as a preparation for the ink jet print. The corona treatment and the ink jet print happen on the fly.
Page 290: Speed Measuring With Two Sensors
Page 288 Job Editor Group 8 8.5.3.6 Speed measuring with two sensors As an alternative to the use of an external encoder or a constant internal speed there is a third option available: The current production speed can be measured on the basis of the signals from two sensors connected to interface X5.
Page 291 Group 8 Job Editor Page 289 Figure 158 Sensor distance – speed and positioning determination with two sensors Wrong setup! 1 – Both sensors at the same height 6 – Input field <Sensor distance> 2 – Distance between sensors <A> 7 –...
Page 292: Date Change Offset
Page 290 Job Editor Group 8 8.5.4 Date change offset With this function you can shift the date change to an earlier or later point in time. Note: The shifting happens in hours- and minutes. The max. possible offset is +/- 23 hours and 59 minutes.
Page 293: Job Editor Settings
Group 8 Job Editor Page 291 Job editor settings The drop-down menu <View> provides several options for view settings and the basic settings for the job editor. The following functions are available:  Enlarge and reduce display size (Zoom in/out) ...
Page 294: Figure 160 - Job Editor - Editor Settings)
Page 292 Job Editor Group 8 Figure 160 Jobeditot - Editor settings Grid size 4x4 Grid size 1x1 1 – Drop-down menu <View> 4 – Arrow keys 2 – Option <Editor Settings> 5 – Input/Indicator field 3 – Dialog box <Editor Settings> 6 –...
Page 295: Printing Elements
Provides the implementation of barcodes and definition of the required barcode parameters. Important Please note! The LEIBINGER JET3up does not generally carry out any check digit calculations. These have to be carried out external in advance! Important The JET3up printer checks the correctness of the entered checksum digit for the following bar codes: ...
Page 296: Bar Codes: Basics About
Page 294 Job Editor Group 8 8.7.1.1 Bar codes: Basics about Code 39:speed  Alphanumerical code  Characters from A-Z, figures from 0-9, minus, period, space, dollar, slash, plus percent 2 of 5 interleaved (Code 25):  Numerical code. Figures from 0-9 ...
Page 297 Group 8 Job Editor Page 295 Code 128B:  Subtype of the 128 code; using code set B  ASCII characters 32 to 127 (0-9, A-Z, a-z)  Includes special characters FNC 1-4 Code 128C:  Subtype of the 128 code; using code set C ...
Page 298 Page 296 Job Editor Group 8 PostNET  Postal Numeric Encoding Technique  Bar code used by the United States Postal Service to assist in directing mail.  The ZIP Code code is encoded in half- and full-height bars  POSTNET is being replaced by the Intelligent Mail bar code (see USPS 4CB) USPS 4CB ...
Page 299: Bar Codes: Object Creation And Properties
Group 8 Job Editor Page 297 GS1-ECC200 rectangle  Same specifications as the GS-1 ECC200 square but:  rectangular with sizes from 8×18 to 16×48 (even values only) PPN-ECC200 square  The PPN Code is the machine-readable identification of retail packs with the Pharmacy Product Number.
Page 300: Bar Codes: Global Settings
Page 298 Job Editor Group 8 8.7.1.3 Bar codes: Global settings Please see point 2 of Figure 161 On the tab <Global settings> (4) the following adjustments are provided: Contrast and orientation of the printed bar code (6), defining the positioning of the object (9) and selecting several options for the print-out (7).
Page 301: Figure 161 Bar Codes: Object Creating And Settings
Group 8 Job Editor Page 299 Please see point 4 of Figure 161 The result of the settings for the plain text is displayed in the job editor (20). The example shows a job editor preview of two bar codes. Both are code 39 bar codes with the same content.
Page 302: Bar Code Settings: Bar Code Format
Page 300 Job Editor Group 8 IMPORTANT Due to integrated counters and replacements impermissible number of digits or invalid constellations can be caused. These barcodes are displayed as crossed out codes in the job editor and the preview. Correct EAN13 code with 13 numbers EAN13 code with only 5 numbers.
Page 303 Group 8 Job Editor Page 301 There are three basic <Styles> and one user defined <Style> available (9). With default settings the bars and spaces become wider with an increasing <Element> number. E.g. with the basic <Style> <Fine> the bars and spaces of <Elem.1> consist of one stroke and the bars and spaces of <Elem.
Page 304 Page 302 Job Editor Group 8 The height of the printout of the selected bar code type is defined with the <Bar height> (6) setting. The height is measured in dots. The JET3up printer is able to print up to 32 dots in vertical direction. Therefore <Bar height> can be set to a value between 0 and 32.
Page 305: Figure 162 Bar Codes: Bar Code Format
Group 8 Job Editor Page 303 Figure 162 Bar codes: Bar code format 1x1dots 2x2dots 3x3 dots 1 – <Barcode> tab 10 – Dialog box <Barcode Format Default Settings> 2 –<Barcode Format> button 11 – <Style> settings for Fine 3 – Dialog box <Barcode format> for 1-D 12 –...
Page 306: Bar Code Settings: Insert Objects
Page 304 Job Editor Group 8 8.7.1.4.2 Bar code settings: Insert objects Please see Figure 163 It is possible to add the content of certain objects and special control characters to a bar code. These objects and special control characters can be added by pushing the respective buttons in the <Insert>...
Page 307 Group 8 Job Editor Page 305 Date/Time tab (10) On the <Date/Time> tab the content of the placeholder {t} is configured. INFORMATION For details about configuring date/time objects please see chapter 8.7.2 Date/time for details. Replacements tab (9) The <Replacement> tab offers options for the replacement of certain elements of the date/time object.
Page 308 Page 306 Job Editor Group 8 Extern text object (6) Pushing the <Extern Text> button (6) will insert a {e} symbol (15) at the current cursor position within the <Content> display field (2). There will also be displayed an additional tab on the tab bar of the <Object Settings> dialog box: Extern text tab (14) On the <Extern Text>...
Page 309: Figure 163 Bar Codes: Insert Objects
Group 8 Job Editor Page 307 Figure 163 Bar codes: Insert objects 1 – <Bar code> tab 10 – <Date/Time> tab 2 – <Content> display field 11 – {t} symbol for <Date/Time> object 3 – <Insert> section 12 – <Counter> tab 4 –...
Page 310: Bar Code Settings: Function
Page 308 Job Editor Group 8 8.7.1.4.3 Bar code settings: <Inverse> function It is possible to print all kind of barcodes inverted. To change a barcode into an inverted barcode you have to check the respective check box in the barcode menu. Figure 164 Inverted bar codes Differences between non-inverted and inverted barcode...
Page 311 Group 8 Job Editor Page 309 Global <Inverse> Bar code <Inverse> Option 1 Option 2 Option 3 Option 4 The global <Inverse> function affects the bar code as well as the plain text. The bar code <Inverse> function only affects the bar code. The following previews show the results of the different settings.
Page 312: Date/Time Object
Page 310 Job Editor Group 8 8.7.2 Date/time object Provides the implementation of date and time specifications and the settings for the font parameters, the display options and an expiry time. Furthermore it is possible to generate accordant replacements (numbers, letters or designations) for the date- and time values in order to get an operating-specific display or coding of the specifications.
Page 313 Group 8 Job Editor Page 311 Description of the date/time settings The display field (1) shows the content. The content is created with the buttons 2- 7 and 12-13. Additionally there are a check box for adjusting the left-hand zeros (8) and control buttons for deleting (11) and the cursor control (14) within the display field (1).
Page 314 Page 312 Job Editor Group 8 Date A calendar date is set by using the date setting buttons (4). For date setting the same is true as for time setting. Because there are no restrictions regarding the content and the order it is also possible to mix date and time like shown in the following examples: ...
Page 315 Group 8 Job Editor Page 313 F2897 (7) Displayed as “f” in the display field. The <F2897> function is a special date-coding F2897 is code that shows the current for US pipe manufacturers. It is a specific US- Julian date and the last 2 digits of the current year as a 3 digit alphanumerical guideline to convert the 5 digit date code expression.
Page 316: Insert Date- And Time Specifications
Page 314 Job Editor Group 8 Example 2: The day of the production is: 31 March 2012 The expiry date shall be: 15 months The regular result of the final date would be the 31 June 2013. Due to the fact that this day not exists, the printer will print 01.
Page 317: Figure 166 Print Elements (Date/Time Input (Part 1)
Group 8 Job Editor Page 315 Note: For a new object the input fields <Position X/Y> (6) shows automatically the next possible position for the object after an already existing object. The first object within a job will have the position X=2 and Y=1. For adjusting the position of a selected object you can use the input fields for the x and y position (6).
Page 318 Page 316 Job Editor Group 8 Point 3  Now change to the <Date/Time>.  Press the following buttons (10-13) to create the required date format input: „Day“  „/“  „Month“  „/“  „Year 2014“ The display field <Content> (8) shows a preview of the date format. ...
Page 319: Figure 167 Print Elements (Date/Time Input (Part 2)
Group 8 Job Editor Page 317 Figure 167 Print elements (Date/time input (Part 2) Select Date/Time object Example – Global objects settings Select “days” from the drop- down menu Set the number of days stepwise with the arrow keys Example – date settings The created date object in the editing window of the job editor.
Page 320 Page 318 Job Editor Group 8 Point 4  Set the requested expiry date of 15 days. The setting can be carried out stepwise with the arrow keys (18) by clicking in the display field of the <Expiry Date Offset> section which will open a number keypad (19) for input.
Page 321: Carry Out Replacements
Group 8 Job Editor Page 319 8.7.2.2 Carry out replacements Further more accordant substitutions (numbers, letters or designations) for the date- and time values can be generated on the tab <Replacements> to get an operating- specific display or coding of the specifications. INFORMATION You will find further information regarding the execution of substitutions in the chapter 8.8 Replacements...
Page 322: Counter Parameter
Page 320 Job Editor Group 8 8.7.3.1 Counter parameter On the <Counter> tab the basic counter settings are defined. Figure 168 Print elements: counter settings 1 – <Counter> tab 10 – Tab bar <Object settings> 2 – Display field <Counter digits> 11 –...
Page 323: Number Of Digits
Group 8 Job Editor Page 321 8.7.3.1.1 Number of digits The setting defines the number of digits of the counter. The maximum input is 10 digits. The set value is shown on the accordant display field. 8.7.3.1.2 Start value The setting defines the start value of the counter. The maximum input is 10 digits. After reaching the end value the counter will be reset to the start value.
Page 324: End Value
Page 322 Job Editor Group 8 8.7.3.1.4 End value The setting defines the end value of the counter. The maximum input is 10 digits. After reaching the end value the counter will be reset to the start value. The set value is shown on the accordant display field. 8.7.3.1.5 Leading zeros (Left-hand zeros) With this function the display of the leading zeros of a counter are turned on or off.
Page 325: Counting Direction
Group 8 Job Editor Page 323 8.7.3.1.8 Counting direction This setting controls the direction of the counting process.  Counting direction forward: If this check box is activated the counter will be incremented (+).  Counting direction backwards: If this check box is activated, the counter will be decremented (-).
Page 326: Counter Increment (Methods)
Page 324 Job Editor Group 8  Reset2 on X4: The reset happens by an external supplied signal on the X4 interface. The actual input has to be assigned in the I/O Settings dialog box (Settings – I/O Settings – Inputs) ...
Page 327: Don't Print Function
Group 8 Job Editor Page 325 8.7.3.1.12 <Don’t print function> With the check box <Don’t print> on the <Counter> tab selected the counter object will not be printed. The counter will work in the background and the counter object will not be displayed in the WYSIWYG preview of the main window. In the job editor a <Don’t print>...
Page 328: Global Counter
Page 326 Job Editor Group 8 8.7.3.1.13 Global counter With the check box <Global counter> on the <Counter> tab selected the counter object will be declared as <Global counter>. Within a print job only one counter can be declared as <Global counter>. The counter reading is stored in a special memory register and it is available in all print jobs.
Page 329: Shift Code
Group 8 Job Editor Page 327 8.7.4 Shift code Provides the integration of a text element which is printed in predefined periods (shift times) as well as a definition of the accordant parameters. Note: The changing text can be also combined with other printing elements which will not change by the predefined periods (only the „shift-defined“...
Page 330: Set Up Shift Times And Integrate Shift Codes In Print Outs
Page 328 Job Editor Group 8 8.7.4.2 Set up shift times and integrate shift codes in print outs Example: A shift code should be written additionally to an existing fix text „xxx“. In the first shift (early shift) at 6.15 am „xxx 001“. In the second shift (late shift) at 12.15 pm „xxx 002“.
Page 331: Figure 173 Print Elements - Shift Code Set Up
Group 8 Job Editor Page 329 Figure 173 Print elements - Shift code set up Example: Input shift code 1 Example: Display shift 2 Depends on the current time 1 – Drop-down menu <Insert> 9 – Selected (marked) time block 2 –...
Page 332: Remove Shift Times
Page 330 Job Editor Group 8  Carry out the inputs („002“ and „003“) accordingly for the further shift codes.  Press the button <OK> (14) to take over the input and to close the dialog box or press the button <Cancel> (13) to leave the dialog box without saving the inputs to take over the input and to close the dialog box.
Page 333: Extern Text
Group 8 Job Editor Page 331 8.7.5 Extern Text With the <Extern Text> object it is possible to use external text files as a data source for the print-out. There are three options for using the external data: 1. A fixed length character string shall be transferred either via a RS232 or Ethernet connection.
Page 334 Page 332 Job Editor Group 8 Interface settings With the JET3up interface setting <Extern Text for serial interface> and <Extern Text for Ethernet interface> the JET3up printer does not expect any control characters. Each character sent will be interpreted as data. This will also be true for control characters like <line feed>, <form feed>...
Page 335: Extern Text: Fixed Length
Group 8 Job Editor Page 333 8.7.5.1 Extern Text: fixed length 8.7.5.1.1 Extern Text: fixed length – Interface settings See figure 175 Open the dialog box for the interface settings from the main window of the printer: <Extra> - <Interface setting> (1). The dialog box (2) for the interface settings offers several options.
Page 336: Figure 175 Extern Text - Interface Settings
Page 334 Job Editor Group 8 Figure 175 Extern Text – Interface settings Extern Text for serial interface Extern Text for Ethernet interface 1 – Menu item <Interface Settings> 10 – Selection <Baud rate> 2 – Dialog box <Interface Settings> 11 –...
Page 337: Extern Text: Fixed Length - Object Creation And Properties
Group 8 Job Editor Page 335 8.7.5.1.2 Extern Text: fixed length – Object creation and properties See figure 176 In the job editor you can create an <Extern Text> object either with the <Insert> drop-down menu (1) or with the direct button (shortcut) for <Extern Text> (2). This will open the dialog box for the object settings (3).
Page 338 Page 336 Job Editor Group 8 Example: diagrams with and without double prints checked With double prints not checked there With double prints checked there will will be a printout with each PrintGo be only one print-out with each PrintGo signal.
Page 339 Group 8 Job Editor Page 337 Example for <Character offset> and <Wildcards>: Set wildcards: Set offset: Display in the print preview of the main window as long as there were no data received: Received data: Used data (regarding the offset (O) and the wildcards (W)): 1 (O) 2 (O) 3 (O)
Page 340: Figure 176 Extern Text Fixed Length - Object Settings
Page 338 Job Editor Group 8 Figure 176 Extern Text fixed length – Object settings 1 – Menu item <Extern Text> 12 – Offset indicator/setting 2 – Direct button <Extern Text> 13 – Button <OK> 3 – Dialog box <Object settings> 14 –...
Page 341: Extern Text: Fixed Length - Printout/Deleting The Input Buffer
Group 8 Job Editor Page 339 8.7.5.1.3 Extern Text: fixed length – Printout/Deleting the input buffer There can be up to 32 <Extern Text> objects within a print job. For each object you can define the number of wildcards and the offset separately. But nevertheless all <Extern Text>...
Page 342 Page 340 Job Editor Group 8 Example print-out: This example is based on a print job with three <Extern Text: fixed length> objects. Each object has different settings for wildcards and offset (abbreviated: OS). The character string 12ab345 shall be transmitted. The settings for each <Extern Text: fixed length>...
Page 343 Group 8 Job Editor Page 341 The current display buffer will be printed with each PrintGo signal received unless you have selected the <Check Double Prints> option. With the <Check Double Prints> option activated you will receive an error message when a PrintGo signal occurs before a new character string was received. So it is granted that each character string is only printed once.
Page 344 Page 342 Job Editor Group 8 Tables for the example Buffer position Shifting Data direction Display buffer Input buffer Display buffer Input buffer Display buffer Input buffer Display buffer Input buffer Display buffer Input buffer Display buffer Input buffer Display buffer Input buffer Object 1 param.
Page 345: Extern Text: Variable Length
Group 8 Job Editor Page 343 8.7.5.2 Extern Text: variable length 8.7.5.2.1 Extern Text: variable length – Interface settings The interface settings for an extern text of variable length are the same as for the extern text with fixed length. INFORMATION Please see chapter 8.7.5.1.1 Extern Text: fixed length –...
Page 346 Page 344 Job Editor Group 8 Setting for double prints With the check box checked off (10) each received character string will only be printed once. In case there is another PrintGo signal received before any new data were received the printer will switch to <Print Stop>: the green <Print Start> button switches off and the red <Print Stop>...
Page 347 Group 8 Job Editor Page 345 All characters following the <Start symbol> in the transmitted string will be written into the input buffer until a <End symbol> is received. If another <Start symbol> is received before the <End symbol> was received the current input buffer content will be discarded and the filling of the buffer will start again.
Page 348 Page 346 Job Editor Group 8 Wildcards There is an indicator which shows the current number of wildcards (19) and a display field for inputs (20). When you place the cursor in the display field a keyboard for data inputs is displayed (21). In the event of modifications of the number or the kind of the wildcard character (23) the indicator (22) will be updated immediately.
Page 349: Figure 177 Extern Text Variable Length - Object Settings
Group 8 Job Editor Page 347 Figure 177 Extern Text variable length – Object settings 1 – Menu item <Extern Text> 14 – Respective character to the decimal ASCII value of the <Start symbol> 2 – Direct button <Extern Text> 15 –...
Page 350: Extern Text: Variable Length - Printout/Deleting The Input Buffer
Page 348 Job Editor Group 8 8.7.5.2.3 Extern Text: variable length – Printout/Deleting the input buffer There can be up to 32 <Extern Text> objects within a print job. For each object you can define the number of wildcards and the offset separately. But nevertheless all <Extern Text>...
Page 351 Group 8 Job Editor Page 349 Object 2: Wildcards: YYYYY 5 wildcards 1 offset Offset: Sum of wildcards and offset: Start symbol: End symbol: Object 3: Wildcards: 3 wildcards 6 offset Offset: Sum of wildcards and offset: Start symbol: End symbol: The input buffer in this example has the size of 9 characters because the largest sum of wildcards and offset is 9.
Page 352 Page 350 Job Editor Group 8 The current display buffer will be printed with each PrintGo signal received unless you have selected the <Check Double Prints> option. With the <Check Double Prints> option activated you will receive an error message when a PrintGo signal occurs before a new character string was received. So it is granted that each character string is only printed once.
Page 353 Group 8 Job Editor Page 351 Tables for the example <Start symbol> <End symbol> Used data x x x G a b c 1 2 3 4 5 6 S x x x Received character string Discarded Discarded characters characters Description Data transfer Input buffer/Size:...
Page 354: Extern Text Mailing
Page 352 Job Editor Group 8 8.7.5.3 Extern Text Mailing 8.7.5.3.1 Extern Text Mailing – Creating a data file See figure 178 To create a data file for the <Mailing> function the JET3up_Mailing-File-Converter software application is needed. This software application standardizes *.txt formatted files and converts them into *.ljd formatted data files for the JET3up printer.
Page 355: Figure 178 Extern Text Mailing - Creating A Data File
Group 8 Job Editor Page 353 Figure 178 Extern Text Mailing – Creating a data file Export Spreadsheet: export to tab Text editor: create a tab separated *.txt file separated *.txt file Available options during the saving procedure. JET3up Mailing File Converter Save-as dialog box of the JET3up user interface.
Page 356: Extern Text Mailing - Database Settings
Page 354 Job Editor Group 8 8.7.5.3.2 Extern Text Mailing – Database settings See figure 179 Firstly you have to connect the USB stick to the USB port of the JET3up printer. In the next step you will have to set the parameter for the database. The database settings are an option of the <Extra>...
Page 357: Extern Text Mailing - Object Creation And Properties
Group 8 Job Editor Page 355 8.7.5.3.3 Extern Text Mailing – Object creation and properties See figure 180 Basically a <Mailing> object is a special kind of <Extern Text> object. INFORMATION Please see chapter 8.7.5.1.2 Extern Text: fixed length – Object creation and properties for details about how to create an object and enter the global settings for an object.
Page 358: Figure 180 Extern Text Mailing - Mailing Object Settings
Page 356 Job Editor Group 8 Expample <Fieldnumber> 1. Field 4. Field 2. Field 3. Field A – Text editor with *.txt file D – Three wildcards for a field with four characters B – Data set with four fields E –...
Page 359: Mailing - Printout
Group 8 Job Editor Page 357 8.7.5.3.4 Mailing – Printout See figure 181 If there are <Mailing> objects in the current print job you will see the placeholders in the print preview of the main window (1) as long as there was no print-out. If you press the green <Print Start>...
Page 360: Figure 181 Extern Text Mailing - Printout
Page 358 Job Editor Group 8 Figure 181 Extern Text Mailing – Printout 1 – <Wildcards> for <Mailing> objects 8 – <OK> button 2 – <Print start> button not activated 9 – Preview of the used data fields 3 – <Data base settings> dialog box 10 –...
Page 361: Replacements
Job Editor Page 359 Replacements The <Replacements> function LEIBINGER JET3up offers the possibility to exchange date- and time specifications as well as counters by replacements (figures, letters or designations). Thereby you can get an application-specific display or coding of the information. The definitions of the replacements are carried out on the respective <Replacements>...
Page 362: Figure 182 Job Editor (Tab Replacements)
Page 360 Job Editor Group 8 IMPORTANT The resetting of the replacements has only effects on the selected printing element! The replacement function is always active and therefore the default settings are active as long as there are no customized settings! E.g.
Page 363: Carry Out Replacements
Group 8 Job Editor Page 361 8.8.1 Carry out replacements Proceeding: Example 1: The default month specifications of a date object (1 = 01; 2 = 02, … 7 = 07, etc.) should be replaced by short names (1 = JAN, 2=FEBR ... 7=JUL….). ...
Page 364: Figure 183 - Job Editor: Carry Out Replacements Example 1
Page 362 Job Editor Group 8 Figure 183 Job editor: Carry out replacements - Example 1 1 – Menu item <Format>-<Object> 10 – Open keyboard 2 – Original date object 11 – Change settings 3 – Direct button <Object settings> 12 –...
Page 365 Group 8 Job Editor Page 363 Proceeding: Example 2: The actual counter reading of a counter object should be replaced with code. For this each figure of the counter reading is replaced by another figure. The following table shows the coding and an example. Code Table Examples Orig.
Page 366: Figure 184 - Job Editor: Carry Out Replacements - Example 2
Page 364 Job Editor Group 8 Figure 184 Job editor: Carry out replacements – Example 2 1 – Menu item <Format>-<Object> 10 – Open keyboard 2 – Original counter object 11 – Change settings 3 – Direct button <Object settings> 12 –...
Page 367: Malfunctioning/Trouble Shooting
 Protective equipment is necessary! Read the safety data sheets and the personal protective equipment rules and regulations! 9.2 Display of device messages The LEIBINGER JET3up generates two kinds of device messages. The warning messages and the error messages. Warning messages: Shows a critical device condition which requires an intervention of the operating staff in the foreseeable future.
Page 368: Error Messages
Each error message can be identified by an error number. The error number is important in case the service company has to be contacted. A list with all error messages is available on request. Please contact your LEIBINGER dealer for details.
Page 369: Setting-Up/Maintenance
Group 10 Setting-up/Maintenance Page 367 10 Setting-up/Maintenance 10.1 Refilling of ink and solvent –TAG handling 10.1.1 Safety information WARNING Danger of explosion!  Before filling the device with the consumables, measures for the electrostatic discharge have to be made! The operator can carry out a discharge either by the direct touching of the JET3UP-cabinet or by standing with the appropriate ESD-shoes on an grounded surface! WARNING...
Page 370 Page 368 Setting-up/Maintenance Group 10 For correct handling the LEIBINGER re-filling system allows an odor- and splash free refilling of the consumables. ATTENTION The reservoir tanks should be not overfilled, that means a re-filling should be only carried out if a certain message has been generated by...
Page 371: Tag-Reader
Page 369 10.1.2 TAG-reader The TAG-reader of the Leibinger JET3up printer guarantees a faultless function with regard to the correct usage of ink and solvent. The TAG-reader makes sure that only ink and solvent is used that is approved by LEIBINGER.
Page 372 Page 370 Setting-up/Maintenance Group 10 When you ignore this message the printer will shut down after the time indicated. Information Hints Ink and solvent numbers shown in the following illustrations are only examples and may vary depending on the type of printer. 1.
Page 373 Group 10 Setting-up/Maintenance Page 371 Open <Info> pages Check types of ink and solvent 3. The TAG reader can be used in order to check whether a suitable ink or solvent is used. Place the bottle in with the (risk) label right in front of the TAG-reader. Check types of ink and solvent with the TAG reader of the JET3up Solvent The scanned information will be shown on the touch display.
Page 374 Page 372 Setting-up/Maintenance Group 10 4. If a wrong ink or solvent type was recognized by the TAG reader this ink or solvent mustn’t be used for refilling.The printer displays one of the following messages: 5. A TAG can only be activated once. In case a bottle already activated is recognized by the TAG reader a respective message pops up: 6.
Page 375 Solvent TAG activation not successful: successful: It is possible that a TAG may be damaged by a failed activation and therefore it is not recognized by the TAG reader anymore. In that case please contact your LEIBINGER dealer. JET3up Release R1.06...
Page 376 Page 374 Setting-up/Maintenance Group 10 9. If the ink or solvent type is compatible and the bottle was successfully activated the filling can be carried out as described in the following steps. Caution Inflammable (Risk of fire)! Combustible gases and liquids cause serious burns. Sources of ignition must be kept away from the device! Attention Before the filling process a static discharge is mandatory! For this you...
Page 377 Group 10 Setting-up/Maintenance Page 375 Example: Solvent refill bottle in screwed on position Screw the still sealed re-fill bottle on the corresponding reservoir tank. The seal of the bottle will be breached while the bottle is screwed on the tank, the closing valve of the tank will open automatically and the reservoir tank is filled up.
Page 378: Daily Servicing Work
It is strongly recommended using only genuine LEIBINGER spare parts and wearing parts. Only by this a safe and accurate operation is ensured. LEIBINGER offers a wide range of spare parts and wear and tear parts. Please ask your local LEIBINGER dealer for details.
Page 379: Other Servicing Work
REPLACEMENT OF BATTERY This work must only be carried out by trained personnel or by Leibinger service technicians! The battery is situated in the electronics housing on the controller board. If necessary the battery must be replaced. For the change of the battery you have to...
Page 380: Pressure Regulator Valve
Page 378 Setting-up/Maintenance Group 10 Safety- and disposal instructions Please only replace with the same battery or with a comparable Danger of type of battery according to the recommendation of the explosion manufacturer! Pay attention to the correct polarity (+/-)! Do not throw battery into fire! Do not load battery again! Do not use conductive tools to change the battery!
Page 381: Cleaning
In this respect high release of solvent vapors should be avoided through the economical use of Leibinger solvent (corresponding to the Leibinger ink). This is achieved through applying the Leibinger solvent to fluff-free paper with the spray bottle and wiping off the parts to be cleaned with this.
Page 382: Grounding Regulation For Print Head Cleaning
Discharging the ink into a service tray Print head Fire hazard Service tray Leibinger Cleaning station Explosion hazard Ground cable Connect print head...
Page 383: Taking Out Of Operation/Dismantling
Finally you have to cleanse the device of dirt, ink rests etc. as described in the chapter Cleaning. 11.2 Dismantling/Disposal The LEIBINGER JET3up has been developed and built with materials that ensure problem-free dismantling and disposal. When dismantling, the information in the service documentation as well as the respective country specific disposal regulations (e.g.
Page 384: Appendix
Page 382 Appendix - Connection Examples for the Interfaces Group 12 12 Appendix 12.1 Circuit diagrams of the interfaces Interface X1 (Encoder) Interface X5 (PrintGo) Release R1.06 JET3up...
Page 385 Group 12 Appendix - Connection Examples for the Interfaces Page 383 Interface X2 (RS232 – Serial Interface) Internal existing stud between Pin 4 and Pin 6 Interface X4 (Digital inputs) JET3up Release R1.06...
Page 386 Page 384 Appendix - Connection Examples for the Interfaces Group 12 Interface X3 (Outputs) Release R1.06 JET3up...
Page 387: Connection Examples For The Interfaces
Group 12 Appendix - Connection Examples for the Interfaces Page 385 12.2 Connection examples for the interfaces The wiring examples which are described in the following are only for support. Other combinations, actuators, sensors and switching elements are of course possible and cannot be described completely here.
Page 388: Interface X 4 - Inputs
Page 386 Appendix - Connection Examples for the Interfaces Group 12 12.2.2 Interface X 4 - Inputs 12.2.2.1 Increment Counter Signal (PIN ) Mechanical switch or relay contacts are improper for the counter input because bounce processes at the switching contacts can cause faulty countings. 12.2.2.2 Reset Counter Signal - Example with pushbutton With internal supply With external supply...
Page 389: Jobselect Input - Example With Relay Contacts
Group 12 Appendix - Connection Examples for the Interfaces Page 387 12.2.2.3 Jobselect Input - Example with relay contacts With internal supply With external supply Note: Only Jobselect 0 and 1 are displayed. The same connection-schema is also possible for Jobselect 2 up to 9. JET3up Release R1.06...
Page 390: Inputs - Example With Pushbotton
Page 388 Appendix - Connection Examples for the Interfaces Group 12 12.2.2.4 Inputs - Example with pushbotton With internal supply With external supply Note: Only input 1 is displayed, the same goes also for input 2 up to 6 12.2.2.5 ON Input - Example with pushbotton Note: A switching option which works with the internal 24V supply (Pin 14) is not possible because it is not available at the plug in the OFF-status of the printer.
Page 391: Encoder Guidelines And "Hot-Plugging" Of External Devices
Group 12 Appendix - Encoder Guidelines Page 389 12.3 Encoder guidelines and “hot-plugging” of external devices Encoders (also called incremental encoder) are used for the dynamic capture of angles of shafts or to measure distances and speed information. They are based on a technology which converts mechanical movements like rotation or linear movement to electrical digital signals.
Page 392 Page 390 Appendix - Encoder Guidelines Group 12 If an „internal clock“ (internal encoder) is used, there will appear deviations in the print width if the speed of the product would vary! Original print adjustment oft he „print width“: Slower speed as the faster speed as the original adjustment: original adjustment:...
Page 393 Group 12 Appendix - Encoder Guidelines Page 391 Interfaces: The output signals (interfaces) of encoders are offered in different standards: Output Signals Technologie 24 Volt  two output signal => „A“ and „B“  isn‘t qualified for longer cable distances (maximum 10m) ...
Page 394 Page 392 Appendix - Encoder Guidelines Group 12 Connection of external devices on the printer: To protect the encoder and of course in a particular way the controller board of the printer, it is not allowed to plug and un-plug the connectors as long as the printer is switched on and connected to the main power supply.
Page 395: Technical Drawings
Group 12 Appendix - Encoder Guidelines Page 393 12.4 Technical drawings 12.4.1 Hydraulic diagram LJ 3up JET3up Release R1.06...
Page 396: Print Head Sk 6
Page 394 Appendix – List of illustrations Group 12 12.4.2 Print head SK 6 Release R1.06 JET3up...
Page 397: Print Head Sk 4 - Option
Group 12 Appendix – List of illustrations Page 395 12.4.3 Print head SK 4 - Option JET3up Release R1.06...
Page 398: Cabinet Lj
Page 396 Appendix – List of illustrations Group 12 12.4.4 Cabinet LJ Release R1.06 JET3up...
Page 399: List Of Keywords/Index
Group 12 Appendix – List of illustrations Page 397 List of keywords/Index access privileges ......161 capacity of device ......38 accident prevention character ........70 accidental release ......35 charge test ........171 environmental protection ....35 circuit diagram extinguishing agents .....
Page 400 Page 398 Appendix – List of illustrations Group 12 export ........178 rotating direction ......283 export log file ......178 source ........282 data storing ........69 types of encoder ......390 Database settings ......226 encoder parameter date..........128 date change offset .....
Page 401 Group 12 Appendix – List of illustrations Page 399 Database settings ...... 226 example of use ......72 explorer ........220 method of working ....... 69 graphic editor ......207 summary ........71 interface settings ....... 199 functions login ........195 activation ........
Page 402 Page 400 Appendix – List of illustrations Group 12 I/O signal test ......167 I/O-settings jet monitoring ....... 170 general ........154 inputs ........155 create new job lists ....100 outputs ........156 delete ........224 ICG-value ........251 edit current job ......
Page 403 ........252 orientation ........ 252 position ........233 printout options ......253 language ........126 Open Nozzle ........75 LEIBINGER Sealtronic ....145 open/close nozzle......75 lightning protection ......46 operating elements ......73 list of illustrations ......406 operating procedure load job to print ......
Page 404 Page 402 Appendix – List of illustrations Group 12 sensor monitoring....... 272 sensor monitoring – PrintGo length274 password activation ...... 165 StrokeGo Monitoring ....271 password deactivation ....165 print start control ....270, 276 Password function print stop ........189 change user ......
Page 405 Group 12 Appendix – List of illustrations Page 403 password ........147 Service work settings ........148 annual service work ....377 remote screen ......226 daily service work ...... 377 Remote screen ......147 spare parts ........ 377 replacements ....... 360 wear and tear parts ....
Page 406 Page 404 Appendix – List of illustrations Group 12 time zone ........131 Time/Date ........74 tabs ..........87 title bar ........73, 87 TAG handling ....... 368 touch calibration ......225 TAG-reader transport ........42 activation ......... 370 transportation safety devices .... 50 general ........
Page 407: List Of Illustrations
Group 12 Appendix – List of illustrations Page 405 List of illustrations Figure 1 – Safety sticker ..................20 Figure 2 – Labels for marking (ink/solvent) ............27 Figure 3 – Dimensions ..................36 Figure 4 – Movable underframe (Device support) ........... 42 Figure 5 –...
Page 408 Page 406 Appendix – List of illustrations Group 12 Figure 34 – Creating a new job list ..............101 Figure 35 – Menu bar Job list creator ..............106 Figure 36 ––Extern Joblist Example 1 – Extern Jobselect ........110 Figure 37 ––Extern Job select Example 2 - Extern Jobselect with distances ....
Page 409 Group 12 Appendix – List of illustrations Page 407 Figure 70 – Menu Service functions ..............165 Figure 71 – I/O –Signal test ................166 Figure 72 – Hydraulic-/printhead test menu ............168 Figure 73 – Printhead tab ................169 Figure 74 –...
Page 410 Page 408 Appendix – List of illustrations Group 12 Figure 106 – Explorer (Tools) ................222 Figure 107 – Explorer (Delete job) ..............223 Figure 108 – Touch-calibration ................. 224 Figure 109 –Open the <info> dialog box ............226 Figure 110 – Info dialog box – Page 1 ............... 227 Figure 111 –...
Page 411 Group 12 Appendix – List of illustrations Page 409 Figure 142 – PrintGo-distance ................266 Figure 143– PrintGo-repetitions ................ 267 Figure 144 – PrintGo - Holdoff distance ............. 268 Figure 145 – PrintGo-sourcesettings ..............269 Figure 146 – Controls - Monitoring functions ............270 Figure 147 –...
Page 412 Page 410 Appendix – List of illustrations Group 12 Figure 178 – Extern Text Mailing – Creating a data file ........353 Figure 179 – Extern Text Mailing – Database settings .......... 354 Figure 180 – Extern Text Mailing – Mailing object settings ........356 Figure 181 –...
