The following equipment is required to configure the ODU
system:
Windows based computer with an open Serial Port (RS-232 or
•
RS485)
Xicom's HPA Control Utility for Windows. Xicom PN 809-0007-001.
•
It is shipped on a CD with the amplifier manual.
Appropriate serial cable:
•
— A null modem serial cable for RS-232 interface
— A straight-through serial cable with a 232-to-485 adapter for the
RS-485 interface
Refer to Figure 30. Perform these steps to configure the ODU
system.
1. Connect the serial cable from the amplifier M&C connector to the
PC's communication port.
2. Run the HPA Control utility on the PC and connect to the
amplifier.

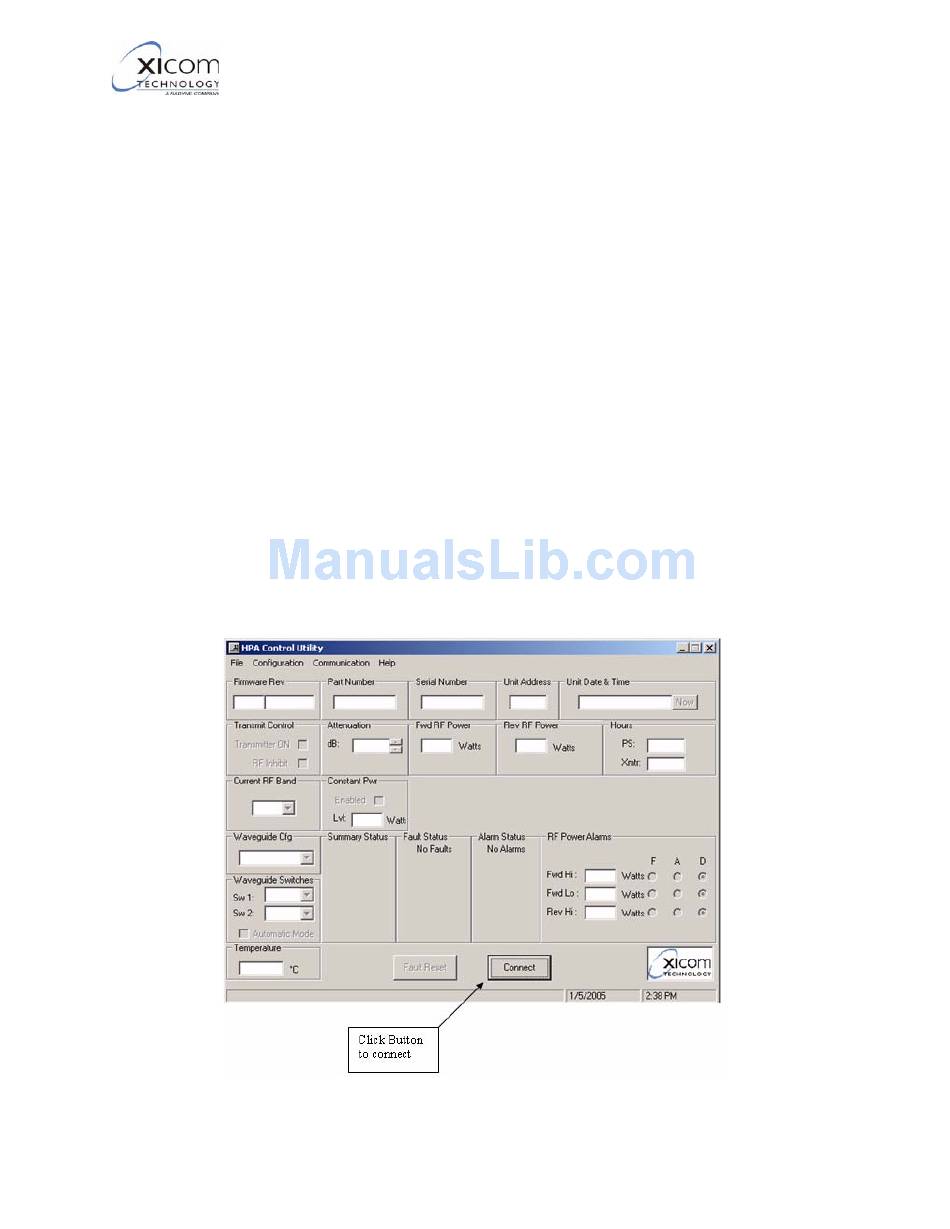

Figure 30, Connecting to Amplifier
27 of 34
Operation Addendum, HPA Control Utility
Revision A
