Operation Addendum, HPA Control Utility

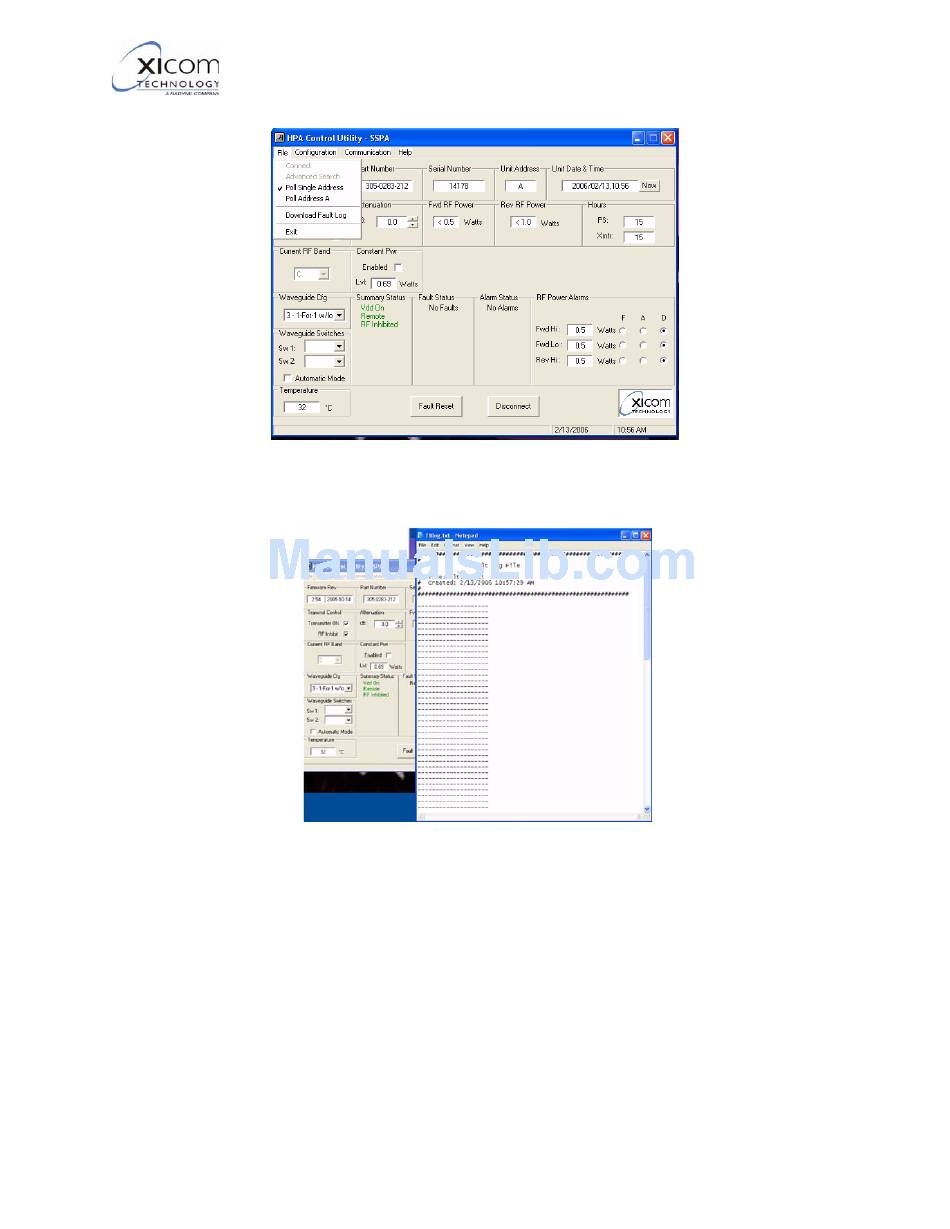

Figure 18, Primary User Interface – File Menu when connected
Figure 19, Display of Fault Log
4. Refer to Figure 20. The Amplifier Configuration menu allows the
configuration of the amplifier's COM ports, the startup
configuration, the Maximum power level, Ethernet configuration,
and the types of power units used for Forward Power, Reverse
Power, and the RF Power Alarms.
MNC-0000-041 18 of 34 Revision A
EAR EXPORT CONTROLLED: The information contained in this Manual refers or relates to a product that is subject
to the U.S. Export Administration Regulations (EAR). Transfer of data herein by any means to a Foreign Person,
whether in the U.S. or abroad, may require an export license from the U.S. Department of Commerce.
