Operation Addendum, HPA Control Utility

Overview

Utility Setup for TWTA Operation

MNC-0000-041
EAR EXPORT CONTROLLED: The information contained in this Manual refers or relates to a product that is subject
to the U.S. Export Administration Regulations (EAR). Transfer of data herein by any means to a Foreign Person,
whether in the U.S. or abroad, may require an export license from the U.S. Department of Commerce.
The Xicom HPA Control Utility is a program that has been
developed by Xicom Technology to provide a simple and flexible
control interface that runs on PCs using the Microsoft Windows
operating system.
Use the following procedure to setup and operate HPA Control
Utility for TWTA Operation.
1. Refer to Figure 1 on page 5 and Figure 2 on page 6. If this is the
initial time running the program, select "Connect" in the lower
center, or "File -> Connect" to scan the first 5 addresses used for
amplifiers. All baud rates will be tested for these amplifiers. If
you want to test ALL possible RS485 addresses, select "File ->
Advanced Search" and all possible addresses and baud rates
will be tested. This search will take much longer than the normal
"Connect" search as all possible baud rate, parity, and data bit
combinations are queried.

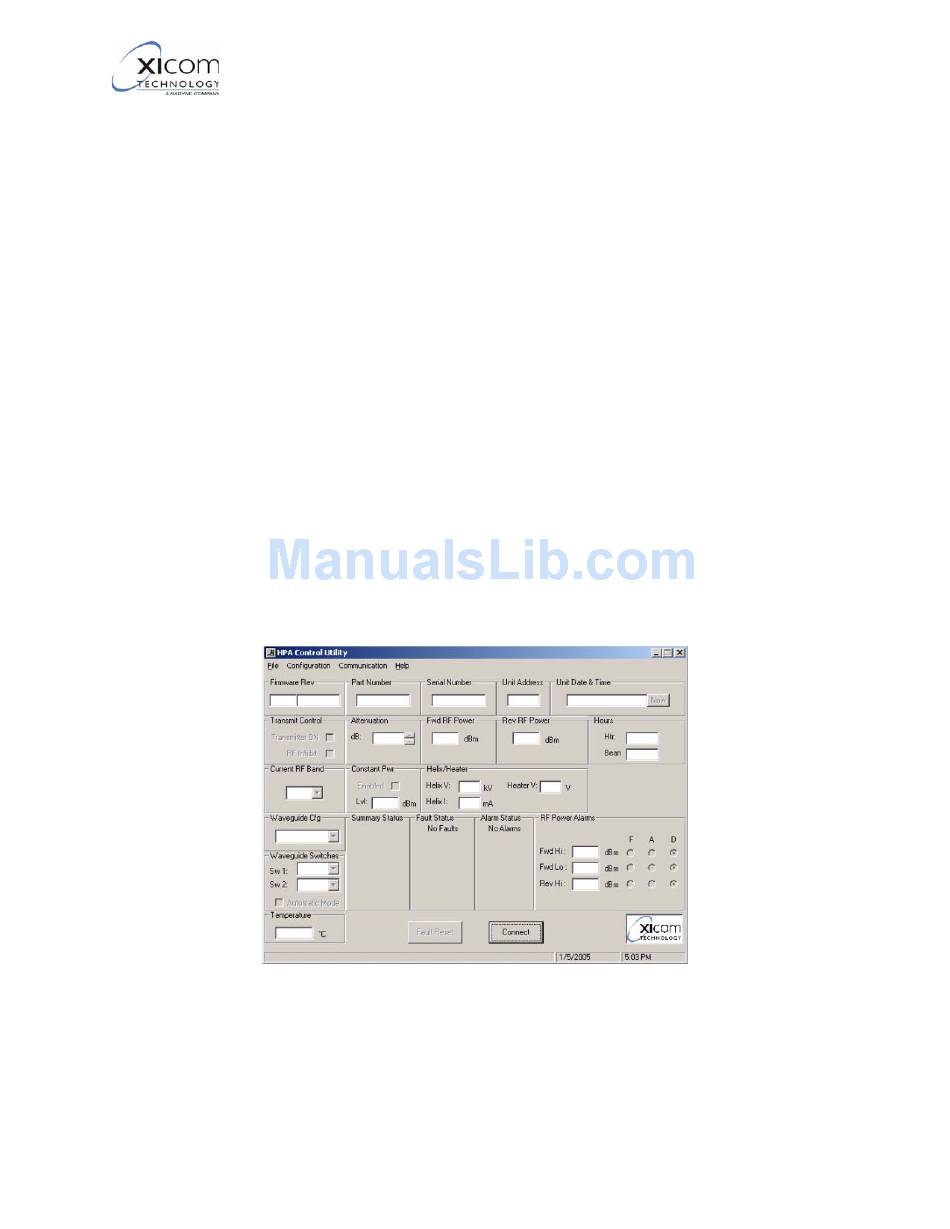

Figure 1, Primary User Interface - Disconnected
Operation Addendum, HPA Control Utility
5 of 34 Revision A
