Instruction Hardware Breakpoints

For ADSP-21160 DSPs, an instruction breakpoint occurs when an
instruction is executed within one of the specified address ranges. The
four individual instruction breakpoints are ORed to generate a single
instruction breakpoint condition.
Shown below is the Instruction page of the Hardware Breakpoints dialog
box, which permits the specification of four individual instruction
breakpoints.

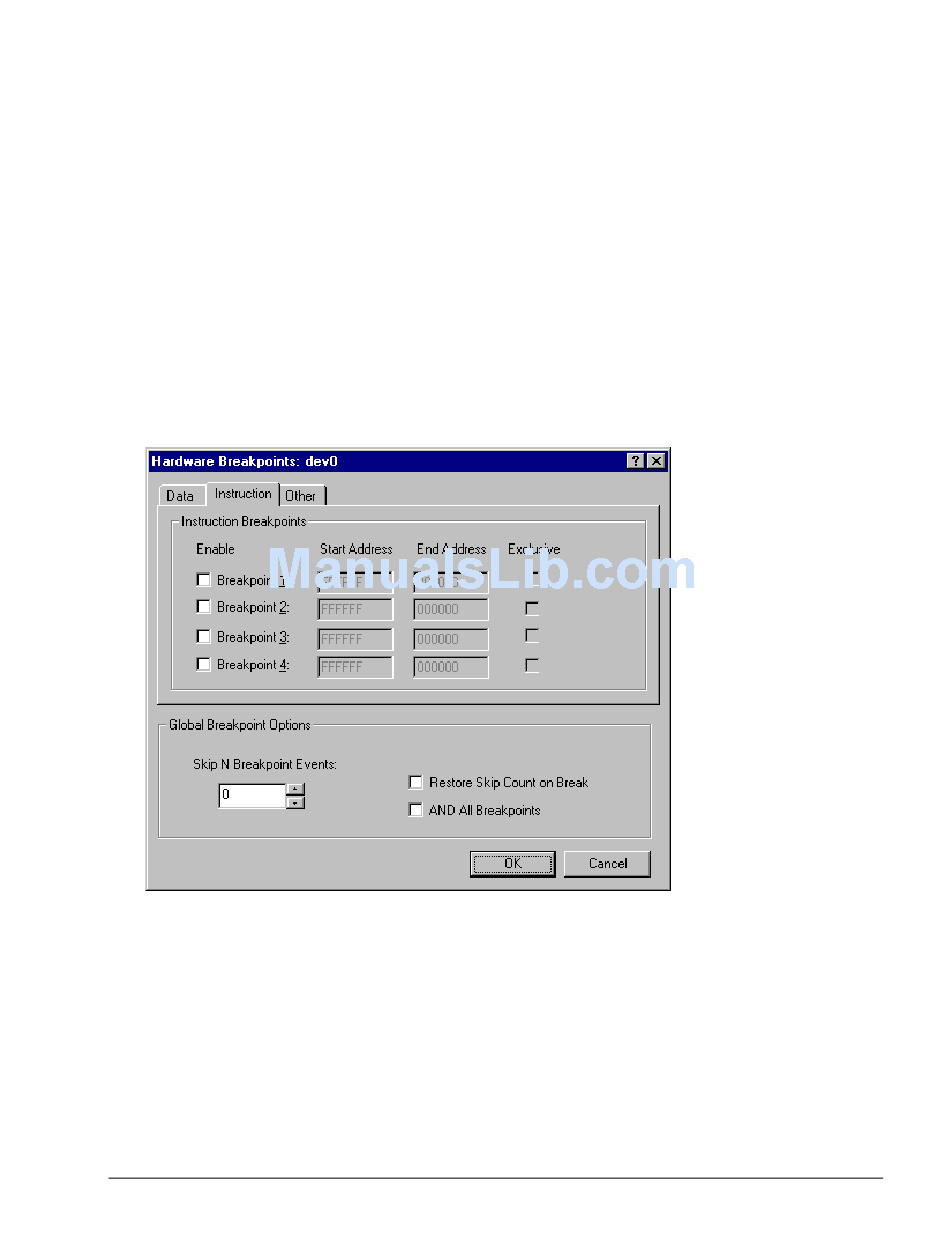

Figure 2-4. Instruction Page of Hardware Breakpoints Dialog Box
