Data Hardware Breakpoints

For ADSP-21160 DSPs, use data breakpoints to break on accesses to
internal memory, IOP registers, the external port (EP), and multiproces-
sor memory space (MMS).
The following actions trigger a data breakpoint:
• access
DAG1
• modifier access
DM()
The two data breakpoints are ORed to generate a single data breakpoint
condition.

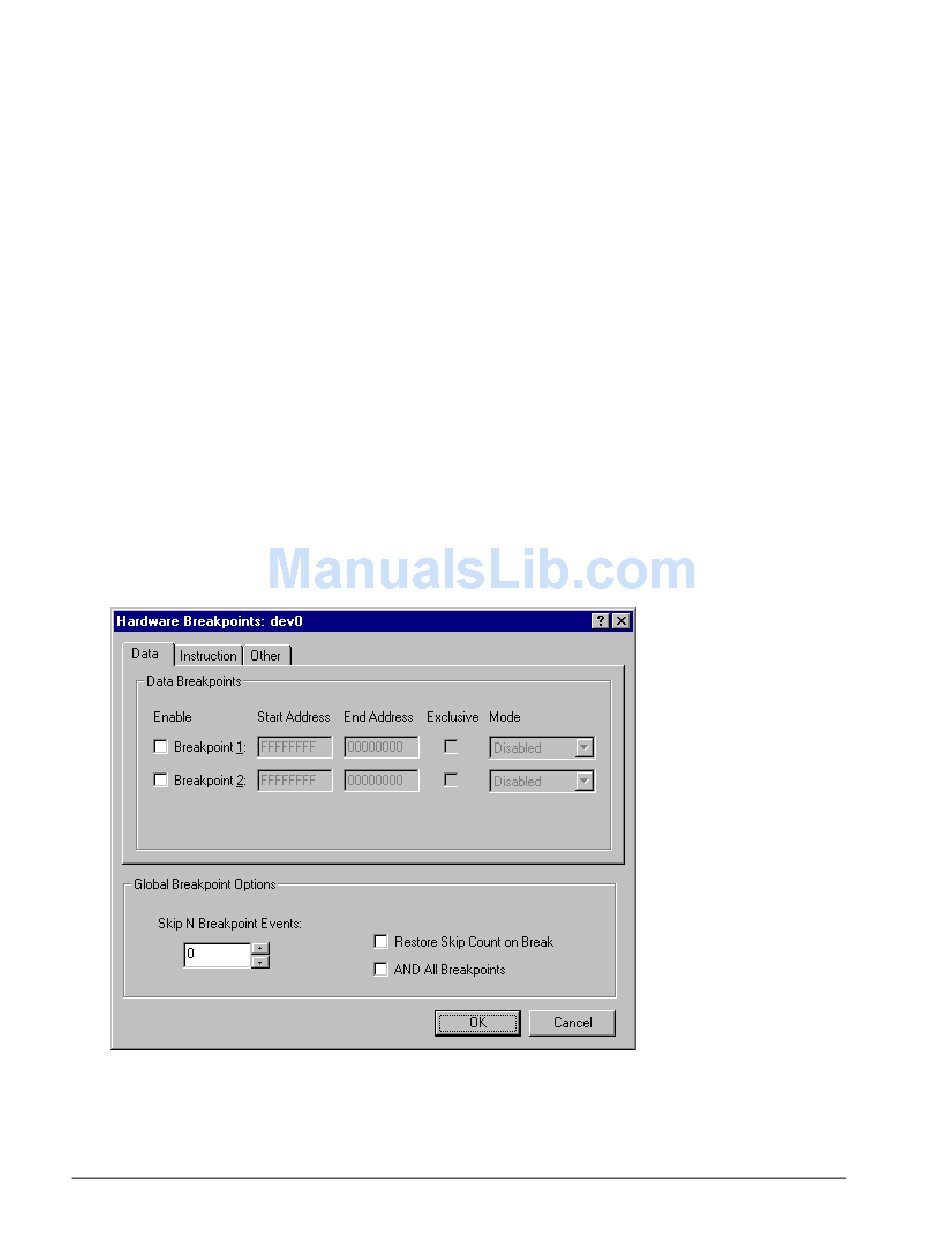

The Data page of the Hardware Breakpoints dialog box, which permits
the specification of two data breakpoints, is shown in
Figure 2-3. Data Page of Hardware Breakpoints Dialog Box
2-12 ADSP-21160 EZ-KIT Lite Evaluation System Manual
Figure 2-3.
