EVAL-AD7450A/EVAL-AD7451 Evaluation Board User Guide

GENERATING A WAVEFORM ANALYSIS REPORT

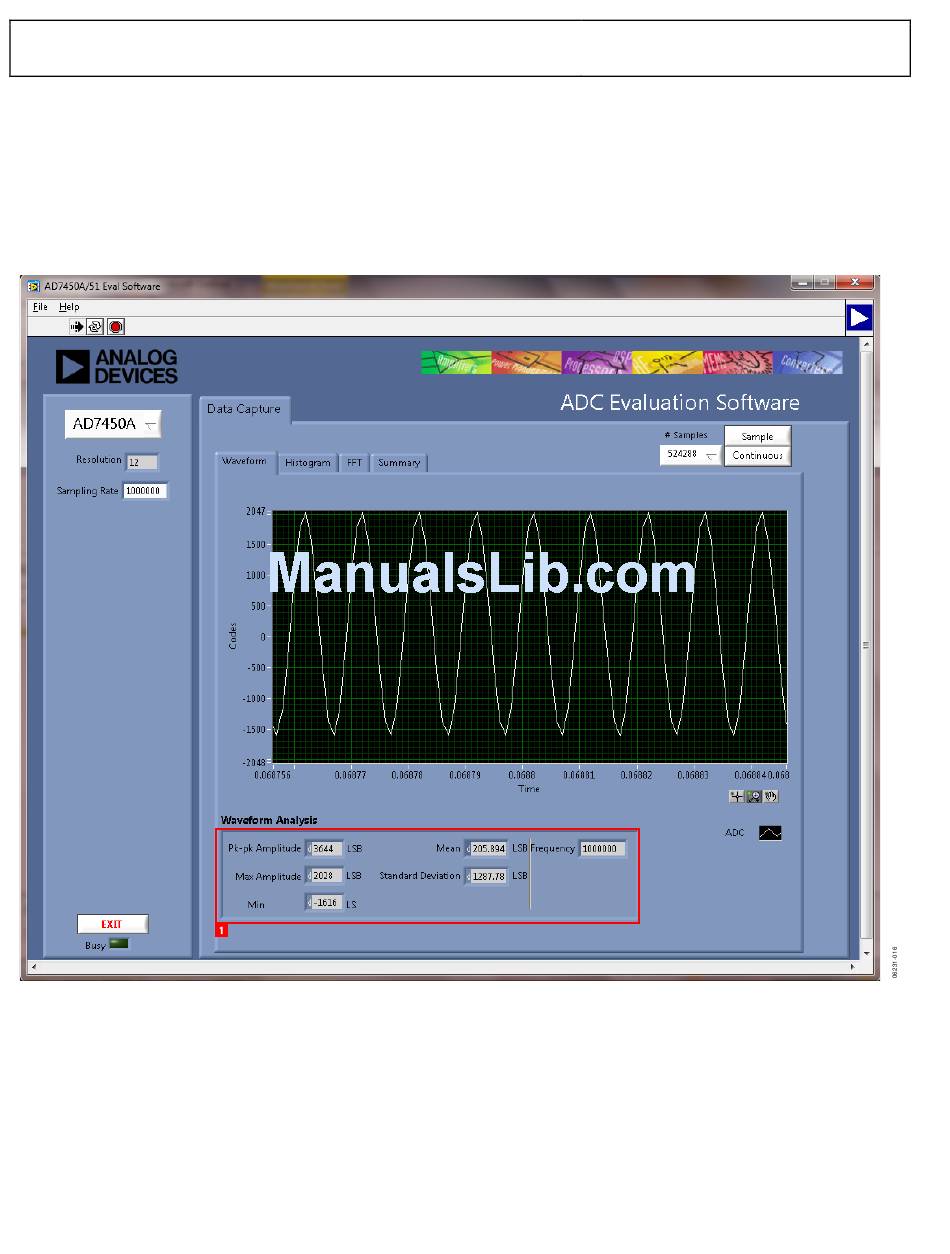

Figure 18 illustrates the waveform capture tab for a 100 kHz
sine wave input signal.
The Waveform Analysis area (labeled 1 in Figure 18) reports
the amplitudes recorded from the captured signal and the
frequency of the signal tone.
Figure 18. Waveform Tab
Rev. A | Page 16 of 28
