GENERATING A WAVEFORM ANALYSIS REPORT

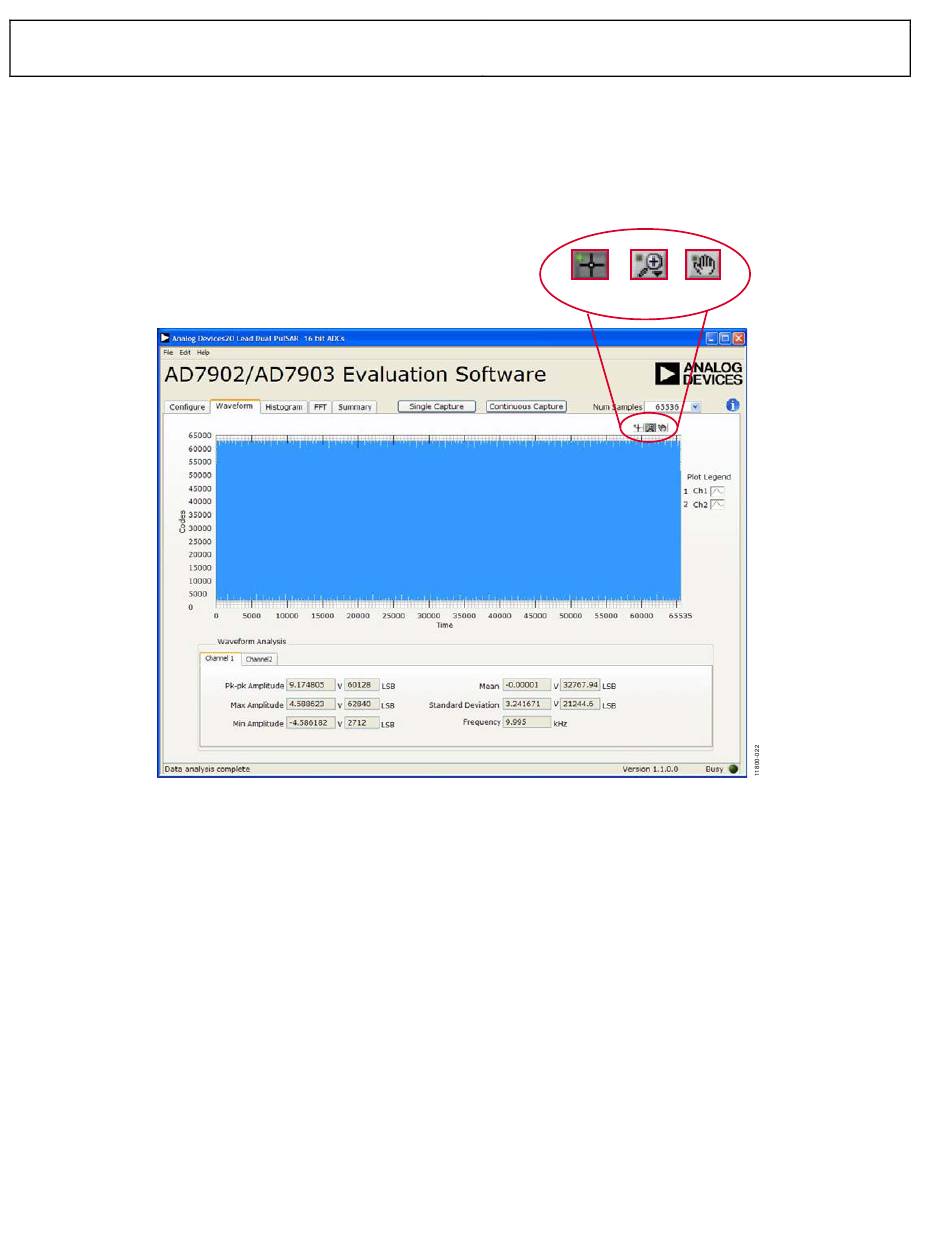

Figure 22 illustrates the Waveform tab for a 10 kHz sine wave
input signal when the on-board 5 V external reference is used.
The Waveform Analysis area (located toward the bottom of the
window) reports the amplitudes recorded from the captured signal
and the frequency of the signal tone. Select the Channel 1 tab
or Channel 2 tab in the Waveform Analysis area to view the
corresponding waveform.
CONTROL
CURSOR
Figure 22. Waveform Tab
Rev. 0 | Page 16 of 32
EVAL-AD7903SDZ User Guide
CONTROL CONTROL
ZOOMING PANNING
