EVAL-AD7405FMCZ User Guide

GENERATING A WAVEFORM ANALYSIS REPORT

Figure 16 illustrates the tab used for waveform capture.
Click Single Capture or Continuous Capture (labeled 1 in
Figure 16) to capture a number of samples from the ADC and
graph the resulting waveform.
Graph controls (labeled 2 in Figure 16) are located above the
graph and may be used pan and zoom into particular areas of
3
the graph (see the Graph Tools section and Figure 15 for more
information).
The Waveform Analysis area (labeled 3 in Figure 16)
shows statistics pertaining to the captured waveform such
as maximum, minimum, and mean amplitudes and signal
frequency.

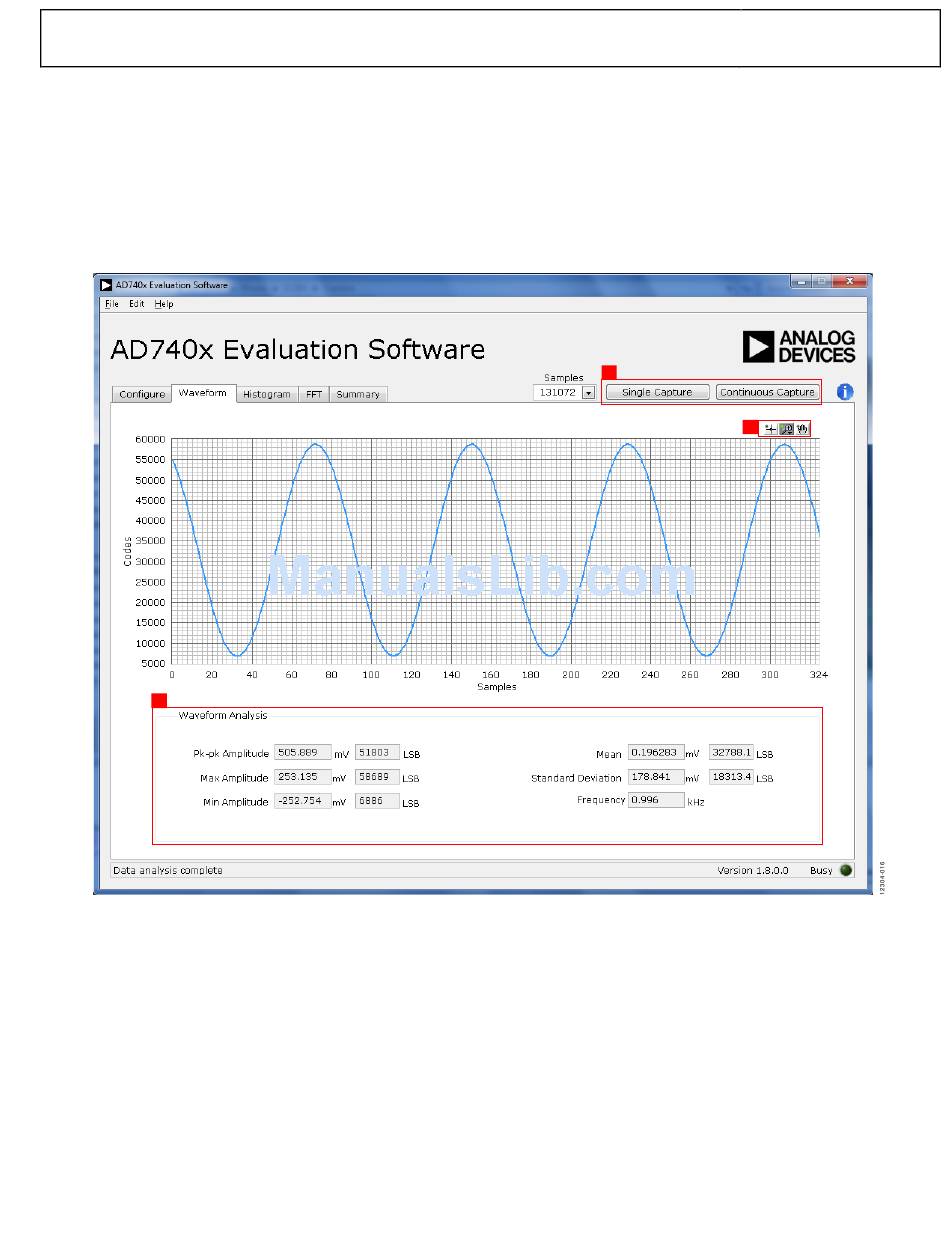

Figure 16. Waveform Capture Tab
Rev. 0 | Page 15 of 20
1
2
UG-690
