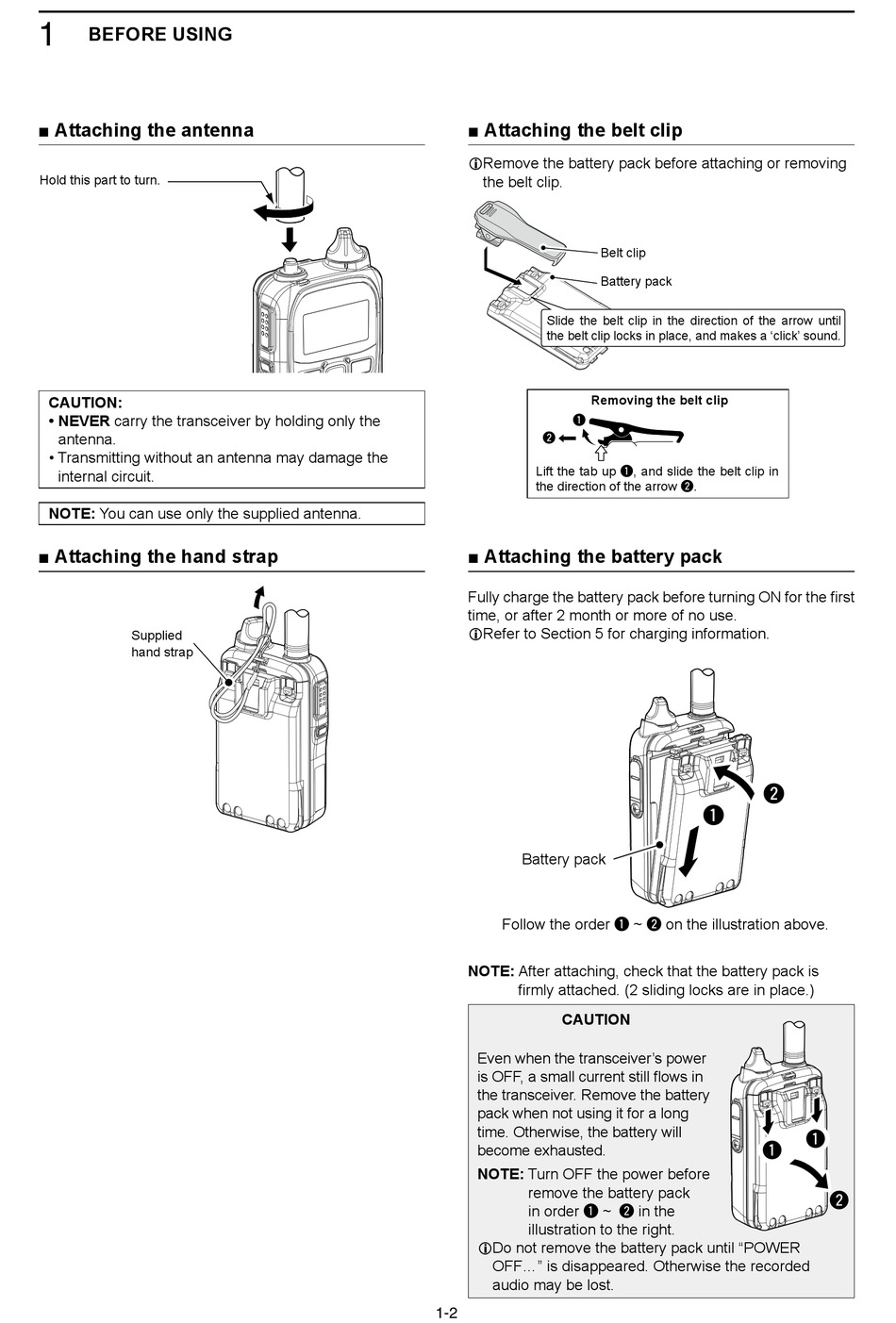

BEFORE USING

■ Attaching the antenna

Hold this part to turn.
CAUTION:
• NEVER carry the transceiver by holding only the
antenna.
• Transmitting without an antenna may damage the
internal circuit.
NOTE: You can use only the supplied antenna.

■ Attaching the hand strap

Supplied
hand strap

■ Attaching the belt clip

L Remove the battery pack before attaching or removing
the belt clip.
Belt clip
Battery pack
Slide the belt clip in the direction of the arrow until
the belt clip locks in place, and makes a 'click' sound.
Removing the belt clip
q
w
Lift the tab up q, and slide the belt clip in
the direction of the arrow w.

■ Attaching the battery pack

Fully charge the battery pack before turning ON for the first
time, or after 2 month or more of no use.
L Refer to Section 5 for charging information.
Battery pack
Follow the order q ~ w on the illustration above.
NOTE: After attaching, check that the battery pack is
firmly attached. (2 sliding locks are in place.)
CAUTION
Even when the transceiver's power
is OFF, a small current still flows in
the transceiver. Remove the battery
pack when not using it for a long
time. Otherwise, the battery will
become exhausted.
NOTE: Turn OFF the power before
remove the battery pack
in order q ~ w in the
illustration to the right.
L Do not remove the battery pack until "POWER
OFF..." is disappeared. Otherwise the recorded
audio may be lost.
